3d vacuum sublimation heat transfer printing machine for Eva slipper soles/Sandals surface

Specifications

Surface heat transfer printing of 3D abnormity products

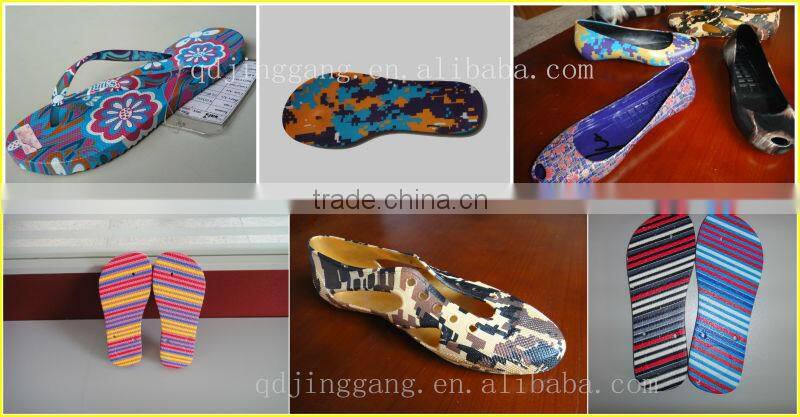

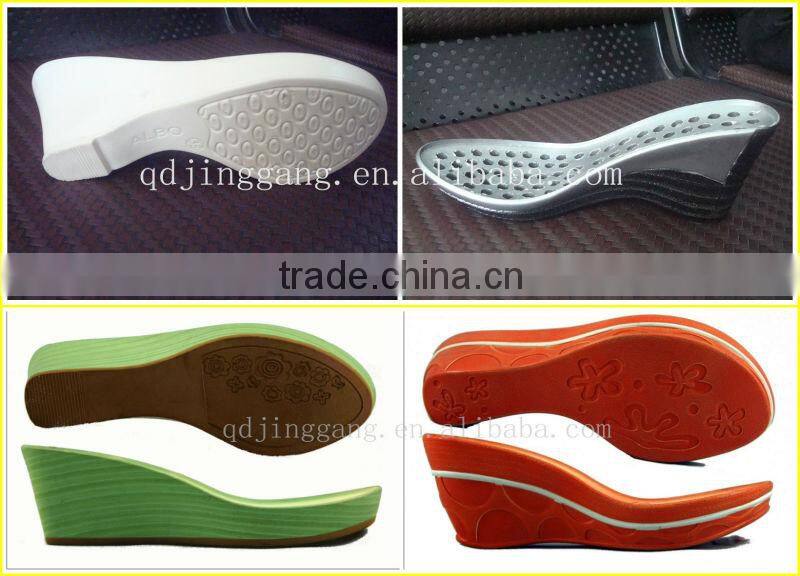

shoe sole,sandals surface,etc.
heat transfer printing elastic film

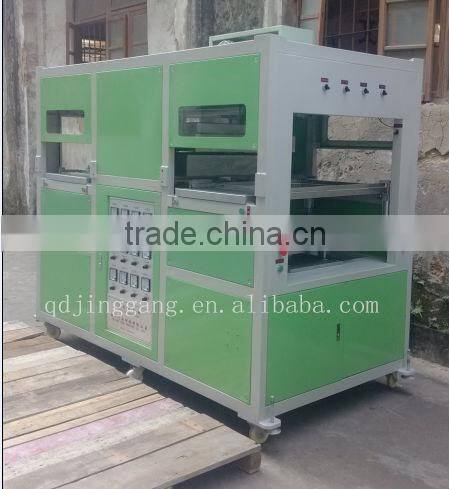

3 D vacuum elastic film thermal transfer printing machine

Quality/safety certification:ISO9001-2000;CE



Technical parameters:

1.Processing products: surface thermal transfer printing of 3d abnormity products

2.The processing principle: heat shrinkable + vacuum

3.Machine overall size: 2200 * 1180 * 2200 mm

4.Processing size: worktable 650 * 460 mm

5.Heat transfer temperature: room temperature 0-399 °C

6.Operating station: single station (or double stations,double worktable for continuous work)

7.Vacuum tank: 0.1 M3-0.98 Mpa

8.Vacuum pump: 1.5 KW  Gross power:12KW

9.Automatic and adjustable running of heat sublimation paper

10.electric control: man-machine interface + PLC + imported photoelectric sensors

11.Weight:1.3T



Product Features:

1.The processing products:On the principle of vacuum forming,used for disposable heat transfer printing surface of 3d abnormity products,more powerful stability and lower defect rate.

2. The processing features: the 3 d products heat transfer printing machine can cover entire surface of the product cooperating with PVC elasticsublimation membrane. Including products’ turning angles, rounded corners and concave. Making workpieces’surface smooth without fracture, wrinkle, peeling phenomenon.



3. The operation control: man-machine interface control operation, easy to operate;



4. Electrical control: PLC programmable controller, photoelectric and position sensors adopt

  imported high-quality brand for stable operation performance, heating temperature and

 processing time can be  controlled by high precision digital display.

5. The machine adjust: hot roller pressure is controlled by digital adjustment, directly input the number of pressure, convenient and clear operation, easy and accurate adjustment.

6. Hydraulic control: imported hydraulic pump, all with stainless steel cylinder, smooth and durable operation.



7. Vacuum control: adopt imported vacuum pumps, negative pressure response rapid operation, low noise, durable, low defect rate.



8. Work efficiency: It can process multiple products at the same time with double workbench operation,efficiency is higher.



9. The effect comparison: the effect and efficiency are greatly improved than water transfer printing.

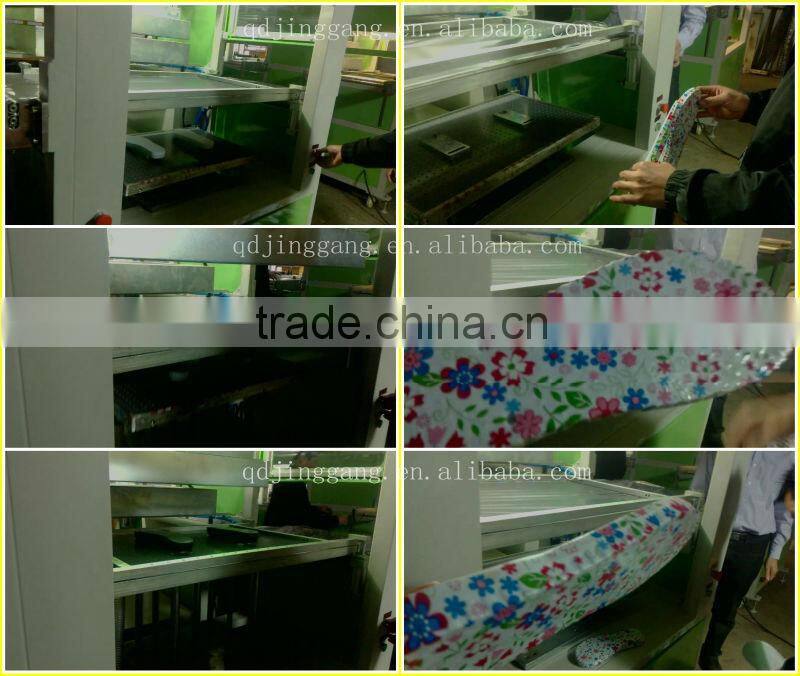

Firstly, we should make a holder for your products, the holder is made of aluminum and suitable for your products shape.    Then, different products need different temperature as follows:



Material	Temperature
ABS	160~200°C
PC	160~200°C
PP	210~230°C
PVC	190~210°C
PE	240~260°C
Metal	250~270°C
Ceramic	250~270°C



FAQ



1.Packaging:

Normal standard size:  1 Piece/ standard wooden case within Foam (according to different specifications).



2.Delivery/Lead time:   About15-25days after receiving the prepayment.



3.Payment term:   T/T and others (30%~40% pre-payment, the balance will be paid before delivery)



4.Shipping methods:    Ocean freight or others



5.FOB shipping seaport:    Qingdao port, China (mainland) .



6.Minimum order quantity:    1 set.



Note:We can customize various hot stamping machine/heat transfer printing machine by customers’ practical demand.



Which kind of machines do you need ?

Tell me some information about your demand or a picture of the sample ,and I will give you the prompt feedback and the best recommendation.



We also sell various elastic films for heat transfer printing at wholesale price,welcome to inquiry!

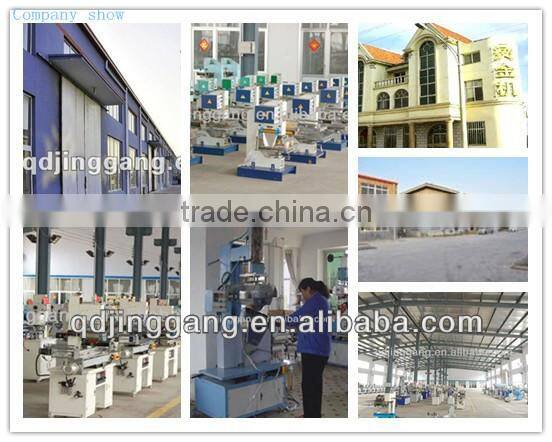

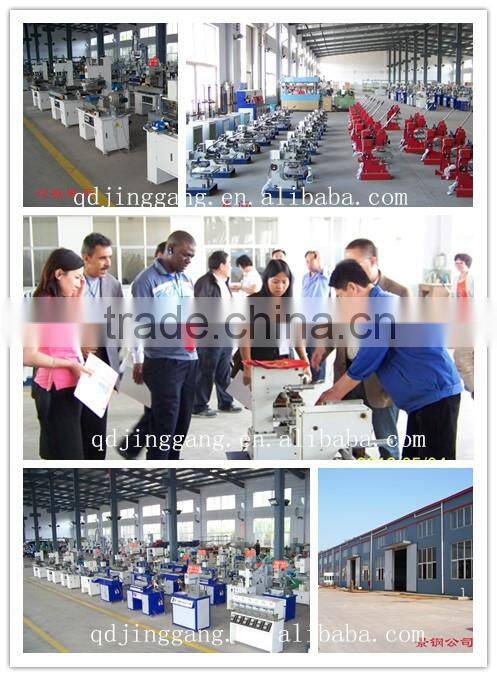

 Our factory

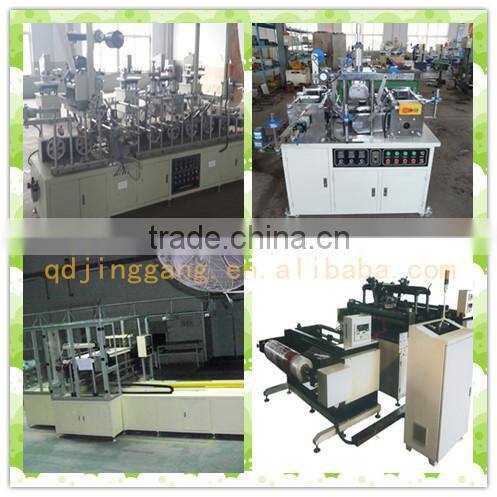

Our customized machines for the clients





Our cooperative partner

Our glories&certificates

If you are interested in our machine,you can:

 (1).Tell us the information(materials, size and shape) of the products you want to make.We will introduce you the best choice for you among our more than 100 kinds of machines.

 (2).If you send us the samples for testing.We will offer a good solution by it,and then return the new sample (that the customized machine make )back to you.

 (3).The customers evaluates if the machine is suitable.

Leave a message to know more about our machines……
