Home > Products > Cable Gland > Metal TJ Marine Cable Gland
Metal TJ Marine Cable Gland
Negotiable
/ Piece
50 Pieces(Min.Order)
- 500000 Piece / Pieces per Month
- Ningbo or Shanghai or other
- T/T Credit Card
You May Like
- BNC Strain Relief Boot Black For RG59 Cable
- ev Car EMC Cable Gland IP68 EMC Elastic Clasping Cable Gland For EV Car Motor And Power
- IP68 Nickel Plated Copper Cable Gland 4 to 8mm
- High Quality Hydraulic Breather Vent Valve Big Air Flow Breather Vent Plug Black/Grey Waterproof
- Air Vent Plug Waterproof For Monitoring Systems Auto Air Vent Exhaust Valve Threaded Plug Made From Plastic Nylon
- 3/8 Inch Hydraulic Breather Vent Plug, M12*1.5 protective screw in vent and waterproof IP68 plastic
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Highsail or OEM | Model Number: | TJ JIS TH TG type |
Protection Level: | Other, IP54 | Size: | TJ8-TJ58 | Material: | Other, Stainless Steel or Brass |
Product Description
Specifications
TJ Marine Cable Gland1.Brass or Stainless Steel
2.Entry Thread:PF
3.TJ JIS TH TG type
4.Factory/OEM

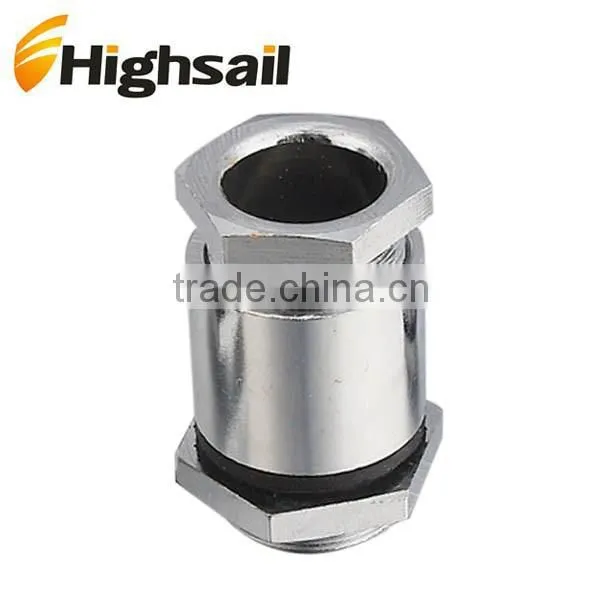

TJ Marine Cable Gland
Product Description
1.Material | You can select the material,Lock Nut,Body,Washer,Nipple are made of stainless steel or nickel plated brass or chromium planted brass;O-ring and Gasket are made of EPDM or NBR | |
2.Thread Type | TJ / JIS / TH / TG available | |
3.Size Range | TJ8-TJ58 / JIS10-JIS75 / TH8-TH58 / TG8-TG58 available | |
4.Application | For use all types of unarmoured cables | |
5.Waterproof Degree | IP54(Thread position with O-ring) | |
6.Thread Length | Long thread / Short thread | |
7.Samples | Available | |
8.Quality Control | All goods will be 100% inspected before dispatching | |
9.R&D Ability | OEM available,open new molds according to your samples or drawings. |
Technical Parameters
TJ Series Marine Cable Gland Technical Parameters.
RE:JIS/TH/TG Series technical parameters,please feel free to consulting me.
Size | d(mm) | D(mm) | d1(mm) | D1(mm) | H(mm) | H1(mm) | Cable Range(mm) |
TJ-8 | 8 | M16*1 | M14*1 | 20 | 32 | 9 | 5-7 |
TJ-13 | 13 | M20*1 | M18*1 | 24 | 35 | 10 | 6-12 |
TJ-16 | 16 | M27*1.5 | M22*1.5 | 31.5 | 40 | 12 | 11-15 |
TJ-19 | 19 | M30*1.5 | M27*1.5 | 34.5 | 42 | 12 | 14-18 |
TJ-24 | 24 | M35*1.5 | M30*1.5 | 39.6 | 44 | 12 | 17-23 |
TJ-28 | 28 | M42*2 | m36*1.5 | 46.5 | 46 | 15 | 22-27 |
TJ-34 | 34 | M47*2 | M42*1.5 | 54 | 49 | 15 | 26-33 |
TJ-42 | 42 | M55*2 | M52*1.5 | 62 | 54 | 15 | 32-41 |
TJ-50 | 50 | M62*2 | M58*1.5 | 68.5 | 56 | 15 | 40-49 |
TJ-58 | 58 | M71*2 | M68*1.5 | 77.5 | 56 | 20 | 48-57 |
Production Equipment
1.Packaging | (1)Interior Packaging:1/5/10/20/50/100pcs per polybag with neutral label or custom design.(2)External Carton:37*27*18cm or custom design. |
2.Transportation | (1)By sea,by air,or by express(TNT,Fedex,UPS,DHL,Aramex,EMS etc);(2)We will do best to get good freight cost for you. |
3.Payment Terms | T/T, Paypal,Western Union,L/C,Escow |
4.Delivery Time | According to your order quantity,10 days within 20000pcs in general. |
5.Company Type | Factory and trade integration,years of export experience; |
Cable Gland Manual
