Specifications
Cutting roll materials Hot stamping foils, film, soft paper etcPrecise,Stable,Durable
Manual & Electric available
ISO&CE

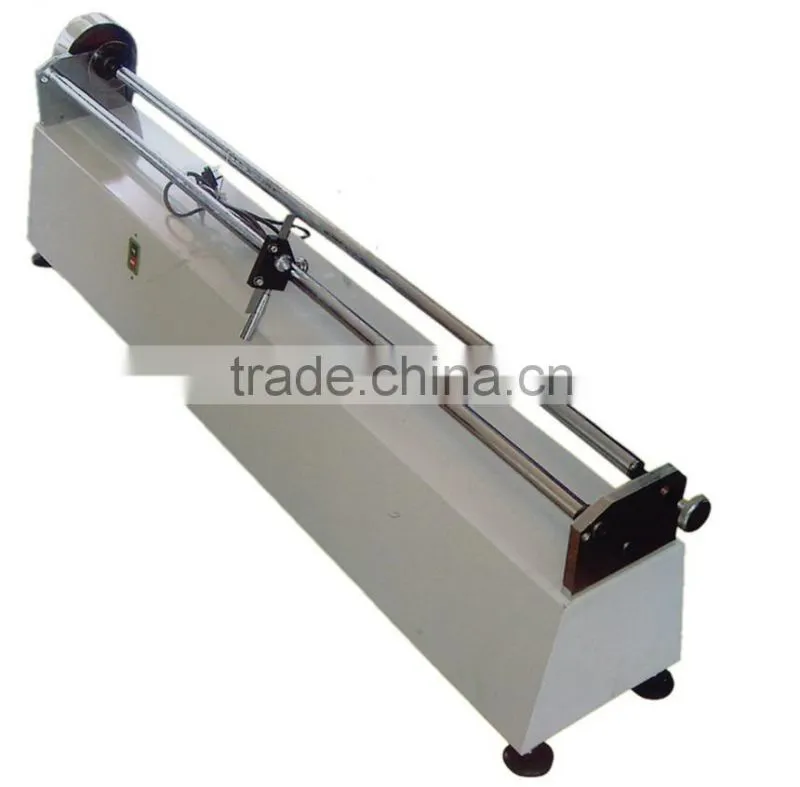

TJ-15 Manual&Electric Electrochemical Aluminum/hot stamping foil/soft film Cutter
Product description:
The machine takes single phase capacitance start motor as its main drive and other
drive mode is V belt transmission.
Suitable for cutting soft material in reel of different sizes like hot foil paper and packing film etc.
The bearing connecting mainbody with steel rod is designed specially, it can ensure the simple operation,stable running and durable using.
Quality/Safety Certification ISO9001-2000&CE
Technical Parameter:
1.Diameter range of cutting foil paper : 30~120mm
2.Max. cutting length : 640mm &1280mm (can customize).
3.Power of electromotor: 250W
4.Rotate speed: 675r/min
5.Overall size: (L*W*H): 850*250*270mm &1500*400*480mm
6.Power supply: 220V 50HZ
7.Weight: 16kg,30kg,80kg
Product features:
1. Motor drive ,smooth running.
2. Neat cutting and easy operation.
3. Little vibration and no noise when working
4. Its cutting speed is fast.
5.Its cutting size can be adjusted freely
6.The bearing connecting mainbody with steel rod is designed specially, it can ensure the simple operation,stable running and durable using.
Note:We can customize various hot stamping machines & foils cutting machine by customers’ practical demand.
Type |
Max. cutting length |
Weight |
Diameter |
Price(USD) |

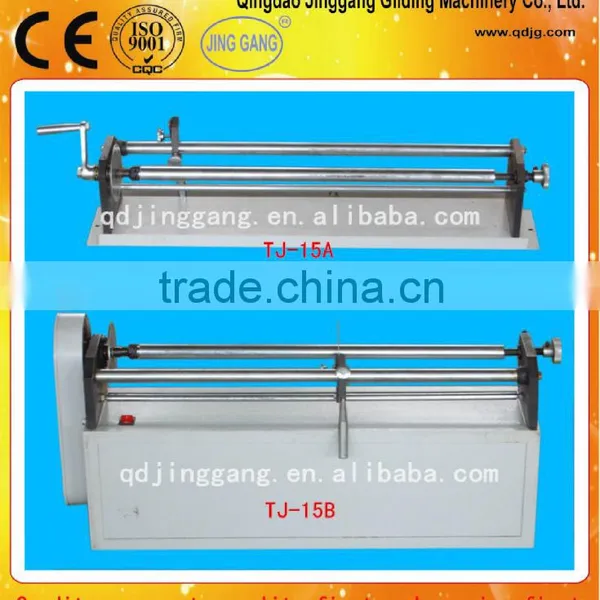

TJ-15A Manual |
640mm |
15kg |
30-120mm |
90-150 |
TJ-15B Electric |
640mm |
30kg |
30-120mm |
290-650 |
TJ-15C Electric |
1280mm |
40kg |
50-120mm |
1200-1500 |
Operation conditions:
1.Height above sea level: not more than 1000m.
2.Ambient temperature: -10°C~+45°C
3.Relative humidity: not more than 90%( below 20°C)
4.No conducting electricity dust and the gas that can corrode metal and destroy insulator in the atmosphere.
5.No explosion hazard, no severe vibration or impact in the work site.
Which machines do you need?
Tell me your demand or a picture of the sample ,and I will give you the prompt feedback and the best recommendation.
Why are we your best choice?
1. Better Price and cheaper carriage
As a factory, you can do business directly with us. It saves the profits of trading company.The price will be much better . And our plant is very closed to the seaport(15 km) andthe airport(10km).
2. Better guarantee
We have the specialized department for the quality inspection during the whole processing.
3. Better after-service
We have our own professional sale and after-sale service team. We can supply the most professional service for you.
4. More Professional
With a powerful design team and more than 20 years of experience ,We can manufacture machines according to the customer's practical demand or sample products .
5. Honesty and trustworthiness
We have exported the machines more than 10 years. And many customers place repeated orders from us.
Our factory
Our customized machines for clients
Our cooperative partner
Our glories and certificates
Our packing
Leave a message to know more about our machines
Send Inquiry to This Supplier
