Specifications
TJ-15 hot stamping foil cutter machine3-year Gold Supplier
Max. cutting length 640mm or 1280mm or Customize
Germany TUV&ISO

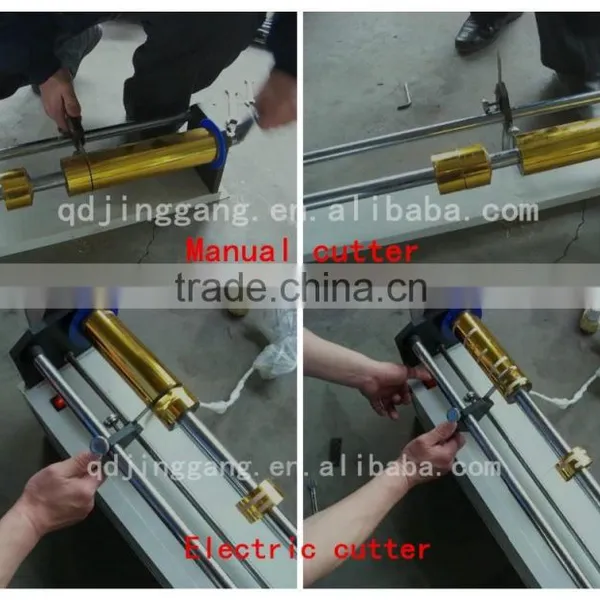

TJ-15 Manual&Electric hot stamping foil cutter machine /soft film hot stamping foil cutting machine
Product description of hot stamping foil cutter machine

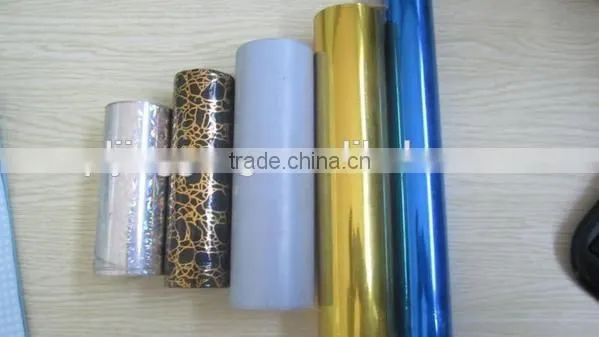

1.This cutting machine is specially used for cutting such soft material in reel as hot stamping foil,thin film,etc
2. It can save foils & easy to operate. The machine can be customized by your demand.
3. The machine takes single phase capacitance start motor as its main drive and other
drive mode is V belt transmission.
Quality/Safety Certification: Germany TUV & ISO9001-2008
Technical Parameter:of hot stamping foil cutting machine
1.Diameter range of cutting foil paper : 30~120mm
2.Cutting length : 640mm&1280mm(can customize).
3.Power of electromotor: 250W
4.Rotate speed: 675r/min
5.Overall size: (L*W*H): 850*250*270mm &1500*400*480mm
6.Power supply: 220V 50HZ
7.Weight: 16kg,30kg,80kg
Type |
Max. cutting length |
Weight |
Diameter |
Price(USD) |

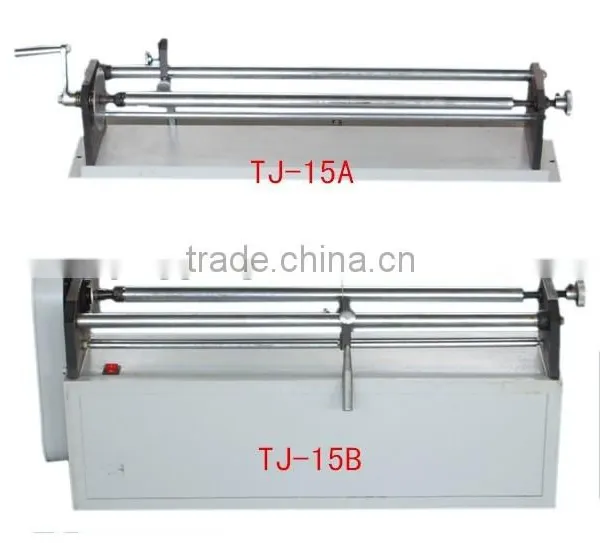

TJ-15A Manual |
640mm |
15kg |
30-120mm |
90-150 |

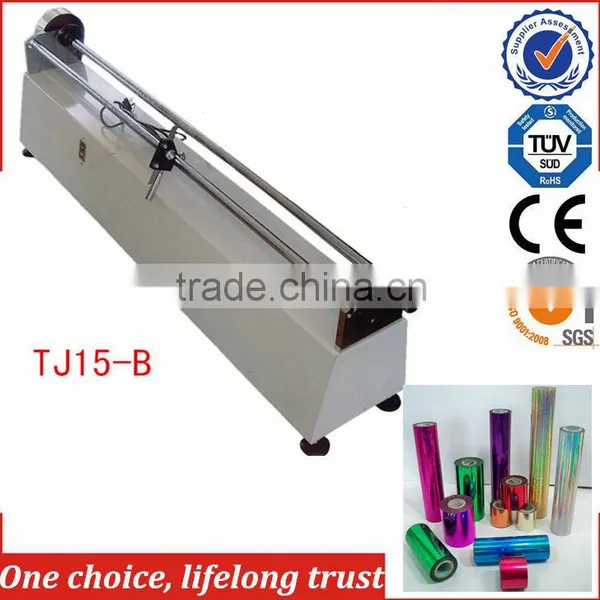

TJ-15B Electric |
640mm |
30kg |
30-120mm |
290-650 |
TJ-15C Electric |
1280mm |
40kg |
50-120mm |
1100-1500 |
Advantages: of hot stamping foil cutter
1. Motor drive ,smooth running. Neat cutting and easy operation.
2. Its cutting size can be adjusted freely.
3. Little vibration and no noise when working
4. Its cutting speed is fast.
5. The bearing connecting mainbody with steel rod is designed specially, it can ensure the simple operation,stable running and durable using.
Operation conditions of hot stamping foil cutting machine
1.Height above sea level: not more than 1000m.
2.Ambient temperature: -10°C~+45°C
3.Relative humidity: not more than 90%( below 20°C)
4.No conducting electricity dust and the gas that can corrode metal and destroy
insulator in the atmosphere.
5.No explosion hazard, no severe vibration or impact in the work site.
Note:We can customize various foil cutter,hot stamping machines,heat transfer machines by customers’ practical demand.

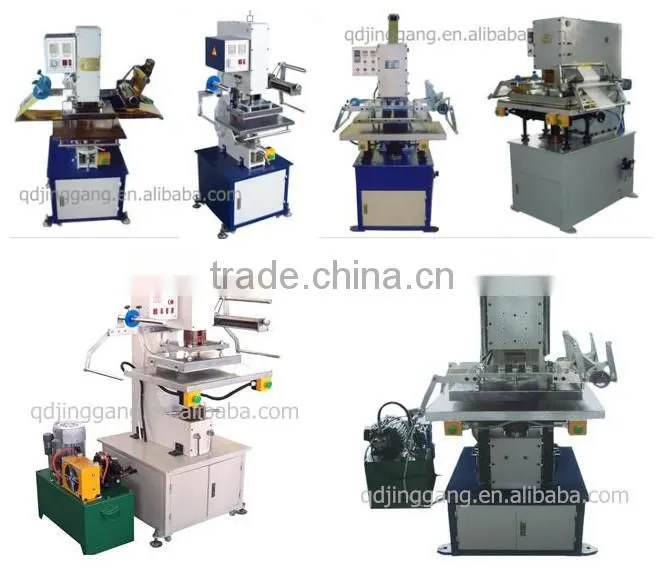

[1] Plate Type Hot foil stamping machine,embossing machine
[2] Automatic Hot foil stamping machine for Ribbon, Cloth Strips, Roll Stock
[3] Digital Hot foil stamping machine for Cambered Surface, Cylindrical or Conical products
[4] Hot foil stamping machine for Basket, Large box, Crate,Cases and Heat transfer printing machine for Plastic Bucket,Barrels
Which machines do you need?
Tell me your demand or send a sample picture, I will give you the prompt feedback and the best recommendation.
Leave a message to know more about our machines
Ms Grace Skype: yananwei1
Why are we your best choice?
1. Better Price and cheaper carriage
As a factory, you can do business directly with us. The price will be much better . And our plant is very closed to the seaport(15 km) andthe airport(10km).
2. Better guarantee
We have the specialized department for the quality inspection during the whole processing.
3. More Professional
With a powerful design team and more than 20 years of experience ,We can manufacture the machines according to the customer's practical demand or sample products.
4. Honesty and trustworthiness
We have exported the machines more than 10 years. And many customers place repeated orders from us.
Product Flow
Our factory
Our cooperative partner
Various hot foil stamping machine, heat transfer printing machine, hole drilling machine, hot stamping foils cutting machine
To be packed in sea-worthy plywood case.
Standard Package: Machine+1 set of tool+spare main parts+User Manual.
Shipping by sea or by air express.
Within 1~3 workdays upon receiving 100% payment.
