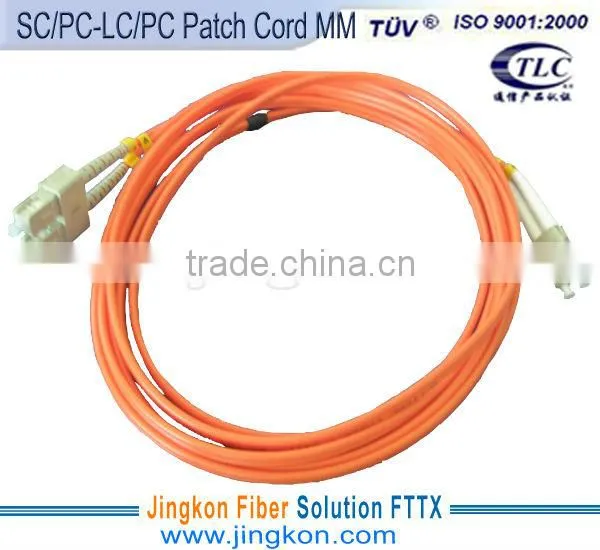

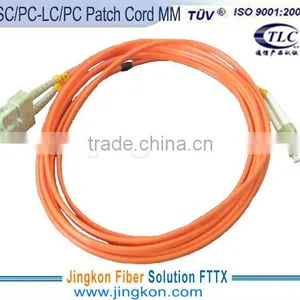

Optical Fiber Patch Cord SC/PC-LC/PC-D-MM-3.0mm/2.0mm

Name: Optical Fiber Patch Cord SC/PC-LC/PC-D-MM-3.0mm/2.0mm
Brand: Jingkon
SKU: 129676685
Availability: InStock

US$ 2 - 5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Jingkon

Ningbo Jingkon Fiber Communication Apparatus Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo / Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Jingkon

Specifications

Optical Fiber Patch Cord SC/PC-LC/PC-D-MM
Insertion Loss low 0.20 dB;
Return loss low -50 dB;
Fiber Type: 62.5/125 50/125.

Optical Fiber Patch Cord SC/PC-LC/PC-D-MM-3.0mm/2.0mm

Fiber Type : 62.5/125(OM1) 50/125 (OM2) 10GIG(OM3)

Operating Wavelength: 850 nm

Connector Type Polishing : SC/UPC LC/UPC D4 DIN ST/UPC MU E2000/UPC SMA ESCON MTRJ

Fiber Cable Jacket Type: PVC /LSZH Simplex/ Duplex 3.0mm/ 2.0mm/0.9mm

Insertion loss ≤0.20dB,

Radius of curvature nm 10 ≤ r ≥25

Curvature eccentricity um <50

Fiber core undercut nm <50

Insertion loss change< 0.1,Return loss change< 5, No flab, No distortion

Repetitiveness (dB): Insertion loss change< 0.1,Return loss change< 5

Insert & pull out : Max: 2KG

Tensile strength dB 0- 10KG per minutes

Fully tested cables to ensure superior quality and durability

RoHS Compliant

Optical Fiber Patch Cord SC/PC-LC/PC-D-MM-3.0mm/2.0mm

FeaturesLow insert loss; Good repeatability; Good changeability; Good temperature stabilization.

Mechanism Features: insert and pull frequency > 1000; Changeability(db) ≤ 0.20Tensile strength < 0.1; Ascillating test < 0.1.

Condition Features: High temperature < 0.2; Low temperature < 0.2.

Use: Applied in optical fiber communications system, fiber optic data transmission, LAN, optical fiver sensors and optical CATV.

Description	Optical Fiber Patch Cord SC/PC-LC/PC-D-MM-3.0mm/2.0mm
Item NO.	Test Item	Unit	Standard & Requirement
1	Appearance	/	No crack, No scar, good conformability
2	Ferrule polished end	/	No scar, No spot
3	Insertion loss	dB	SM≤0.2,
4	Return loss	dB	APC≥-60 PC≥-50
5	Curvature eccentricity	um	<50
6	Fiber core undercut	um	-<50
7	Fall apart test	dB	H=1M,connector free-falling 5 times Insertion loss change< 0.1,Return loss change< 5,No flab, No distortion
8	Repetitiveness	dB	Insertion loss change< 0.1 Return loss change< 5
9	Insert & pull out	/	Max: 2KG
10	Tensile strength	dB	0- 10KG per minutes Insertion loss change< 0.1,Return loss change< 5,No flab, No distortion
11	Addition	dB	2.5Kg,200times,10times/minutes,±80° Insertion loss change < 0.1,Return loss change< 5, No flab, No distortion
12	Package	/	Clean, Correctitude, No dirt
13	Allowable bending radius	mm
