Specifications
3m Optical Fiber LC 2mm Multi-mode Patch CordInsertion Loss low 0.20 dB;
Return Loss higher than 60dB

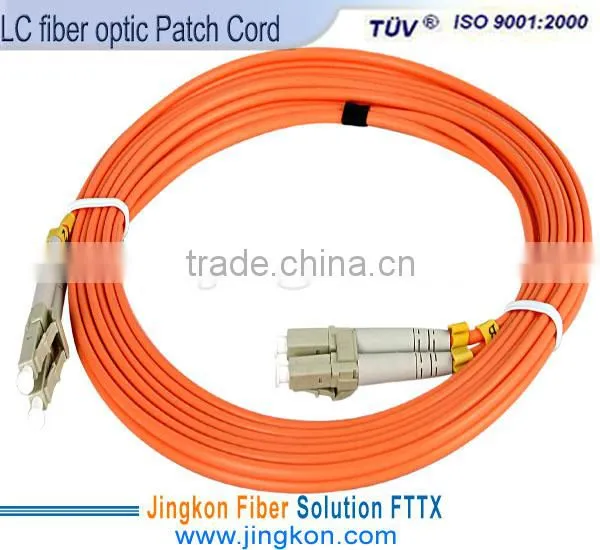

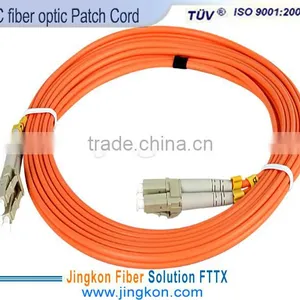

3m Optical Fiber LC 2mm Multi-mode Patch Cord
Fiber Type : 62.5/125 Corning fiber Operating Wavelength: 850 nm
Connector Type Polishing : SC/UPC SC/APC LC/UPC LC/APC D4 MU DIN ST/UPC E2000/UPC E2000/APC SMA ESCON MTRJ
Fiber Cable Jacket Type: PVC /LSZH Simplex/ Duplex 3.0mm/ 2.0mm/0.9mm
parameter:
Description |
3m Optical Fiber LC 2mm Multi-mode Patch Cord |
||
Item NO. |
Test Item |
Unit |
Standard & Requirement |
1 |
Appearance |
/ |
No crack, No scar, good conformability |
2 |
Ferrule polished end |
/ |
No scar, No spot |
3 |
Insertion loss |
dB |
SM≤0.2, |
4 |
Return loss |
dB |
APC≥-60 PC≥-50 |
5 |
Curvature eccentricity |
um |
<50 |
6 |
Fiber core undercut |
um |
-<50 |
7 |
Fall apart test |
dB |
H=1M,connector free-falling 5 times Insertion loss change< 0.1,Return loss change< 5,No flab, No distortion |
8 |
Repetitiveness |
dB |
Insertion loss change< 0.1 Return loss change< 5 |
9 |
Insert & pull out |
/ |
Max: 2KG |
10 |
Tensile strength |
dB |
0- 10KG per minutes Insertion loss change< 0.1,Return loss change< 5,No flab, No distortion |
11 |
Addition |
dB |
2.5Kg,200times,10times/minutes,±80° Insertion loss change < 0.1,Return loss change< 5, No flab, No distortion |
12 |
Package |
/ |
Clean, |
I
Fully tested cables to ensure superior quality and durability
RoHS Compliant
Features:
Low insert loss; Good repeatability; Good changeability; Good temperature stabilization.
Mechanism Features: insert and pull frequency > 1000; Changeability(db) ≤ 0.20Tensile strength < 0.1; Ascillating test < 0.1.
Condition Features: High temperature < 0.2; Low temperature < 0.2.
Use:
Applied in optical fiber communications system,
fiber optic data transmission,
LAN,
optical fiver sensors
optical CATV.
Package:
