Muffle Furnace Factory Continous Quenching Tempering Machine Mesh Belt Furnace Line Factory
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Resistance Furnace
Usage:
Other, Heat Treatment Furnace, Carburizing Carbonitriding Hardening Heat Treament
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Conveyor Belt Heat Treatment Furnace Production Line Screws Hardening FurnaceNegotiableMOQ: 1 Set -
Continous Quenching Tempering Oven FactoryNegotiableMOQ: 1 Set
-
Continous Mesh Belt Muffle Furnace Factory Quenching Tempering Furnace Muffle Furnace FactoryNegotiableMOQ: 1 Set
-
Continous Carburizing Furnace Conveyor Mesh Belt Furnace For Hardening and TempringNegotiableMOQ: 1 Set
-
Industrial Continous Belt Furnace Factory Conveyor Belt Heat Treatment EquipmentNegotiableMOQ: 1 Set
Condition
New
Type
Resistance Furnace
Usage
Other, Heat Treatment Furnace, Carburizing Carbonitriding Hardening Heat Treament
Place of Origin
Zhejiang, China
Brand Name
HUAHONG
Model Number
RCW
Voltage
380V
Power(W)
25-90KW
Dimension(L*W*H)
3000*400*120mm
Certification
ISO9001-2008
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
| Specifications | Chain plate type Continuous furnace suitable for quench, cementite, together ooze of carbon and nitrogen heat-treatment craftwor | |||||||
| Structure Instruction | The Chain plate type Continuous furnace formed by feeding machine,vibrator distribution machine,resistance furnace,quenching tank,washing maching, annealing furnace and automatic control system,etc. The specific component based on the demand of customer. | |||||||
| Features | 1.This kind of furnace is a automated production line,it reduce the time and the process of production. 2.The automatic control system achieve simplistic work and more efficiency. |
|||||||
| Note | The above specifications are for reference only, furnace specific gall size is based on the demand for customized products. | |||||||
Usage:The mass process heat-treatment of machine parts,heating,normalizing,annealing and quenching,carburizing and nitriding in protect atmosphere.
Structure Instruction:The line type mesh furnace formed by mesh belt,furnace sheel,lining,washing tank,strong fan,automatic control system,etc.
Features:
1.The line type mesh furnace main used for mass process of small machine parts,such as:standard parts,bearings, chains, screws, needles,etc.
2.The furnace could achieve the whole heat treatment in one production,such as:heating,normalizing,annealing and quenching,carburizing and nitriding in protect atmosphere.
3.The lining use the full-fiber refractory .This kind of refractory material is lighter and more effective.
4.The strong fan could make strong wind to make the temperature uniformity in the lining.
5.The automatic control system make the producion easier and more economical.
Quenchig furnace:
| Furnace Model | RCW-20 | RCW-45 | RCW-60 | RCW-75 | RCW-90 | RCW-120 | RCW-150 |
| Temperature(°c) | 850 | 850 | 850 | 850 | 850 | 850 | 850 |
| Dimension(mm) | 1300X150X50 | 2400X220X50 | 2400X300X50 | 3600X300X50 | 4700X300X80 | 4700X400X80 | 5000X500X80 |
| Power(Kw) | 20 | 45 | 60 | 75 | 90 | 120 | 150 |
| Production(Kg/h) | 30 | 60 | 100 | 150 | 200 | 250 | 300 |
Tempering furnace:
| Furnace Model | RCW-25 | RCW-35 | RCW-45 | RCW-60 | RCW-90 |
| Temperature(°c) | 600 | 600 | 600 | 600 | 600 |
| Dimension(mm) | 3000X400X120 | 4000X400X120 | 3900X600X120 | 5000X600X120 | 4700X800X120 |
| Power(Kw) | 25 | 35 | 45 | 60 | 90 |
| Production(Kg/h) | 45 | 60 | 150 | 200 | 300 |

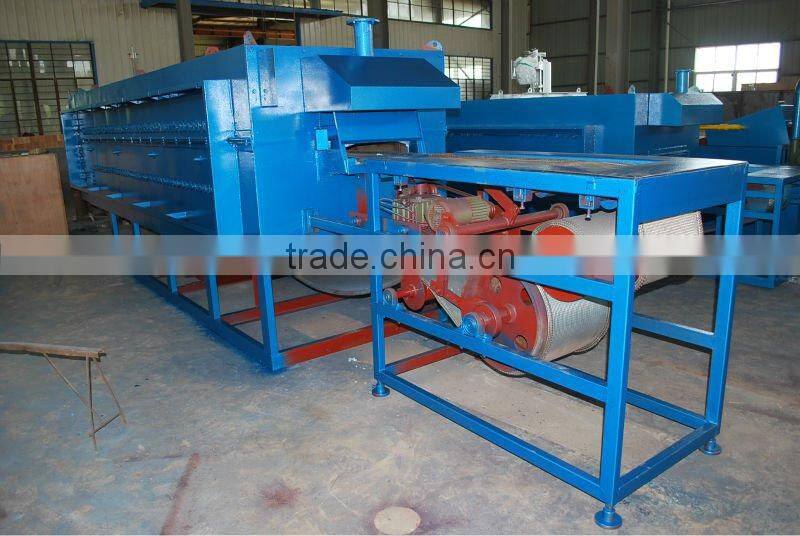

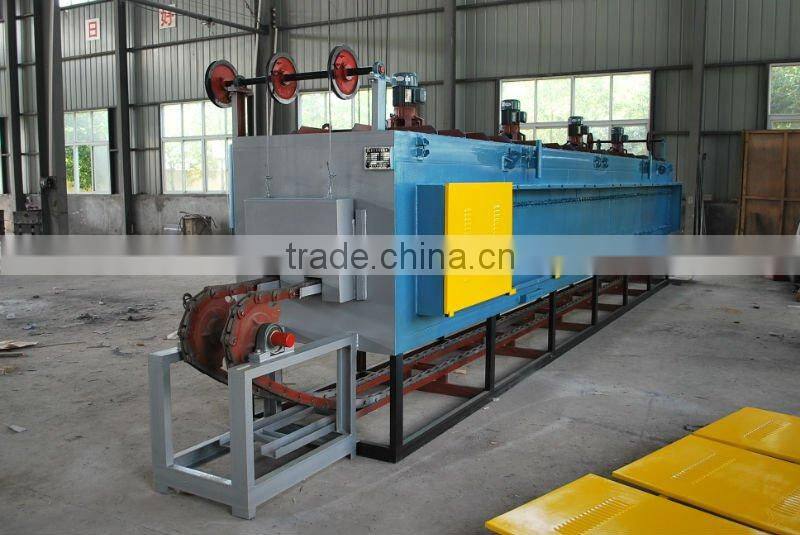

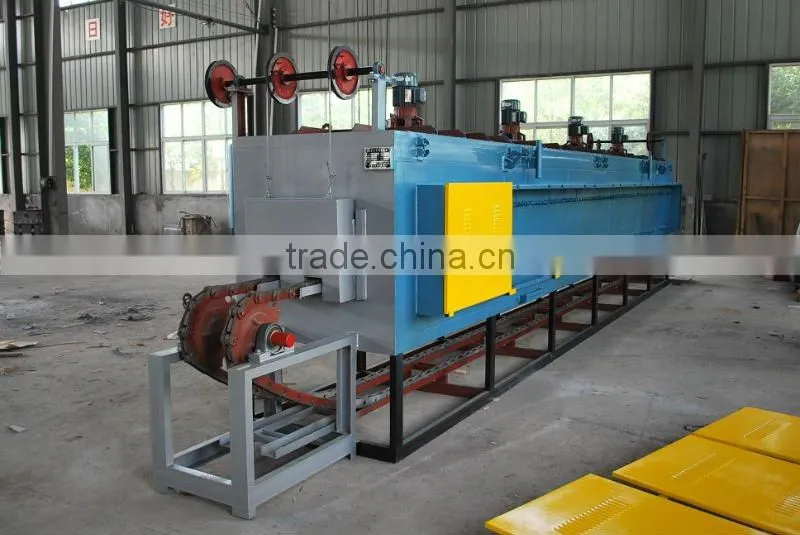

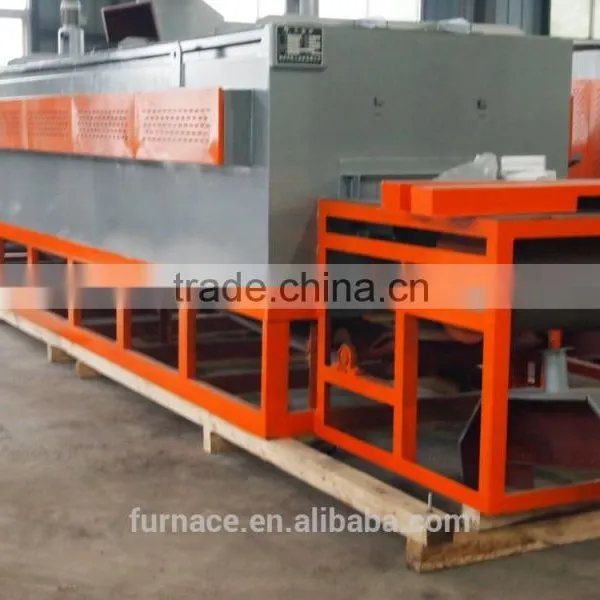

PICS SHOW:
