Home > Products > EL membrane switch > high brightness EL panel for thin-film switch
high brightness EL panel for thin-film switch
- 10000 Square Meter / Square Meters per Month
- shanghai
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | jermyn | Model Number: | customize |
Product Description
Feature:
-material: ITO film, phosphor
-color and shape: any color and shape available
-high luminescence efficiency, low power consumption and no heat generation
-power supply: DC 1.5V to 24V or AC30V-220V
-no ultraviolet ray produced, so it’s safe used in your house
Application:
-home, office room, switching room
-night bar, party
-DIY spaces
Specification:
Light weight & thickness | Less than 0.2mm thickness |
Flexible | Can be bent to 360 degree, not folded |
Size | Over 120cm x 240cm need to combine several panels to make it. |
Shape | Any shape available. |
Brightness | More than 120cd/m2 |
Life span | 10,000 – 20,000 hours based on animation effect. |
Safety | No Ultraviolet Radiation and heat emitted |
Service environment | Indoor, Outdoor |
Operating temperature | -25°C to 75°C |
Storage temperature | -40°C to 85°C |
Humidity Range | 5% to 95% |
Power Resources | DC 1.5V to 24V or AC30V-220V |
Operating current | less than 0.25 mA / cm² |
Operating capacitance | 0.20 ~ 0.65 nf/cm² |
Supply frequency | 50-2000HZ |
Warranty | 1 year factory warranty for indoor usage EL panel, |
| 6 month warranty for outdoor or vehicle usage EL panel. |
Certificate | CE, UL-CUL, PSE, FCC, GS License and RoHS |
How to customize thin-film switch?
First, please provide us with your artwork with format JPG, GIF, PSD, AI, PDF, TIFF, BMP, EPS and so on.
Second, if you provide us other format except GIF, our designers will design your original artwork for your confirmation, or you can offer us directly GIF
Third, please inform us the quantity, the size, animation requirement, operation condition and related information, we will reply you in 1 work day with our best quotation.
Then, we will do the sample for your confirmation after your payment for the sample. If you are satisfied with the sample, we will arrange for mass production after we have
Package ways and package materials will be arranged with your requirement.
Description:

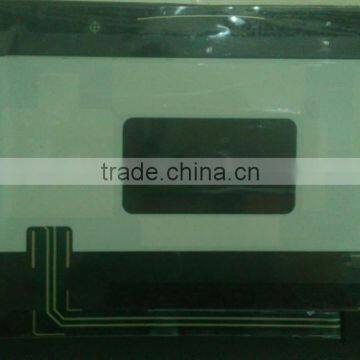

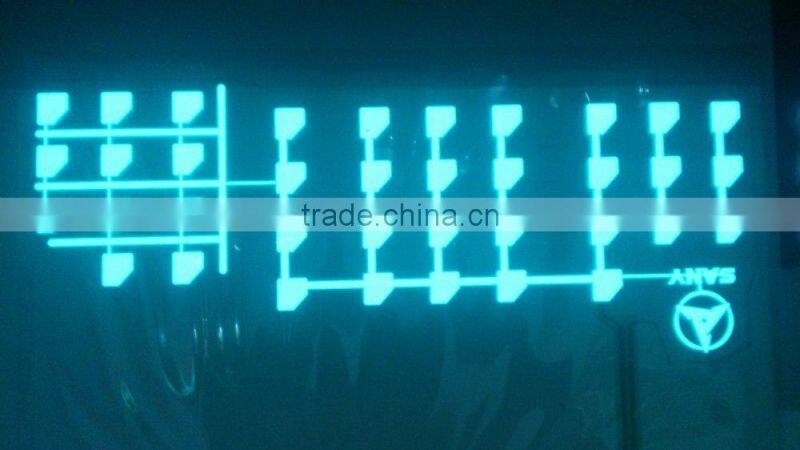

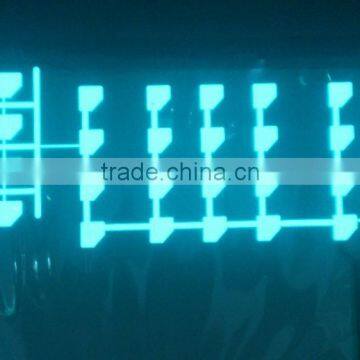

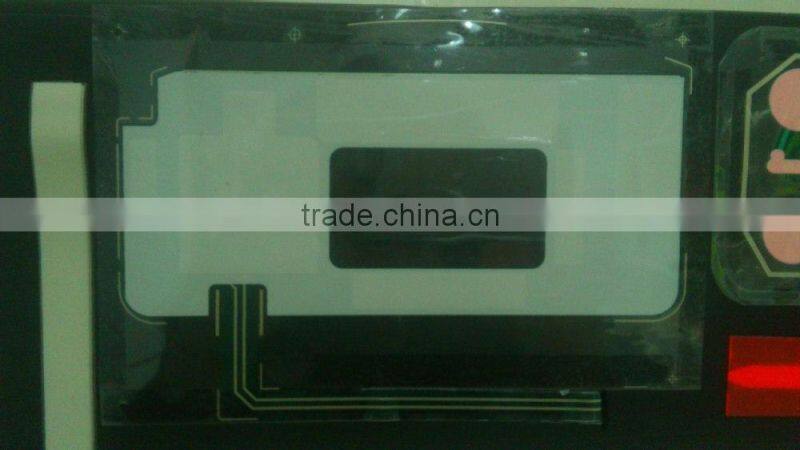

The corresponding switch button place on EL sheet can be designed to self-luminescence, cover this EL sheet on the surface of switch. Install easily and simply, the button place of the switch covered by the EL film is beautiful and with uniform luminescence.
You’ll never have the problem of find where the switch is when you walk into a dark room, and also don’t have to worry about hit the wall with your nose.
Why we are your best choice?
-Use superior raw materials
-New and advanced machines and equipment
-One-stop shop services from ordering, design, production, shipping until cargo arrive customer's hand.
-Professional designers, manufacture workers, foreign trade salesmen and a series of system rules to ensure the quality and punctual delivery of the products you ordered us
-Excellent after-sale service
Contact Us
- Suzhou Jermyn Photoelectric Technology Co., Ltd.
- Contact nameHansen Ji
- Phone86-0512-68058979
- Address2 FL, Building 4, NO.199, Jinfeng Road Suzhou,Jiangsu
