15years Experience RG Sseries Coaxial Cable as RG11 RG6 RG59 for CCTV CATV MATV System 75ohm (CE RoHS ISO9001)

Name: 15years Experience RG Sseries Coaxial Cable as RG11 RG6 RG59 for CCTV CATV MATV System 75ohm (CE RoHS ISO9001)
Brand: Luhua
SKU: 129645595
Availability: InStock

15years Experience RG Sseries Coaxial Cable as RG11 RG6 RG59 for CCTV CATV MATV System 75ohm (CE RoHS ISO9001) thumbnail-1

15years Experience RG Sseries Coaxial Cable as RG11 RG6 RG59 for CCTV CATV MATV System 75ohm (CE RoHS ISO9001) thumbnail-2

15years Experience RG Sseries Coaxial Cable as RG11 RG6 RG59 for CCTV CATV MATV System 75ohm (CE RoHS ISO9001) thumbnail-3

15years Experience RG Sseries Coaxial Cable as RG11 RG6 RG59 for CCTV CATV MATV System 75ohm (CE RoHS ISO9001) photo-1

15years Experience RG Sseries Coaxial Cable as RG11 RG6 RG59 for CCTV CATV MATV System 75ohm (CE RoHS ISO9001) photo-2

15years Experience RG Sseries Coaxial Cable as RG11 RG6 RG59 for CCTV CATV MATV System 75ohm (CE RoHS ISO9001) photo-3

US$ 0.35 - 0.93 MOQ: 200 Kilometers

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Luhua

Model Number:

RG 11

Contact Supplier Request Quote Chat Now

Zhejiang Luhua Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Luhua

Model Number RG 11

Type Coaxial

Number of Conductors 1

RG11 Series Drop Coaxial cable specifications

Physical Specifications

Nominal Dimensions	Standard	Tri-shielding	Quad-shielding
Conductor	1.63mm( 0.064 in)	1.63mm( 0.064 in)	1.63mm( 0.064 in)
Dielectric	7.11mm(0.280 in)	7.11mm(0.280 in)	7.11mm(0.280 in)
Shielding 1	Al /Pet foil	Bonded Al /Pet foil	Bonded Al /Pet foil
Shielding 2	0.12mm*80 (40% coverage)	0.16mm*96 (60% coverage)	0.16mm*168 (90% coverage)
Shielding 3	-	Al /Pet foil	Al /Pet/Al foil
Shielding 4	-		0.16mm*80 ( 40% coverage)
Jacket	10.03mm( 0.395 in)	10.16mm( 0.400 in)	10.29mm( 0.405 in)
Messenger	1.83mm (0.072 in) Zinc plated steel

Mechanical Characteristics

Mechanical Breaking Strength of Messenger 0.072 inch 365lbs. 1624 N

Electrical Characteristics

Impedance ( Ohms) 75±3

Nominal Capacitance (pF/m) 53

Velocity of Propagation 85%

Structural return loss (Db)≥ VHF 22

UHF 20

Attenuation [@68F.(20Degree centigrade)]

Frequency Mhz	dB/100 ft	dB/100 M
5	0.38	1.25
55	0.96	3.15
211	1.90	6.23
300	2.25	7.38
400	2.60	8.53
450	2.75	9.02
550	3.04	9.97
750	3.65	11.97
865	3.98	13.05
1000	4.35	14.27

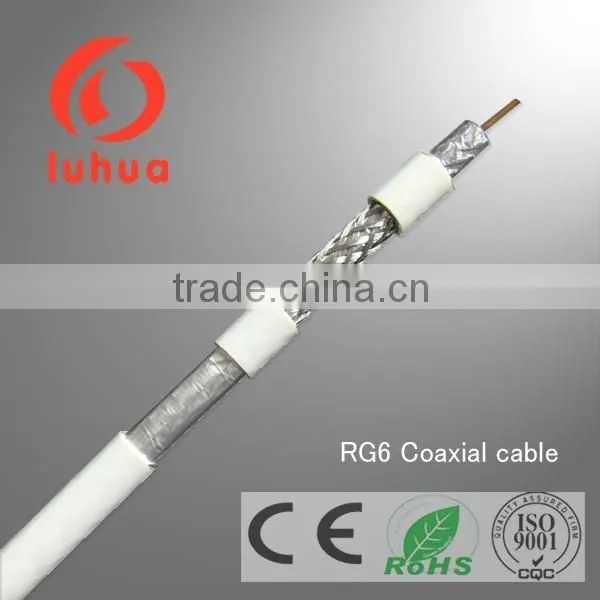

RG6 Series Drop Coaxial cable specifications

Physical Specifications

Nominal Dimensions	Standard	Tri-shielding	Quad-shielding
Conductor	1.02mm( 0.0403 in)	1.02mm( 0.0403 in)	1.02mm( 0.0403 in)
Dielectric	4.57mm(0.180 in)	4.57mm(0.180 in)	4.57mm(0.180 in)
Shielding 1	Al /Pet foil	Bonded Al /Pet foil	Bonded Al /Pet foil
Shielding 2	0.12mm*64 (40% coverage)	0.12mm*80 (60% coverage)	0.12mm*144 (90% coverage)
Shielding 3	-	Al /Pet foil	Al /Pet/Al foil
Shielding 4	-		0.12mm*64 ( 40% coverage)
Jacket	6.91mm( 0.272 in)	7.06mm( 0.278 in)	7.62mm( 0.300 in)
Messenger	1.3mm (0.051 in) Zinc plated steel

Mechanical Characteristics

Mechanical Breaking Strength of Messenger 0.051 inch 185lbs. 823 N

Electrical Characteristics

Impedance ( Ohms) 75±3

Nominal Capacitance (pF/m) 53

Velocity of Propagation 85%

Structural return loss (Db)≥ VHF 22

UHF 20

Attenuation [@68F.(20 Degree centigrade)]

Frequency Mhz	dB/100 ft	dB/100 M
5	0.58	1.90
55	1.60	5.25
211	3.05	10.00
300	3.55	11.64
400	4.15	13.61
450	4.40	14.43
550	4.90	16.08
750	5.65	18.54
865	6.10	20.01
1000	6.55	21.49

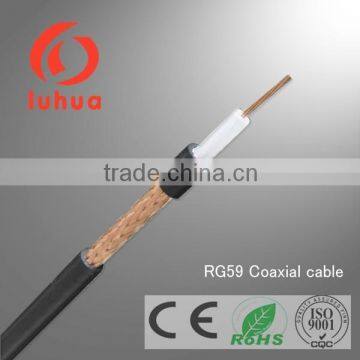

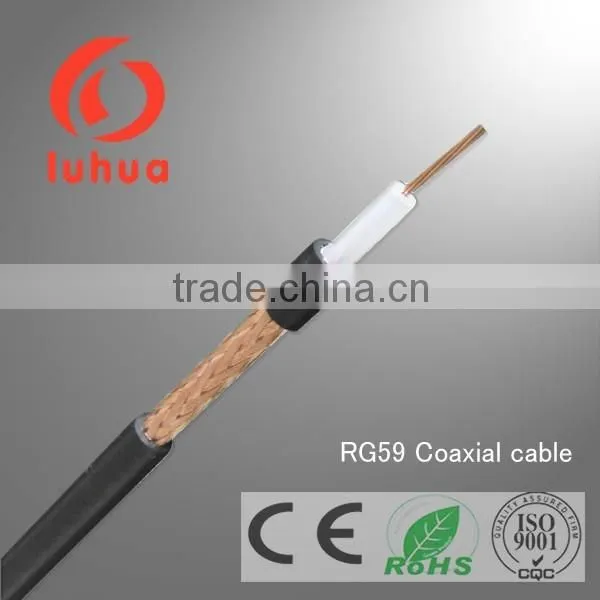

RG59 Series Drop Coaxial cable specifications

Physical Specifications

Nominal Dimensions	Standard	Tri-shielding	Quad-shielding
Conductor	0.81mm( 0.032 in)	0.81mm( 0.032 in)	0.81mm( 0.032 in)
Dielectric	3.66mm(0.144 in)	3.66mm(0.144 in)	3.66mm(0.144 in)
Shielding 1	Al /Pet foil	Bonded Al /Pet foil	Bonded Al /Pet foil
Shielding 2	0.12mm*48( 40% coverage)	0.12mm*64( 60% coverage)	0.12mm*112( 90% coverage)
Shielding 3	-	Al /Pet foil	Al /Pet/Al foil
Shielding 4	-		0.12mm*64( 60% coverage)
Jacket	6.1mm( 0.24 in)	6.1mm( 0.24 in)	6.73mm( 0.265 in)
Messenger	1.3mm (0.051 in) Zinc plated steel

Mechanical Characteristics

Mechanical Breaking Strength of Messenger 0.051 inch 185lbs. 823 N

Electrical Characteristics

Impedance ( Ohms) 75±3

Nominal Capacitance (pF/m) 53

Velocity of Propagation 85%

Structural return loss (Db)≥ VHF 22

UHF 20

Attenuation [@68F.(20Degree centigrade)]

Frequency Mhz	dB/100 ft	dB/100 M
5	0.86	2.82
55	2.05	6.73
211	3.80	12.47
300	4.45	14.60
400	5.10	16.73
450	5.4	17.72
550	5.95	19.52
750	6.97	22.87
865	7.52	24.67
1000	8.12	26.64

Production flow char

Packing

Our Services

1. Your inquiry will be replied in 24hours.

2. 15 years Coaxial Cable's experience,can become your professional purchasing partner.

3. OEM&ODM, any your customized cables we can help you to design and put into product .

4. Sample you need so that to test our company 's ability, we are so glad to free offer it.

5. Protection of your sales area, ideas of design and all your private information is our duty.

Company Introduction

Hangzhou LinAn LuHua Industrial Co.,Ltd is situated in Linglong Industrial Zone, Lin'an, Zhejiang , China, which is a capable enterprise with more than15 years experience both in the production and the management system.

We have the most advanced testing equipment, and we have got some authority certificate of this field, such as the ISO-9001, CE, ROSHS, all of these contribute to insure that we can provide the products with high quality. Our main products contains Coaxial cable, TV cable, Telecommunication cable, RF cable and Video cable, which has been widely used in the supervision system.
