Help CenterRG11 Coaxial Cable With Messenger (Coax Cable RG11,RG11 Cable,RG11) Used for TV Networks
Related Products
-
RG6 Coaxial Cable(RG6 Coax Cable,coaxial Cable,RG6 Coaxial Cable) With and Without Messenger,used for CATV,CCTV,TV SystemNegotiableMOQ: 50 Kilometers -
RG6/U Coaxial Cable(RG6 Coax Cable,coaxial Cable,RG6 Coaxial Cable) With and Without Messenger,used for CATV,CCTV,TV SystemNegotiableMOQ: 50 Kilometers
-
RG6 Coaxial Cable RG6 Coax Cable Coaxial Cable RG6 Coaxial CableNegotiableMOQ: 30 Kilometers
-
RG6 Coaxial Cable(RG6 Cable,coaxial Cable,RG6) With and Without Messenger,used for CATV,CCTV,Main TV Distribution SystemNegotiableMOQ: 50 Kilometers
-
RG6 Coaxial Cable(RG6 Cable,coaxial Cable,RG6) With and Without Messenger,used for CATV,CCTV,Main TV Distribution SystemNegotiableMOQ: 30 Kilometers
Specifications

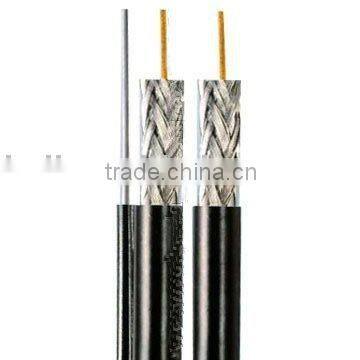

RG11 Coaxial Cable with 1.63CCS conductor,1.83mm messenger,7.11mm insulation and 10.1mmPEKey Specifications :
Center conductor: 1.63mm CCS(21% conductvity)
Dielectric: 7.11mm P/FPE/P
Shielding foil: Al/pet
Outer conductor: 96x 0.16mm Al-Mg Braiding wire
Jacket: 10.1mm PVC (black)
Messenger:1.83mm(steel)
BC: bare copper
Al: aluminum
PVC: polyvinylchlorid
AL/pet: aluminum/polyester tape foil
P/FPE/P: HDPE inter skin, foamed polyethylene and HDPE outer skin
Impedance: 75 ±3 ohms
Notes:
Center conductor: TC, BC, CCA and CCS are available
Insulation: FPE and HDPE
Al-foil: Al/pet, Al/pet bonded, Al/pet/AL and Al/pet/AL bonded are available
Braiding wire: TC, BC, CCA and Al-MG are available
Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16 and 0.18mm available
Braiding net: 48, 64, 72, 80, 96, 112, 128, 144, 160, 176 and 192 available
Braiding coverage: between 30 to 100% available
PVC: 60, 65, 70 and 75 degrees, white, black and other colors are available
Certificates: ISO9000, CE and RoHS
