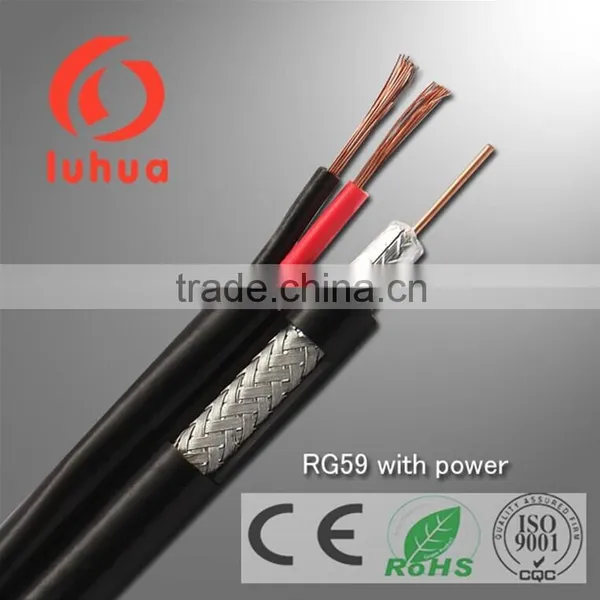

Help CenterCoaxial Cable RG59+2power Cable Siamese Cable for CCTV Camera 75ohms Security Cable Copper Wire Spool With CE RoHS Approved
Related Products
-
Rg6 With Power Cable Coaxial Cable With 1.02BC/4.57FPE/6.8PVC for CATV CCTV MATVmultimedia Ethernet Satellite SystemUS$ 0.29 - 0.78MOQ: 50 Kilometers -
CCTV Camera Cable RG59 Coaxial Cable With Power CableUS$ 35 - 50MOQ: 50 Pieces
-
High Quality RG59B/U+2 Power Composite Coaxial Cable for CCTV SystemUS$ 30 - 50MOQ: 100 Pieces
-
Connected Dual Coax RG6 and Dual Cat. 5e Cable Provide Ease of InstallationUS$ 0.05 - 0.25MOQ: 50 Kilometers
-
RG6/U Coaxial Cable With Utp Cat 5e for Surveillance CameraUS$ 60 - 70MOQ: 100 Pieces
Specifications
· Center conductor: 0.81mm BC
· Dielectric: 3.7mm P/FPE/P
· Shielding foil: Al/pet
· Outer conductor: 128*0.12mm BC
· Jacket: 6.0mm PVC
2-18
Center conductor:2-18 AWG Stranded Copper(7*0.38mm)
Dielectric:solid PE 1.8mm
Jacket:(2-18):4.5mm
BC: bare copper
· Al: aluminum
· PVC: polyvinylchlorid
· AL/pet: aluminum/polyester tape foil
· P/FPE/P: HDPE inter skin, foamed polyethylene and HDPE outer skin
·
Characteristics:
Spark Test:2000VAC
Diectric Strength:Conductor to Shield:2000VDC<wire to wire:1000VDC>
Impedance: 75±3 ohms
Capacitance:16.0pF./Ft.Nom
Velocity of Propagation:84%
DCR:Conductor:10.5Ohms/1000Ft(Nom)Coax
6.6Ohms/1000Ft(Nom) 18AWG
SRL:20dB(10-350MHz)100% Swept Tested
Notes:
Center conductor: TC, BC, CCA and CCS are available
Insulation: FPE and HDPE
Al-foil: Al/pet, Al/pet bonded, Al/pet/AL and Al/pet/AL bonded are available
Braiding wire: TC, BC, CCA and Al-MG are available
Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16 and 0.18mm available
Braiding net: 48, 64, 72, 80, 96, 112 ,128,144 and 192 are available
Braiding coverage: between 30 to 100% available
PVC: 60, 65, 70 and 75 degrees, white, black and other colors are available
Certificates: ISO9001, CE and RoHS
1. Your inquiry will be replied in 24hours.
2. 15 years Coaxial Cable's experience,can become your professional purchasing partner.
3. OEM&ODM, any your customized cables we can help you to design and put into product .
4. Sample you need so that to test our company 's ability, we are so glad to free offer it.
5. Protection of your sales area, ideas of design and all your private information is our duty.
Hangzhou LinAn LuHua Industrial Co.,Ltd is situated in Linglong Industrial Zone, Lin'an, Zhejiang , China, which is a capable enterprise with more than15 years experience both in the production and the management system.
We have the most advanced testing equipment, and we have got some authority certificate of this field, such as the ISO-9001, CE, ROSHS, all of these contribute to insure that we can provide the products with high quality. Our main products contains Coaxial cable, TV cable, Telecommunication cable, RF cable and Video cable, which has been widely used in the supervision system. According to their characteristics, they also can be divided into 2 types:1)RG59,RG6,RG7,RG11, 75 Ohm Coaxial Cable with Solid Polyethylene Insulation ,which is also named Vedio. cable;2)RG59,RG6,RG7,RG11, 75 Ohms Coaxial Cable with Gas-injected Foam Polyethylene Insulation, which is also named RF cable.
As the blueprint made by our company, we are going to enlarge our business on the existing market. Although the foreign trade is not prosperous as 10 years ago, we still attach great importance to the global market.
