Specifications
RG59 CAT5e utp cable lan cable composite cableSYSTEM1.CE ISO RoHS ETL SGS BV
2.low db loss
Products Description
Detailed Features:
Lan Cable with Other Cable

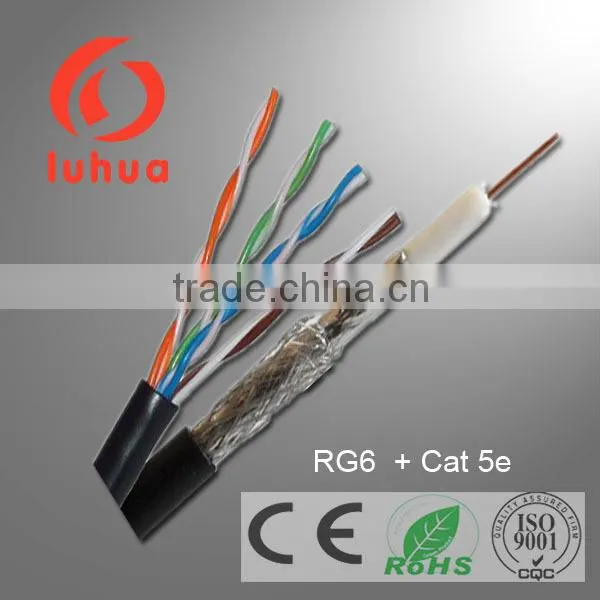

CAT 5e Combined With Coaxial Cable (cat5e+RG6, cat5e+RG59)
coaxial cable RG6 +UTP CAT5e for CATV, CCTV, MATV, ETHERNET, SATELLITE SYSTEM
|
Name
|
S660C/2UTP white
|
|
Center conductor
|
1,02mm BC
|
|
Dielectric
|
4,57mm FPE
|
|
Shielding foil
|
BC
|
|
Outer conductor
|
64x0,16mm BC
|
|
Jacket
|
6,80mm PVC
|
|
Weight
|
47,5kg/km
|
|
Inner conductor DC resistance
|
22Ω/km
|
|
Outer conductor DC resistance
|
15Ω/km
|
|
Capacitance
|
52pF/m
|
|
Impedance
|
75±3Ω
|
|
Screening efficiency
|
>85dB
|
|
Min. bending radius
|
5 x diameter of cable
|
|
Velocity ratio
|
0,85
|
|
CAT5/UTP
|
2x2x0,5mm
|
|
Attenuation
|
dB/100m
|
|
5MHz
|
1,87
|
|
50MHz
|
4,74
|
|
100Mhz
|
6,81
|
|
200MHz
|
9,63
|
|
450Mhz
|
13,95
|
|
860MHz
|
19,91
|
|
1000MHz
|
21,62 |
Customers' specifications are wellcomed
production process
1.305m/wooden reel/carton box
2.500/wooden reel/carton box
or according to the customer request
Paking & Shipping
more products
COXIAL CABLE:
75 OHM: RG6 RG59 RG11 QR540
50 OHM: LMER200,300,400,600
RG58 RG8 RG213, 214, 223
SERIES OF D-FB
COMPOSE CABLE, such as RG59+power cable, RG6+power cable,etc
LAN CABLE:UTP/FTP/SFTP CAT5E, CAT6
TELEPHONE CABLE
Company Overview
Hangzhou LinAn LuHua Industrial Co.,Ltd has more than15 years experience both in the production of coaxial cable.
We are always promoting the development of the enterprise with the Honest Operation since we step into the cable industry, so as to develop our company from a small workshop of more than 10 people to a limited company of more than 100 people.
2 types:
1)RG59,RG6,RG7,RG11, 75 OhmCoaxial Cable with Solid Polyethylene Insulation ,which is also named Vedio. cable
2)RG59,RG6,RG7,RG11, 75 Ohms Coaxial Cable with Gas-injected Foam Polyethylene Insulation, which is also named RF cable.
We believe that Chinese enterprise have the potential to accept the challenges, so can our company. Feel free to contact us when you have any problems about the products. Calls, letters, visits are welcomed.
