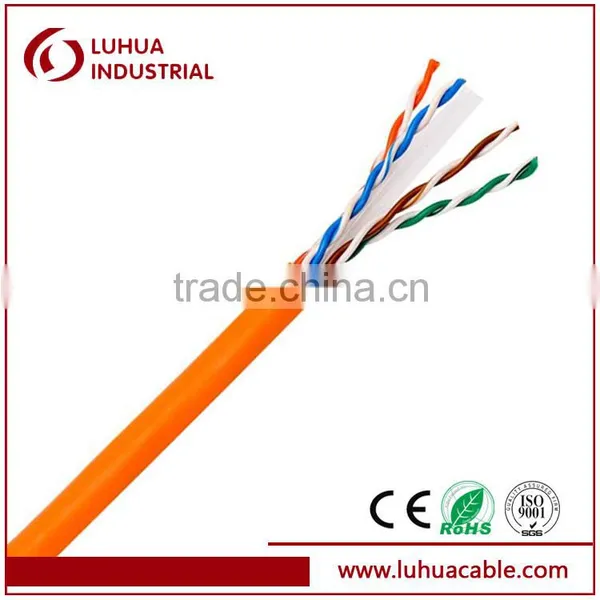

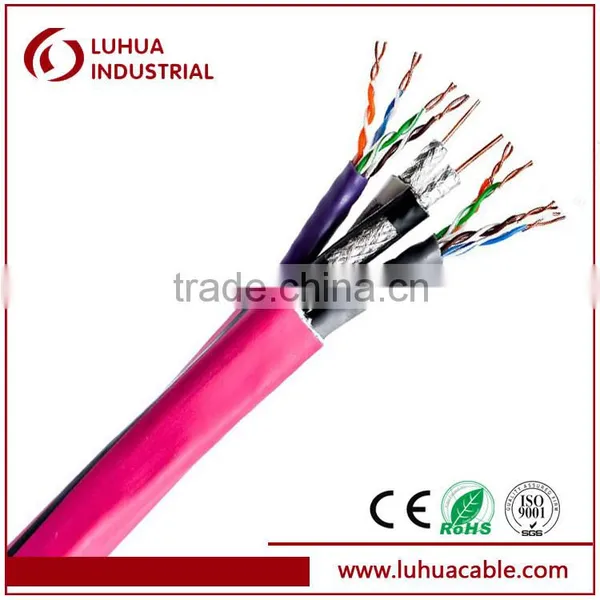

LAN cable UTP/FTP CAT5e UTP/SFTP CAT6/CAT6e
- 5000 Kilometer / Kilometers per Month
- Shanghai /Ningbo
- T/T
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Luhua or OEM | Model Number: | LAN cable coaxial cable CAT5e |
| Type: | Cat 5e | Number of Conductors: | 8 |
Product Description

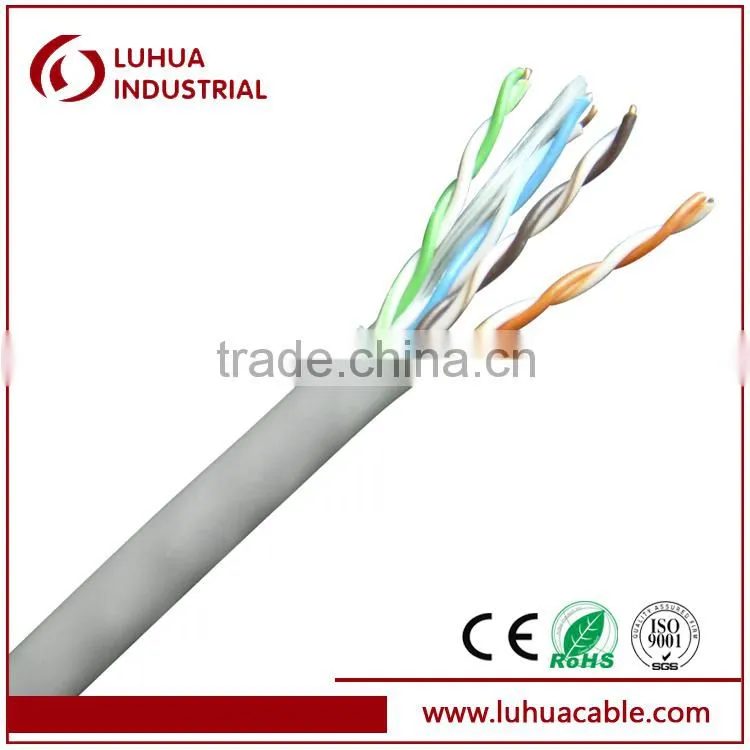

UTP CAT5e
Application
100 Base-TX,100 Base-T4
100VG-AnyLAN
100 Base-T,(Gigabit Ethernet),ATM
Product Description
Rated temperature: 60℃,75℃,90℃
Reference Standard:UL444,TIA/EIA-568B
Bare copper conductor
RoHS complied PVC,PE or LSZH Jacket
Complies to TIA/EIA-568B&ISO/IEC11801
Cable construction
Item No. | LH501 | LH502 | LH503 | LH504 | LH505 |
Application | Indoor | Indoor | Outdoor | Outdoor | Outdoor |
Conductor Dia | 0.50mm | 0.51mm | 0.51mm | 0.51mm | 0.51mm |
Core Dia | 0.91mm | 0.91mm | 0.91mm | 0.91mm | 0.91mm |
No.of Pairs | 4 | 4 | 4 | 4 | 4 |
Nom.OD(mm) | 5.1mm | 5.1mm | 5.1mm | 5.1mm | 5.1mm |
Jacket | PVC | PVC | PE | PVC+PE | LSZH |
Remark |
|
| Jelly filled | Water block Tape |
|
Electrical Characteristics
Frequency(MHz) | 1 | 4 | 8 | 10 | 16 | 25 | 31.25 | 62.5 | 100 | 155 | 200 | 310 | 350 |
Impedance(Ω) | 100±15 | 100±18 | 100±22 | ||||||||||
RL(dB) | 20 | 23 |
| 25 | 25 | 25 | 24 | 22 | 20 | 19 | 19 | 18 | 17 |
Attenuation(dB/100m) | 2.0 | 4.1 |
| 5.8 | 6.5 | 8.2 | 10.4 | 17.0 | 22 | 28.1 | 28.1 | 41.8 | 44.9 |
NEXT(dB/100m) | 65.3 | 56.3 |
| 51.8 | 50.3 | 47.3 | 44.3 | 38.4 | 35.3 | 33.0 | 33.0 | 28.0 | 27.0 |
ELFEXT(dB/100m) | 63.8 | 51.7 |
| 45.7 | 43.8 | 39.7 | 35.8 | 27.8 | 23.8 | 20.0 | 20.0 | 14.0 | 13.0 |
PS NEXT(dB/100m) | 62.3 | 53.3 |
| 48.8 | 47.3 | 44.2 | 41.3 | 35.4 | 32.3 | 29.0 | 29.0 | 25.0 | 24.0 |
PSELFEXT(dB/100m) | 60.8 | 48.7 |
| 42.7 | 40.8 | 36.7 | 32.8 | 24.8 | 20.8 | 17.0 | 17.0 | 11.0 | 10.0 |
PropagationSpeed(m/s) | 0.65c | ||||||||||||
1. Your inquiry will be replied in 24hours.
2. 15 years Coaxial Cable's experience,can become your professional purchasing partner.
3. OEM&ODM, any your customized cables we can help you to design and put into product .
4. Sample you need so that to test our company 's ability, we are so glad to free offer it.
5. Protection of your sales area, ideas of design and all your private information is our duty
Hangzhou LinAn Luhua Industrial Co.,LTD, was established in 1993, situated in Linglong Industrial Zone,LinAn , Zhejiang province , China. We had 10 people and devoted to coaxial cable.
Since we enter the communication cable industry,we are always promoting the development of the enterprise from technical , service and the honeys operation, and always keep developing the new cable products to make sure that we can meet the customer's requirements, and till now, we have three
workshops for the COAXIAL CABLE, LAN CABLE, and FIBER CABLE, and we can make:
- Fiber optical cable (indoor fiber cable for FTTH Cable&outdoor fiber cable for GY series)
- Coaxial cable (RG series,JIS series,D-FB series RF Cables)

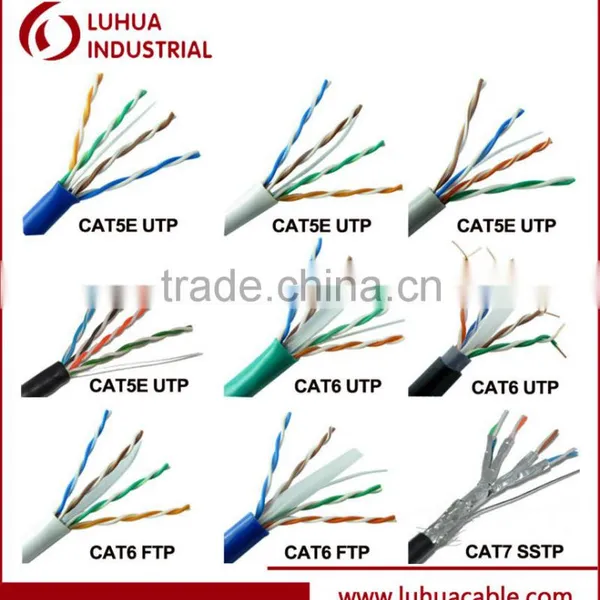

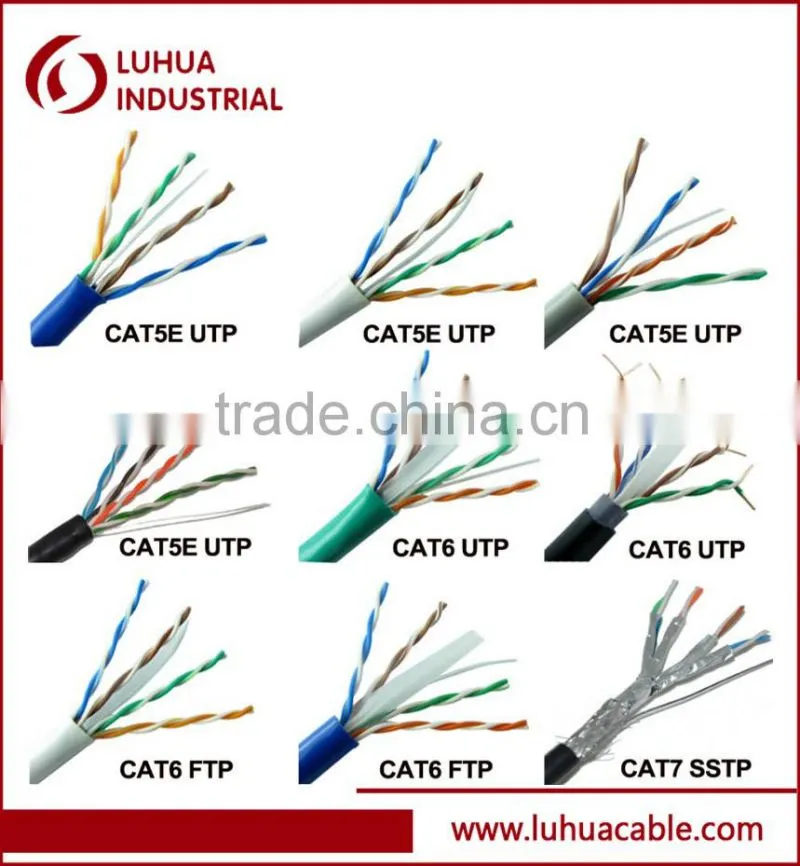

- Lan cable ( UTP/FTP/SFTP CAT5e/CAT6/CAT6A,etc)
