Specifications
1.High quality utp cat5e lan cable2.15 year cable experience
3.ISO9001,CE,ROHS
4.UTP CAT 5e Lan cable Used in Internet.

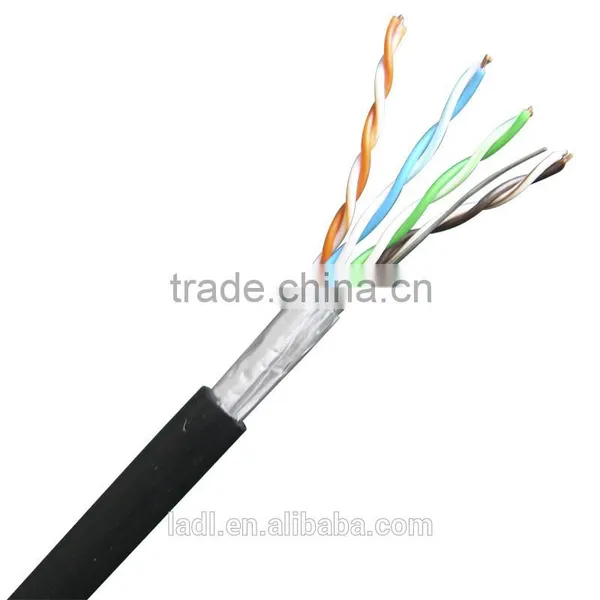

FTP CAT 5e Lan cable/ Network cable
1.OEM/ODM
2.24AWG The best cost-effective
3.15 years lan cable experience
4. ISO9001/CE/ROHS/UL
5. cat5e utp lan cable
BC: Bare Copper CCS: Copper Clad Steel
CCA: Copper Clad Aluminium P: Pairs
specifaications :
1) 4Px0.53mm BC /CCS /CCA Conductor + 1.0mm PE Insulation +Al Foil + Braiding Shield +0.51mm BC /CCS /CCA Drain Wire+6.3mm PVC Jacket
2) Customers' specifications are welcomed.
details:
Conductor:
Material:Bare copper
Number of pairs:4pairs
AWG:24awg
Conductor diameter:0.515±0.003mm
Insulation:
Material:HDPE and FRPE
Diameter:1.02±0.005mm
Average thickness:0.212mm
Minimum point thikness:0.2095mm
First screen:aluminum mylar shield(superposition rate:25%)
Overall screen:80/0.1mm TC braid shied(coverage:60%)
Braiding shield 48/64/96/112x0.12mm or 0.15mm or 0.16mm,braid material,AL-MG,CCA,CCS,copper or tinned copper for braid
FR/PVC or LSOH jacket
Jacket rip cord:optional
Sheath:
Material:PVC or LSOH
Nominal diameter:6.0±0.2mm
Average thickness:0.50mm
Operating temperature:-20 to 75°C
Minimum bend radius (install):(8*OD)
Flame test:CMX,CM,and IEC60332-1
Reference standard:TIA/EIA568B and IEC/ISO11801
Application: 10 Base-T /100 Base-TX
100VG-AnyLan /1000 Base-T(Gigabit Ethernet)
155 Mbps ATM /622 Mbps ATM
1. Your inquiry will be replied in 24hours.
2. 15 years Coaxial Cable's experience,can become your professional purchasing partner.
3. OEM&ODM, any your customized cables we can help you to design and put into product .
4. Sample you need so that to test our company 's ability, we are so glad to free offer it.
5. Protection of your sales area, ideas of design and all your private information is our duty.
Hangzhou LinAn LuHua Industrial Co.,Ltd is situated in Linglong Industrial Zone, Lin'an, Zhejiang , China, which is a capable enterprise with more than15 years experience both in the production and the management system. It is adjacent to Shanghai, thus came the name ‘The Back Garden of the Oriental Pearl”, whose former name is Lin’an Physical High-foaming Cable Co., Ltd, which is a welfare company affiliated to the civil government.
We are always promoting the development of the enterprise with the Honest Operation since we step into the cable industry, so as to develop our company from a small workshop of more than 10 people to a limited company of more than 100 people.
At present, we have 2 assembly lines, one of them is for the center conductor equipment, and the other is the sheathing equipment, which contains more than 40 sets of high-speed braiding machines and 60 sets of braiding machines, and the productivity has been raised from 3000km/month to 6000km/month.
We have the most advanced testing equipment, and we have got some authority certificate of this field, such as the ISO-9001, CE, ROSHS, all of these contribute to insure that we can provide the products with high quality. Besides, we have improved our management system by attracting some staff with rich experience. You may rest assured that we can offer you the products both with high quality and productivity, and we have enjoy many approval and affirmation from home and abroad Our main products contains Coaxial cable, TV cable, Telecommunication cable, RF cable and Video cable, which has been widely used in the supervision system. According to their characteristics, they also can be divided into 2 types:1)RG59,RG6,RG7,RG11, 75 Ohm Coaxial Cable with Solid Polyethylene Insulation ,which is also named Vedio. cable;2)RG59,RG6,RG7,RG11, 75 Ohms Coaxial Cable with Gas-injected Foam Polyethylene Insulation, which is also named RF cable. Currently, the high-foaming coaxial cable is still the kind of cable both with high performance in transmission system and reasonable price, which is also can be demonstrated by the testing statistics in the band of Vedio, RF and Microwave.
As the blueprint made by our company, we are going to enlarge our business on the existing market. Although the foreign trade is not prosperous as 10 years ago, we still attach great importance to the global market. And we think that if we want to gain more shares in the global market, we need to shift our operation models from OEM to our own brand, so as to change from MADE IN CHINA to MADE BY CHINA ,then we can get out of the vicious competition and make a more brighter future.
We believe that Chinese enterprise have the potential to accept the challenges, so can our company. Feel free to contact us when you have any problems about the products. Calls, letters, visits are welcomed.
