Help CenterUTP/FTP/SFTP CAT6 LAN Cable for Network Application
Related Products
-
Hangzhou Manufacturer High Quality CAT6 UTP Cable LAN Cable Ethernet Cable With Competitive Price (CE RoHS ISO9001)US$ 0.08 - 0.38MOQ: 50000 Meters -
Fluke Test Passing UTP CAT5e LAN Cable 100 OHMUS$ 0.08 - 0.24MOQ: 50000 Meters
-
Fluke Test Passing FTP CAT6 LAN Cable 100 OHMUS$ 0.08 - 0.24MOQ: 50000 Meters
-
CMR Rated UTP CAT6 Lan CableUS$ 28.5 - 55MOQ: 100 Pieces
-
Fluke Test Passing SFTP CAT5e LAN Cable 100 OHMUS$ 0.08 - 0.24MOQ: 50000 Meters
FTP CAT6
Application
100 Base-TX,100VG-AnyLAN
1000 Base-T(Gigabit Ethernet),ATM
Product Description
Rated temperature: 60℃,75℃,90℃
Reference Standard:UL444,TIA/EIA-568B
Bare copper conductor
RoHS complied PVC,PE or LSZH Jacket
Complies to TIA/EIA-568B&ISO/IEC11801
Cable construction
Item No. | LH801 | LH802 | LH803 | LH804 | LH805 |
Application | Indoor | Outdoor | Outdoor | Outdoor | Outdoor |
Conductor Dia | 0.575mm | 0.575mm | 0.575mm | 0.575mm | 0.585mm |
Core Dia | 1.04mm | 1.04mm | 1.04mm | 1.04mm | 1.04mm |
No.of Pairs | 4 | 4 | 4 | 4 | 4 |
Nom.OD(mm) | 6.3mm | 6.3mm | 7.4mm | 6.3mm | 6.5mm |
Shielding | Al foil | ||||
Jacket | PVC | PVC | PVC+PE | LSZH | PE |
Remark |
| Jelly filled | Water block Tape |
| 1.3mm steel messenger |
Electrical Characteristics
Frequency(MHz) | 1 | 4 | 8 | 10 | 16 | 25 | 31.25 | 62.5 | 100 | 155 | 200 | 300 | 350 | 450 | 500 | 550 |
Impedance(Ω) | 100±15 | 100±18 | 100±22 | |||||||||||||
RL(dB) | 20 | 23 | 25 | 25 | 25 | 24 | 24 | 22 | 21 | 21 | 21 | 17 | 16 | 16 | 15 | 15 |
Attenuation(dB/100m) | 1.9 | 3.7 | 5.3 | 5.9 | 7.5 | 9.5 | 10.6 | 15.4 | 19.8 | 25.1 | 29.0 | 36.4 | 39.8 | 46.3 | 48.9 | 51.8 |
NEXT(dB/100m) | 74.3 | 65.3 | 60.3 | 59.3 | 56.3 | 53.4 | 51.9 | 47.4 | 44.3 | 41.5 | 39.8 | 37.2 | 36.2 | 34.5 | 33.8 | 33.2 |
ELFEXT(dB/100m) | 67.8 | 55.8 | 49.7 | 47.8 | 43.7 | 39.8 | 37.9 | 31.9 | 27.8 | 23.9 | 21.8 | 18.2 | 16.9 | 14.7 | 13.8 | 12.9 |
PS NEXT(dB/100m) | 72.3 | 63.3 | 58.8 | 57.3 | 54.3 | 51.4 | 49.9 | 45.4 | 42.3 | 39.5 | 37.8 | 35.2 | 34.2 | 32.5 | 31.8 | 31.2 |
PSELFEXT(dB/100m) | 64.8 | 57.7 | 46.7 | 44.8 | 40.7 | 36.8 | 34.9 | 28.8 | 24.8 | 20.9 | 18.7 | 15.2 | 13.9 | 11.7 | 10.8 | 9.9 |
Propagation Speed(m/s) | 0.65c |
|
|
| ||||||||||||

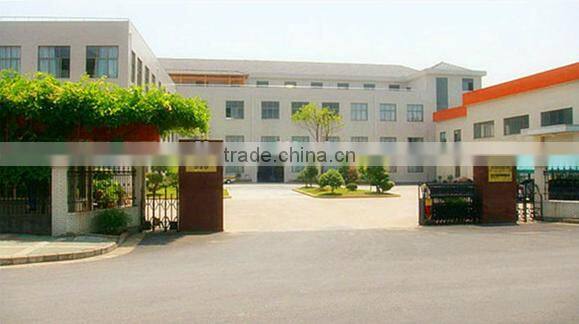

Hangzhou LinAn LuHua Industrial Co.,Ltd is situated in Linglong Industrial Zone, Lin'an, Zhejiang
province , China.
strength

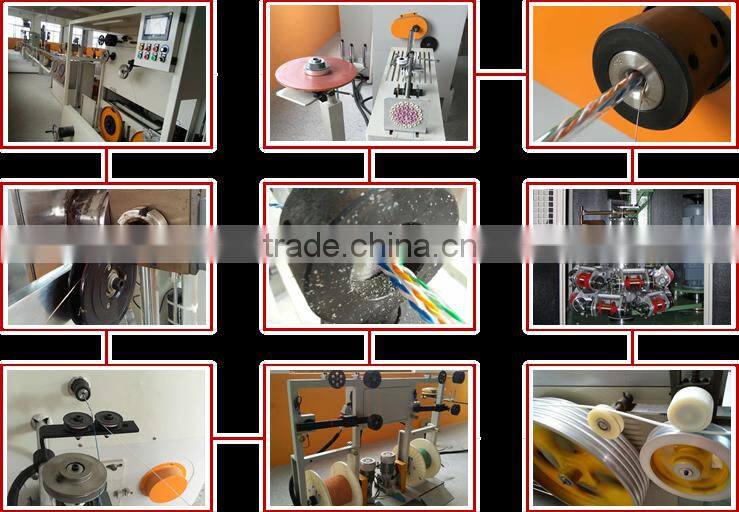

Our company is a capable enterprise with more than15 years experiences both in the production
and the management system, We have the most advanced testing equipment, and got some
authority certificate of this field,such as the ISO-9001, CE, ROSHS, all of these contribute
to insure that we can provide the products with high quality.

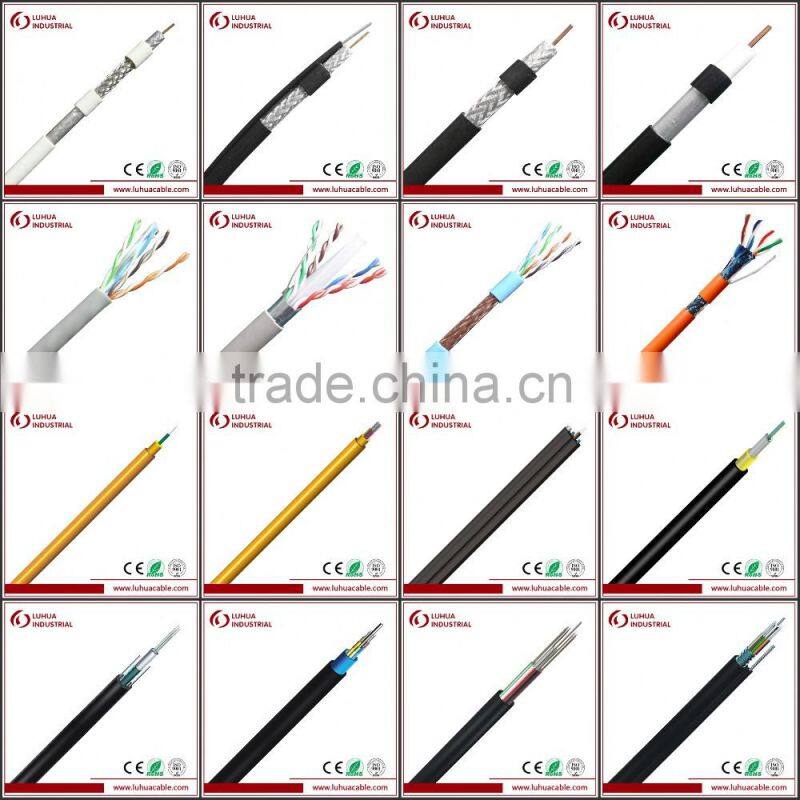

Our cable products including:
Fiber optical cable (indoor fiber cable for FTTH Cable&outdoor fiber cable for GY series)
Coaxial cable (RG series,JIS series,D-FB series RF Cables)
Lan cable ( UTP/FTP/SFTP CAT5e/CAT6/CAT6A,etc)
