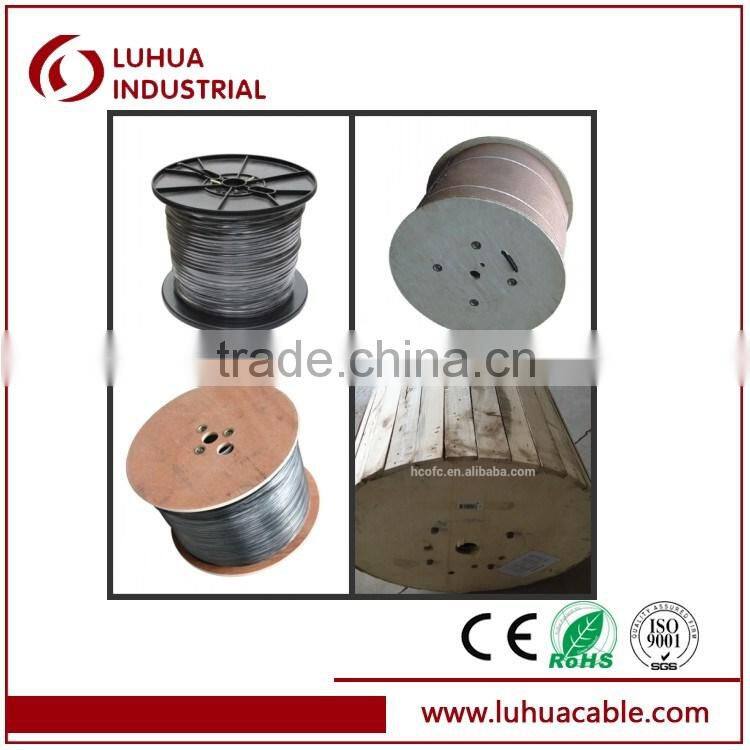

CE standard MATV RG11 Drop Coaxial cable with messenger

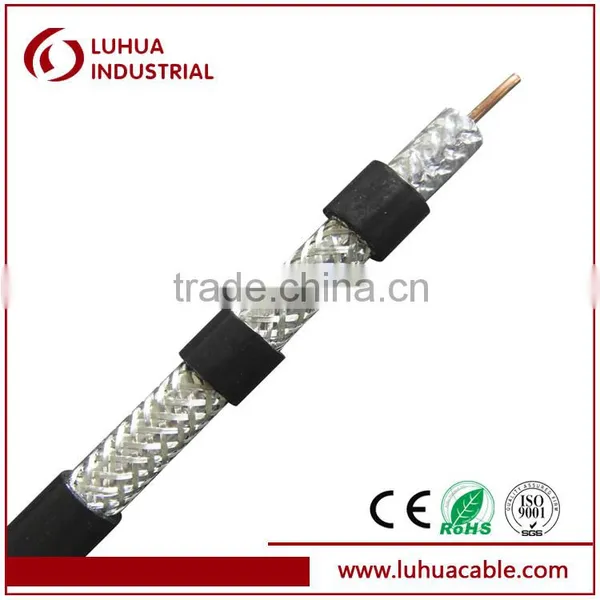

Physical Specifications
Nominal Dimensions | Standard
| Tri-shielding
| Quad-shielding
|
Conductor | 1.63mm( 0.064 in) | 1.63mm( 0.064 in) | 1.63mm( 0.064 in) |
Dielectric | 7.11mm(0.280 in) | 7.11mm(0.280 in) | 7.11mm(0.280 in) |
Shielding 1 | Al /Pet foil | Bonded Al /Pet foil | Bonded Al /Pet foil |
Shielding 2 | 0.12mm*80 (40% coverage) | 0.16mm*96 (60% coverage) | 0.16mm*168 (90% coverage) |
Shielding 3 | - | Al /Pet foil | Al /Pet/Al foil |
Shielding 4 | - |
| 0.16mm*80 ( 40% coverage) |
Jacket | 10.03mm( 0.395 in) | 10.16mm( 0.400 in) | 10.29mm( 0.405 in) |
Messenger | 1.83mm (0.072 in) Zinc plated steel | ||
Mechanical Characteristics
Mechanical Breaking Strength of Messenger 0.072 inch 365lbs. 1624 N
Electrical Characteristics
Impedance ( Ohms) 75±3
Nominal Capacitance (pF/m) 53
Velocity of Propagation 85%
Structural return loss (Db)≥ VHF 22
UHF 20
Attenuation [@68F.(20Degree centigrade)]
Frequency Mhz | dB/100 ft | dB/100 M |
5 | 0.38 | 1.25 |
55 | 0.96 | 3.15 |
211 | 1.90 | 6.23 |
300 | 2.25 | 7.38 |
400 | 2.60 | 8.53 |
450 | 2.75 | 9.02 |
550 | 3.04 | 9.97 |
750 | 3.65 | 11.97 |
865 | 3.98 | 13.05 |
1000 | 4.35 | 14.27 |
