75OHM Coaxial Cable 11/17VATC/PATC/VRTC With High Quality and Low Attenuation(ISO9001/ROHS/CE)
US$ 0.05 - 0.25
MOQ: 50000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LUHUA or OEM
Model Number:
11/17VATC/PATC/VRTC
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
75OHM Coaxial Cable 19/21/24VATC/PATC/VRTC With High Quality and Low Attenuation(ISO9001/ROHS/CE)US$ 0.05 - 0.25MOQ: 50000 Meters -
75OHM Coaxial Cable QR540/540JCA/540messenger for CATVUS$ 0.8 - 1.2MOQ: 5000 Meters
-
Well Performed QR500 Coaxial Cable 500 Trunk Cable CATV Cable 75ohms/CE RoHS ISO9001 LinanUS$ 0.08 - 0.38MOQ: 5000 Meters
-
75 OHM QR540 JCA Series Trunk Coaxial Cable for CCTV CATV TV in Communication /CE RoHS ISO9001 Hangzhou ManufactureUS$ 0.8 - 1.2MOQ: 50000 Meters
-
Low Loss 75 Ohms Coaxial Cable RG58 With 0.94mm BC 2.95mm FPE 4.95mm Jacket CE RoHS ISO9001 ApprovedUS$ 0.08 - 0.35MOQ: 50000 Meters
Place of Origin
Zhejiang, China
Brand Name
LUHUA or OEM
Model Number
11/17VATC/PATC/VRTC
Type
Coaxial
Number of Conductors
1
PRODUCT SPECIFICTION
| 11 VATC/PATC/VRTC | 17 VATC/PATC/VRTC | 19 VATC/PATC/VRTC | 21 VATC/PATC/VRTC | 24 VATC/PATC/VRTC | ||
| conductor | material | BC/CCS | BC | BC/CCS | BC/CCS | BC/CCS |
| nom.dia | 1.7 mm | 1.13 mm | 1.02 mm | 1.02 mm | 0.80 mm | |
| dielectric | material | foam PE | foam PE | foam PE | foam PE | foam PE |
| nom.dia | 7.0 mm | 4.85 mm | 4.70 mm | 4.60 mm | 3.70 mm | |
| shield | material | Al foil/Cu foil+TC braiding | Al foil/Cu foil+TC braiding | Al foil+TC braiding+Al foil Cu foil+TC braiding+Cu foil | ||
| coverage | 45%-90% | 35%-90% | 35%-90% | 35%-90% | 35%-90% | |
| jacket | material | PVC/PE | PVC/PE | PVC/PE | PVC/PE | PVC/PE |
| nom.thick | 1.07 mm | 0.8 mm | 0.80 mm | 0.80 mm | 0.80 mm | |
| nom.dia | 10.3 mm | 6.8 mm | 6.70 mm | 6.80 mm | 5.85 mm | |
APPLICATION

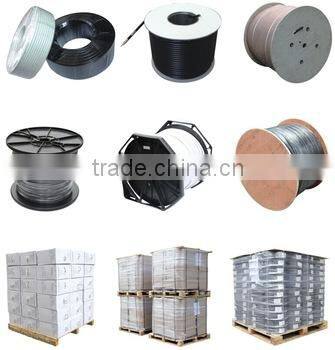

PACKING
FACTORY INFORMATION
Hangzhou LinAn LuHua Industrial Co.,Ltd is situated in Linglong Industrial Zone, Lin'an, Zhejiang , China.
- strength
Is a capable enterprise with more than15 years experiences both in the production and the management system, We have the most advanced testing equipment, and got some authority certificate of this field, such as the ISO-9001, CE, ROSHS, all of these contribute to insure that we can provide the products with high quality.
Our main products contains Coaxial cable, TV cable, Telecommunication cable, RF cable and Video cable, which has been widely used in the supervision system.
