RG 6 Coaxial Cable for CCTV CATV

Name: RG 6 Coaxial Cable for CCTV CATV
Brand: Luhua
SKU: 129642555

RG 6 Coaxial Cable for CCTV CATV thumbnail-1

RG 6 Coaxial Cable for CCTV CATV photo-1

US$ 0.05 - 0.25 MOQ: 50000 Meters

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Luhua

Model Number:

RG 6

Contact Supplier Request Quote Chat Now

Zhejiang Luhua Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Mingbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Luhua

Model Number RG 6

Type Coaxial

Number of Conductors 1

Product Description

RG6 Series Drop Coaxial cable specifications

Physical Specifications

Nominal Dimensions	Standard	Tri-shielding	Quad-shielding
Conductor	1.02mm( 0.0403 in)	1.02mm( 0.0403 in)	1.02mm( 0.0403 in)
Dielectric	4.57mm(0.180 in)	4.57mm(0.180 in)	4.57mm(0.180 in)
Shielding 1	Al /Pet foil	Bonded Al /Pet foil	Bonded Al /Pet foil
Shielding 2	0.12mm*64 (40% coverage)	0.12mm*80 (60% coverage)	0.12mm*144 (90% coverage)
Shielding 3	-	Al /Pet foil	Al /Pet/Al foil
Shielding 4	-		0.12mm*64 ( 40% coverage)
Jacket	6.91mm( 0.272 in)	7.06mm( 0.278 in)	7.62mm( 0.300 in)
Messenger	1.3mm (0.051 in) Zinc plated steel

Mechanical Characteristics

Mechanical Breaking Strength of Messenger 0.051 inch 185lbs. 823 N

Electrical Characteristics

Impedance ( Ohms) 75±3

Nominal Capacitance (pF/m) 53

Velocity of Propagation 85%

Structural return loss (Db)≥ VHF 22

UHF 20

Attenuation [@68F.(20 Degree centigrade)]

Frequency Mhz	dB/100 ft	dB/100 M
5	0.58	1.90
55	1.60	5.25
211	3.05	10.00
300	3.55	11.64
400	4.15	13.61
450	4.40	14.43
550	4.90	16.08
750	5.65	18.54
865	6.10	20.01
1000	6.55	21.49

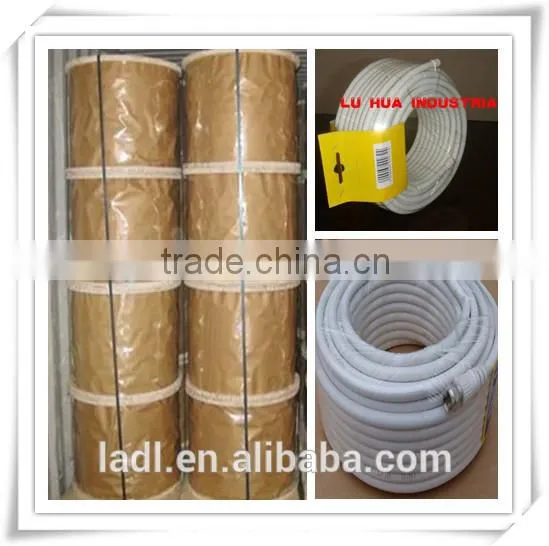

Packaging & Shipping

Company Introduction

Hangzhou LinAn LuHua Industrial Co.,Ltd is situated in Linglong Industrial Zone, Lin'an, Zhejiang , China, which is a capable enterprise with more than15 years experience both in the production and the management system. It is adjacent to Shanghai, thus came the name ‘The Back Garden of the Oriental Pearl”, whose former name is Lin’an Physical High-foaming Cable Co., Ltd, which is a welfare company affiliated to the civil government.

We are always promoting the development of the enterprise with the Honest Operation since we step into the cable industry, so as to develop our company from a small workshop of more than 10 people to a limited company of more than 100 people.

At present, we have 2 assembly lines, one of them is for the center conductor equipment, and the other is the sheathing equipment, which contains more than 40 sets of high-speed braiding machines and 60 sets of braiding machines, and the productivity has been raised from 3000km/month to 6000km/month.

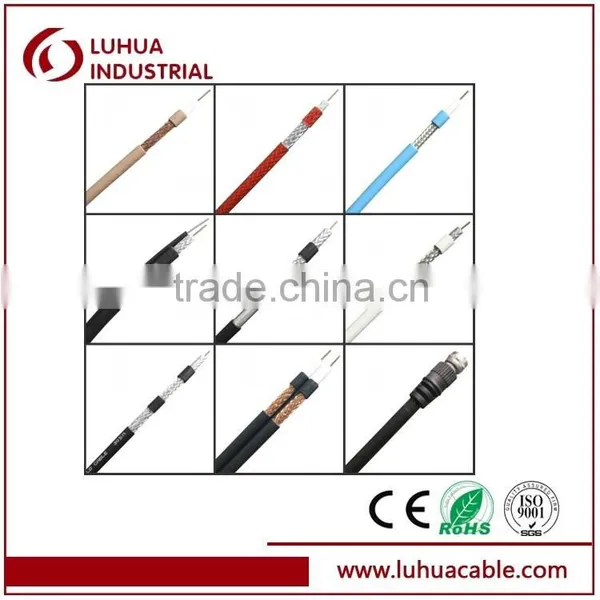

We have the most advanced testing equipment, and we have got some authority certificate of this field, such as the ISO-9001, CE, ROSHS, all of these contribute to insure that we can provide the products with high quality. Besides, we have improved our management system by attracting some staff with rich experience. You may rest assured that we can offer you the products both with high quality and productivity, and we have enjoy many approval and affirmation from home and abroad Our main products contains Coaxial cable, TV cable, Telecommunication cable, RF cable and Video cable, which has been widely used in the supervision system. According to their characteristics, they also can be divided into 2 types:1)RG59,RG6,RG7,RG11, 75 Ohm Coaxial Cable with Solid Polyethylene Insulation ,which is also named Vedio. cable;2)RG59,RG6,RG7,RG11, 75 Ohms Coaxial Cable with Gas-injected Foam Polyethylene Insulation, which is also named RF cable. Currently, the high-foaming coaxial cable is still the kind of cable both with high performance in transmission system and reasonable price, which is also can be demonstrated by the testing statistics in the band of Vedio, RF and Microwave.

As the blueprint made by our company, we are going to enlarge our business on the existing market. Although the foreign trade is not prosperous as 10 years ago, we still attach great importance to the global market. And we think that if we want to gain more shares in the global market, we need to shift our operation models from OEM to our own brand, so as to change from MADE IN CHINA to MADE BY CHINA ,then we can get out of the vicious competition and make a more brighter future.

We believe that Chinese enterprise have the potential to accept the challenges, so can our company. Feel free to contact us when you have any problems about the products. Calls, letters, visits are welcomed.
