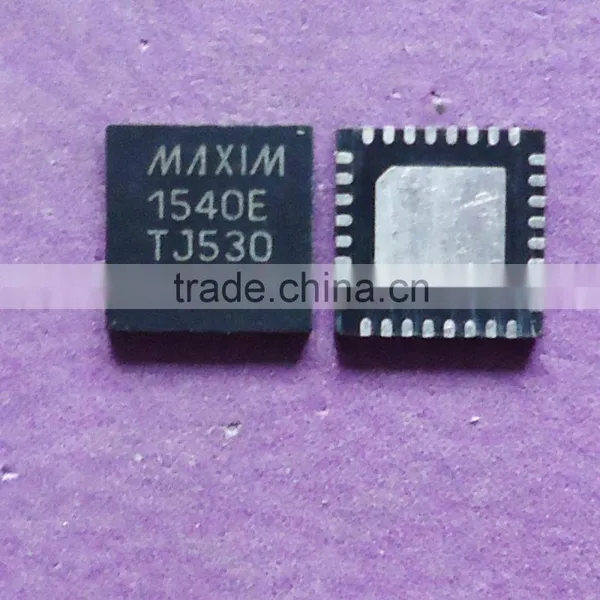

Help CenterMAX1540ETJ MAX1540E 1540E Dual Step-Down Controllers With Saturation Protect, Dynamic Output, and Linear Regulator
Related Products
-
MAX1541ETL MAX1541 Dual Step-Down Controllers With SaturationProtection, Dynamic Output, and Linear RegulatorUS$ 0.5 - 2MOQ: 1 Piece -
MAX1544ETL MAX1544 Dual-Phase, Quick-PWM Controller for AMD Hammer CPU Core Power SuppliesUS$ 0.5 - 2MOQ: 1 Piece
-
MAX1631AEAI MAX1631EAI MAX1631 Multi-Output, Low-Noise Power-Supply Controller for Notebook ComputersUS$ 0.5 - 2MOQ: 1 Piece
-
MAX1632EAI MAX1632 Multi-Output, Low-Noise Power-Supply Controller for Notebook ComputersUS$ 0.5 - 2MOQ: 1 Piece
-
MAX9684AETN MAX9684AUS$ 0.5 - 2MOQ: 1 Piece
The MAX1540/MAX1541 dual pulse-width modulation (PWM) controllers provide the high efficiency, excellent transient response, and high DC-output accuracy necessary for stepping down high-voltage batteries to generate low-voltage chipset and RAM power supplies in notebook computers.
The Maxim proprietary Quick-PWM™ controllers are free running, constant on-time with input feed forward. This configuration provides ultra-fast transient response, wide input-output (I/O) differential range, low supply current, and tight load-regulation characteristics. The controllers can accurately sense the inductor current across an external current-sense resistor in series with the output to ensure reliable overload and inductor saturation protection. Alternatively, the controllers can use the synchronous rectifier itself or lossless inductor current-sensing methods to provide overload protection with lower power dissipation.
For a single step-down PWM controller with inductor-saturation protection, external-reference input voltage, and dynamically selectable output voltages, refer to the MAX1992/MAX1993 data sheet.
Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.
Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
