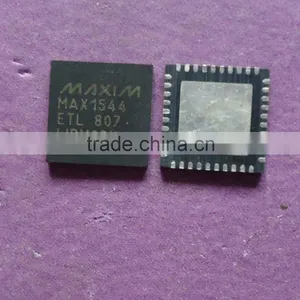

Help CenterMAX1544ETL MAX1544 Dual-Phase, Quick-PWM Controller for AMD Hammer CPU Core Power Supplies
Related Products
-
MAX1631AEAI MAX1631EAI MAX1631 Multi-Output, Low-Noise Power-Supply Controller for Notebook ComputersUS$ 0.5 - 2MOQ: 1 Piece -
MAX1632EAI MAX1632 Multi-Output, Low-Noise Power-Supply Controller for Notebook ComputersUS$ 0.5 - 2MOQ: 1 Piece
-
MAX9684AETN MAX9684AUS$ 0.5 - 2MOQ: 1 Piece
-
MAX1645BEEI MAX1645B Advanced Chemistry-Independent, Level 2 Battery Charger With Input Current LimitingUS$ 0.5 - 2MOQ: 1 Piece
-
MAX1711EEG MAX1711 High-Speed, Digitally Adjusted Step-Down Controllers for Notebook CPUsUS$ 0.5 - 2MOQ: 1 Piece
The MAX1544 is a dual-phase, Quick-PWM™, step-down controller for AMD Hammer™ CPU core supplies. Dual-phase operation reduces input ripple current requirements and output voltage ripple while easing component selection and layout difficulties. The Quick-PWM control scheme provides instantaneous response to fast load-current steps. The MAX1544 includes active voltage positioning with adjustable gain and offset, reducing power dissipation and bulk output capacitance requirements.
The MAX1544 is intended for two different notebook CPU core applications: stepping down the battery directly or stepping down the 5V system supply to create the core voltage. The single-stage conversion method allows this device to directly step down high-voltage batteries for the highest possible efficiency. Alternatively, two-stage conversion (stepping down the 5V system supply instead of the battery) at a higher switching frequency provides the minimum possible physical size.
The MAX1544 complies with AMD's desktop and mobile CPU specifications. The switching regulator features soft-start and power-up sequencing, and soft-shutdown. The MAX1544 also features independent four-level logic inputs for setting the suspend voltage (S0-S1).
The MAX1544 includes output undervoltage protection, thermal protection, and voltage regulator power-OK (VROK) output. When any of these protection features detect a fault, the controller shuts down. Additionally, the MAX1544 includes selectable overvoltage protection.
The MAX1544 is available in a low-profile, 40-pin 6mm x 6mm thin QFN package. For other CPU platforms, refer to the pin-to-pin compatible MAX1519/MAX1545 and MAX1532/MAX1547 data sheets.
