Specifications
It adopts stainless steel plate for the support and back plate each contacting positions,

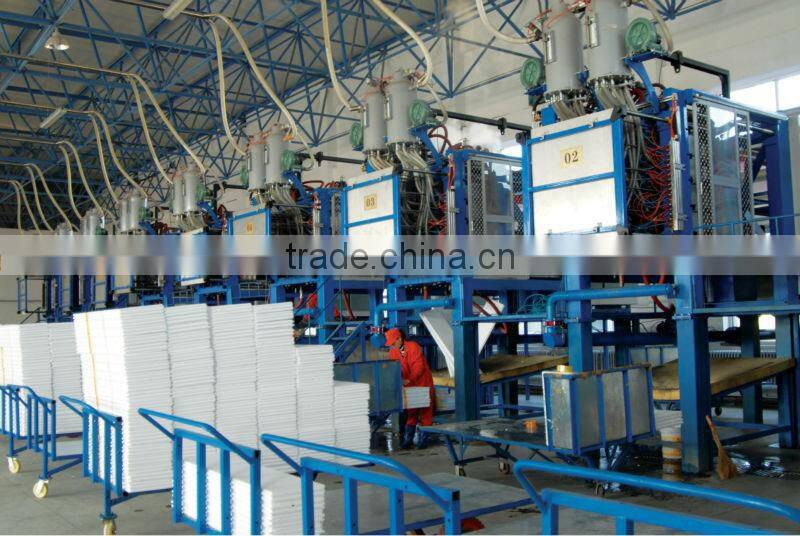

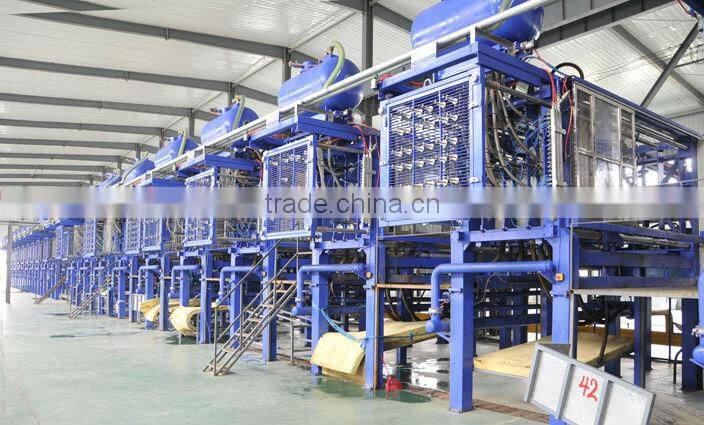

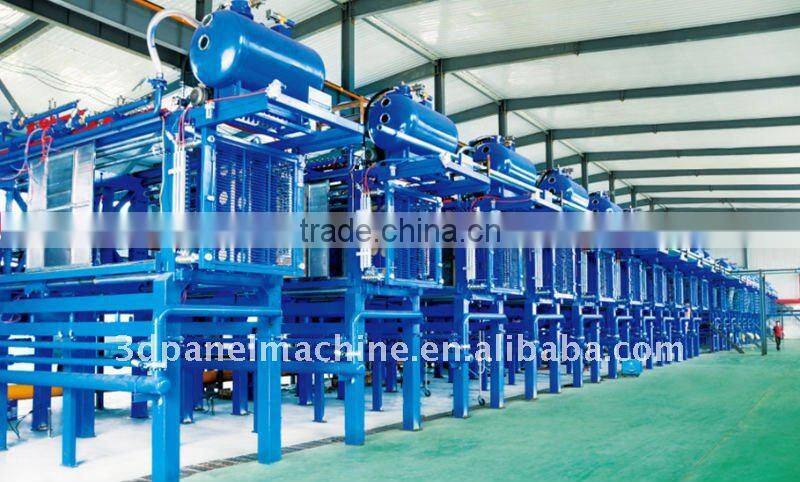

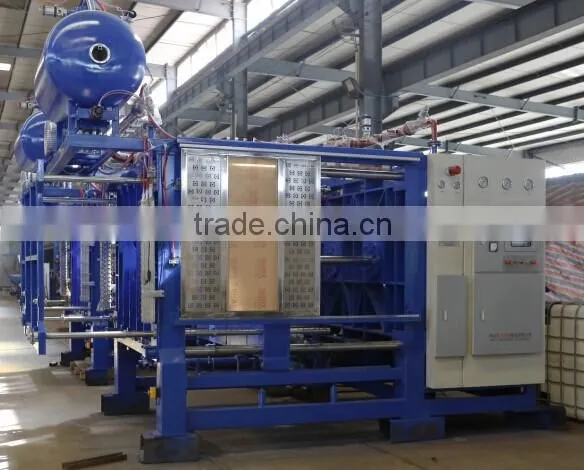

Product Name: ICF Molding Machine
The features of the EPS Shape Molding Machine:
1. The electric system adopts the most advanced PLC, touch screen, electromagnetic valve, encoder to ensure the reliable operation of Shape Molding Machine.
2. All parts and fittings of ICF Machine, such as the vacuum pump, the hydraulic pressure system, the valve body are customized and manufactured by prestigious manufacturers domestic and abroad, in order to accelerate the efficiency and reduce the failure rate of the of ICF Machine.
3. The programme of ICF Machine makes your work easy and produces high quality EPS products.You can operate the machines easily with the well-designed programs and the machines can produce high quality EPS products.
4. It adopts stainless steel plate for the support and back plate each contacting positions, which will reduce the wear and rust of the mold precision.
5. We can make the shape molding machine by requirements.
The followings are the main specifications of popular model:
Item | Unit | ZC1200 | ZC1400 | ZC1700 | |
Standard Mould Size | MM | 1200×1000 | 1400×1200 | 1700×1400 | |
Finished product size | MM | 1000×850 | 1200×1050 | 1500×1250 | |
Finished product height | MM | 300 | 400 | 400 | |
Horizontal distance | With coupling flange | MM |
| 200-1350 | 200-1350 |
Without coupling flange | MM | 150-1150 | 350-1500 | 350-1500 | |
Guide rod outer diameter | MM | 65 | 80 | 80 | |
Oil cylinder diameter × Stroke | MM | 110×1000 | 140×1150 | 125×1150 | |
Oil cylinder speed | MM/S | 125 | 140 | 110 | |
Steam inlet diameter | MM | DN50 | DN65 | DN80 | |
Steam inlet diameter of mould | MM | DN25 | DN25 | DN25 | |
Steam consumption | Kg/cycle | 5 | 6 | 7 | |
Steam pressure | MPa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | |
Cooling water inlet diameter | Inch | 2 | 21/2 | 3 | |
Cooling water consumption | Kg/cycle | 20 | 25 | 35 | |
Compressed air inlet diameter | Inch | 1 | 11/2 | 2 | |
Compressed air consumption | m3/cycle | 1 | 1.5 | 2 | |
Vacuum consumption | L/cycle | 4 | 6 | 8 | |
Vacuum pump max flow | m3/h | 165 | 230 | 280 | |
Oil pump | Max flow | ml/r | 40 | 72 | 72 |
High pressure + Low pressure | MPa | 16+6 | 16+6 | 16+6 | |
Silo | Feeding guns | PCs | 16 | 30 | 30 |
Volume | L | 300 | 360 | 360 | |
Motor power | Hydraulic station | KW | 4 | 7.5 | 7.5 |
Vacuum pump | KW | 4 | 5.5 | 7.5 | |
Silo blower | KW | 0.5 | 2.2 | 2.2 | |
Installation power | KW | 8.5 | 15.2 | 17.2 | |
Overall Dimension(L*W*H) | M | 4.5×2.0×3.6 | 5.1×2.2×4.2 | 5.1×2.5×4.4 | |
Forming cycle | S | 60-100 | 80-130 | 90-135 | |
Machine weight | t | 3 | 4 | 4.5 | |
The following machines are for our customers :
l We supply factory layout design ; machine installation ; worker training
l Professional after sell and after-sell service team
Xuelong Advantages:
u Main parts after imported from famous factory in the world to control the machine with high quality.
u Machine design take the customer’s local environment and custom condition as consideration
u Machine main body with high quality steel and stainless steel and high quality painting to prevent rusting.
uXuelong company has more than 20 years experiences in eps machine fields that you can trust in China
u We are the famous brand in Hebei China.
Why choose us?
Accomplishment
Xuelong company with cooperated with the first-class of famous University of Tsinghua. We have the strong technician team to serve our customer. We have successfully serve many domestic customers in the past.
High quality
The machine line main parts are imported from famous factory in the world. Such as Siemens ; Delixi ; OMRON and etc.
Competitive price
Our machine with competitive price because of local production cost. So we are the best partner for you to choose !
Innovation
Our team developed the new solutions for different customers of different requirements.
