Product Name: Full-automatic EPS Batch Pre-expander
Model: XL-PSD Series
Xuelong Company manufactures three product series: 3D Panel Machine series, EPS Machine Series, ICF Machine series.
Xuelong Full-automatic EPS Batch Pre-expander is one of the main products produced by Hebei Xuelong Machinery Manufacture Co.,Ltd, The features of the Full-automatic EPS Batch Pre-expander:
XL-PSD Batch pre-expander is a full automatic production line which includes Filling, expanding, drying, sieving, crushing and conveying. Feature:
1. PLC adopts Japan OMRON; touch screen adopts Taiwan Delta to ensure the reliable work. The main spare parts are products from famous factories.
2. The inner and outer insulated shell of the expanding chamber are made of stainless steel, so it can save more than 50% energy than the continuous pre-expander.
3. Efficient screw conveyor and electronic weighing system attach to the expanding chamber.
4. Density Self-correcting mechanism attached with blower filling device, rational container, temperature sensor, pressure transmitter and electronic weighing system to control the density of pre-expanding.
5. Now we have designed other types to meet different demands of the customers.
The followings are the main specifications:
Item | Unit | PSD800 | PSD1000 | PSD1200 | PSD1400 | PSD1600 | |
Expansion chamber | MM | 800×2000 | 1000×2000 | 1200×2250 | 1400×2250 | 1600×2200 | |
Effective Volume | M3 | 0.8 | 1.2 | 1.8 | 2.5 | 3.5 | |
Steam inlet diameter | MM | DN50 | DN50 | DN50 | DN50 | DN50 | |
Steam pressure | MPa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | |
Compressed air inlet diameter | Inch | 1 | 1 | 1 | 1 | 1 | |
Compressed air pressure | MPa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | |
Pollution discharge | Air outlet diameter | Inch | 3 | 3 | 3 | 3 | 3 |
Water outlet diameter | Inch | 3 | 3 | 3 | 3 | 3 | |
Motor power | Mainshaft reducer | KW | 4 | 4 | 5.5 | 5.5 | 5.5 |
Vortex pump | KW | 3.8 | 3.8 | 3.8×2 | 3.8×2 | 3.8 | |
Discharging blower | KW | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
Installation power | KW | 8.9 | 8.9 | 14.2 | 14.2 | 10.4 | |
Foam density | First Pre-expansion | g/l | 10~40 | 10~30 | 10~25 | 10~20 |
|
Second Pre-expansion | g/l |
|
| 5~10 | 5~10 | 5~10 | |
Productivity | 1st Pre-expansion 20g/l | Kg/h | 500 | 600 | 800 | 900 |
|
1st Pre-expansion 12g/l | Kg/h | 350 | 450 | 600 | 700 |
| |
2nd Pre-expansion 6g/l | Kg/h |
|
| 300 | 400 | 600 | |
Overall Dimension(L*W*H) | M | 4.5×2.0×3.6 | 2.4×2.3×5.1 | 4.2×2.5×5.4 | 4.2×2.5×5.4 | 4.2×2.5×4.90 | |
Forming cycle | S | 60~200 | 80~160 | 90~140 | 90~140 | 60~140 | |
Machine weight | T | 2.2 | 2.5 | 3.0 | 3.2 | 3.5 | |

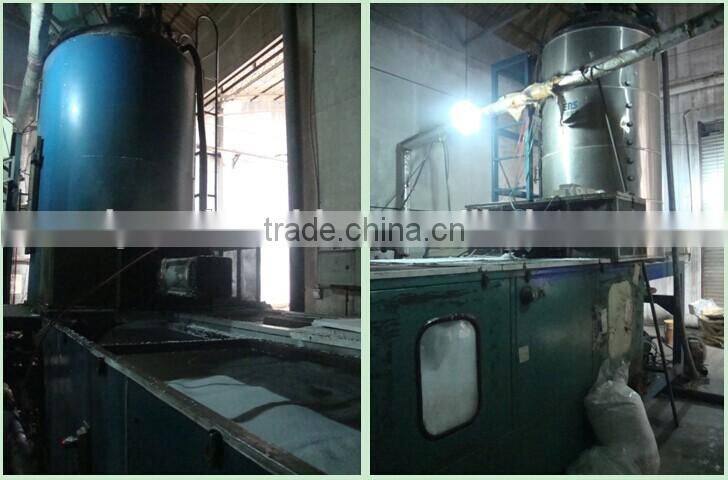

Production photos:
l Nude packing for main body, plywood box for the spare parts.
l According to your requirements.
l The goods should be inspected in our workshop before shipment.
l Loading and customer installation photos:
l We supply factory layout design ; machine installation ; worker training
l Professional after sell and after-sell service team
Xuelong Advantages:
u Main parts after imported from famous factory in the world to control the machine with high quality.
u Machine design take the customer’s local environment and custom condition as consideration
u Machine main body with high quality steel and stainless steel and high quality painting to prevent rusting.
uXuelong company has more than 20 years experiences in eps machine fields that you can trust in China
u We are the famous brand in Hebei China
Xuelong factory was established in 1994, the main business scope including: PC machine line;EPS raw materials, EPS machinery manufacturing and color steel sandwich panel & steel structure projects. So far , Xuelong has already been a large business group that has 6 separate legal subsidiaries with more than 600 employees.
Xuelong factory passed ISO9001:2008 quality management system certification and " National high-tech Enterprise" certification. As the leading company of PC/eps machine manufactures in China, Xuelong company has been the first choice of customers, which enjoys high reputation as "world-class machinery".
1: Our factory Location
Our factory is located in Xinji city Hebei province, very close to Beijing.
2.How to get to our factory:
* You can directly fly to Shijiazhuang city, and we will pick up you from the air port.
* You can go to Beijing first, and then by fast train from Beijing to Shijiazhuang city, we will pick up you on the train station.
3: Why choose us?
Accomplishment
Xuelong company with cooperated with the first-class of famous University of Tsinghua. We have the strong technician team to serve our customer. We have successfully serve many domestic customers in the past.
High quality
The machine line main parts are imported from famous factory in the world. Such as Siemens ; Delixi ; OMRON and etc.
Competitive price
Our machine with competitive price because of local production cost. So we are the best partner for you to choose !
Innovation
Our team developed the new solutions for different customers of different requirements.
