EPS Block Production Line Plant
- Tianjin China
- T/T
You May Like
Product Details
| Condition | New | Product Type | Other, EPS foam | |
| Place of Origin | Hebei, China | Brand Name | Xuelong EPS block production line | |
| Model Number | XL-PSB series EPS block production line | Voltage | 380V | |
| Power(W) | 75 | Dimension(L*W*H) | 10.8*2.6*2.4m | |
| Weight | 12T | Certification | CE, Other, CE, ISO9001:2008 | |
| Warranty | 18 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
EPS block production line plant
A.The process of eps block production line
B.The production by our machine
C.Introduction of the eps block production line
1. EPS pre-expander
1. PLC adopts Japan OMRON; touch screen adopts Taiwan Delta to ensure the reliable work. The main spare parts are products from famous factories.
2. The inner and outer insulated shell of the expanding chamber are made of stainless steel, so it can save more than 50% energy than the continuous pre-expander.
3. Efficient screw conveyor and electronic weighing system attach to the expanding chamber.
4. Density Self-correcting mechanism attached with blower filling device, rational container, temperature sensor, pressure transmitter and electronic weighing system to control the density of pre-expanding.
Item | Unit | PSD800 | PSD1000 | PSD1200 | PSD1400 | PSD1600 | |
Expansion chamber | MM | 800*2000 | 1000*2000 | 1200*2250 | 1400*2250 | 1600*2200 | |
Effective Volume | M3 | 0.8 | 1.2 | 1.8 | 2.5 | 3.5 | |
Steam inlet diameter | MM | DN50 | DN50 | DN50 | DN50 | DN50 | |
Steam pressure | MPa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | |
Compressed air inlet diameter | Inch | 1 | 1 | 1 | 1 | 1 | |
Compressed air pressure | MPa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | |
Pollution discharge | Air outlet diameter | Inch | 3 | 3 | 3 | 3 | 3 |
Water outlet diameter | Inch | 3 | 3 | 3 | 3 | 3 | |
Motor power | Mainshaft reducer | KW | 4 | 4 | 5.5 | 5.5 | 5.5 |
Vortex pump | KW | 3.8 | 3.8 | 3.8×2 | 3.8×2 | 3.8 | |
Discharging blower | KW | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
Installation power | KW | 8.9 | 8.9 | 14.2 | 14.2 | 10.4 | |
Foam density | First Pre-expansion | g/l | 10~40 | 10~30 | 10~25 | 10~20 |
|
Second Pre-expansion | g/l |
|
| 5~10 | 5~10 | 5~10 | |
Productivity | 1st Pre-expansion 20g/l | Kg/h | 500 | 600 | 1100 | 1200 |
|
1st Pre-expansion 12g/l | Kg/h | 350 | 450 | 600 | 700 |
| |
2nd Pre-expansion 6g/l | Kg/h |
|
| 300 | 400 | 600 | |
Overall Dimension(L*W*H) | M | 4.5*2.0*3.6 | 4.2*2.3*5.1 | 4.2*2.5*5.4 | 4.2*2.5*5.4 | 4.2*2.5*4.90 | |
Forming cycle | S | 60~200 | 80~160 | 90~140 | 90~140 | 60~140 | |
Machine weight | T | 2.2 | 2.5 | 3.0 | 3.2 | 3.5 | |

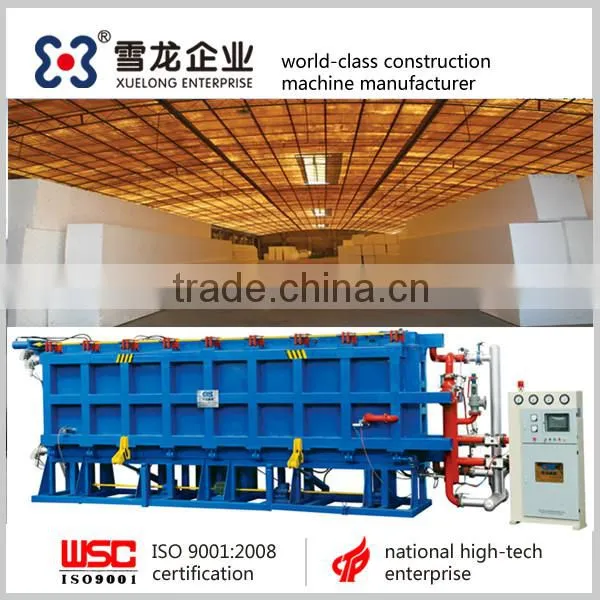

2. EPS Block Molding Machine
1.With SSTU and high quality profiles as materials, through the technics of welding, aging heat treatment, planning by double housing planer, our machine has the advantages of higher strength, higher toughness, better sealability, can sustain the expansibility of high-density board.
2.The electric control system made up of PLC and touch screen to operate the processes of template opening, closing, locking, feeding, heating, insulating, cooling, demoulding, ejecting and so on automatically.
3. It adopts the mature and advanced molding technics of penetrating and heating, with the advantages of higher penetrability, stronger cohesiveness, less steam consumption, higher molding speed and higher productivity which is over twice higher than ordinary manual or semi-automatic operating. It adopts large diameter pneumatic butterfly valve to increase the heating speed and do its best.
4. The hydraulic and pneumatic spare parts are made of famous factory with advantages of high quality and reasonable configuration. The hydraulic system adopts differential control to open and close the template stably.
5. After the board is out of mould, it'll be self-weighting and feedback computer to adjust the product weight with the digital electrical scale and frequency coder (This device is optional).
Item | Unit | PSB2000 | PSB6000 | PSB8000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cavity inner net size | MM | 2030
Accessories
Packaging & Shipping
Company Information
Main parts after imported from famous factory in the world to control the machine with high quality. Machine design take the customer’s local environment and custom condition as consideration Machine main body with high quality steel and stainless steel and high quality painting to prevent rusting. Xuelong company has more than 20 years experiences in eps machine fields that you can trust in China We are the famous brand in Hebei China
If you want to know more about the EPS Foam production line,please don't hesitate to contact us.Let's talk the details.
