High quality industrial 12.1inch desktop touch screen monitor
skype:touchscreensales
Technical Specifications:
Model number |
GT-DTM121A |
Product structure |
Desktop,Plastic housing, Detachable bottom base |
Color |
Black |
Display type |
New 10.4"Active matrix TFT-LCD 4:3 |
Effective display size |
212×158(mm) |
Best Resolution |
800×600@60Hz |
Support color |
16.7M |
Brightness(Typ.) |
LCD panel:500cd/m2 |
LCD panel with touch screen:430cd/m2 | |
Response time(Typ.) |
5ms |
Pixel |
0.296*0.296mm |
Vewing Angle(Typ.at CR10) |
Horizontal(L/R):89°/89° |
Vertical(Up/Down):70°/70° | |
Contrast Ratio(Typ.) |
1000:1 |
Video input |
Mini D-Sub15 frame VGA,DVI |
Scan Frequency(L/F) |
Horizontal:30~80KHz ,Vertical: 55~75Hz |
Power input |
External connect power adapter,Support AC 100 ~ 240V,50 ~ 60Hz,DC12V-3A |
Environment |
Operating temperature:0 to 50°C |
Storage temperature:-20 to 60°C | |
Operating humidity:20% to 80% | |
Storage humidity:10% to 90% | |
Mean Time Between Failure (MTBF) |
30,000hours |
Backlight tube life (Typ.) |
30,000hours |
Power comsuption |
Max 15W |
OSD Control |
Key:POWER,MENU,AUTO,UP,DOWN |
Function:brightness,contrast ratio,self correction,phase position,field position,language,function set,reset | |
Installation method |
1) put on the desk 2) wall mounted or bracket installation |
Touch screen type |
4/5 resistive touch screen |
Touch life |
More than 5,000million times |
Touch screen surface hardness |
Same as glass,mohs 7 |
Touch object |
Finger or touch pen |
Touch interface |
USB or RS232 |
Touch response time |
10ms |
Touch force |
30g |
WeightNet weight/after packed) |
1.28Kg/1.7Kg |
Certification |
FCC,CE,CCC,RoHS |
Warranty |
Lcd monitor: 3years,touch screen: 3years |
Note: LCD display paramter will be changed according to the LCD brand and model | |

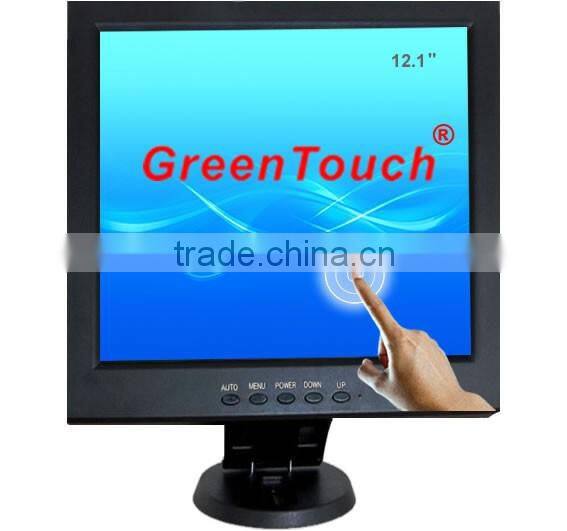

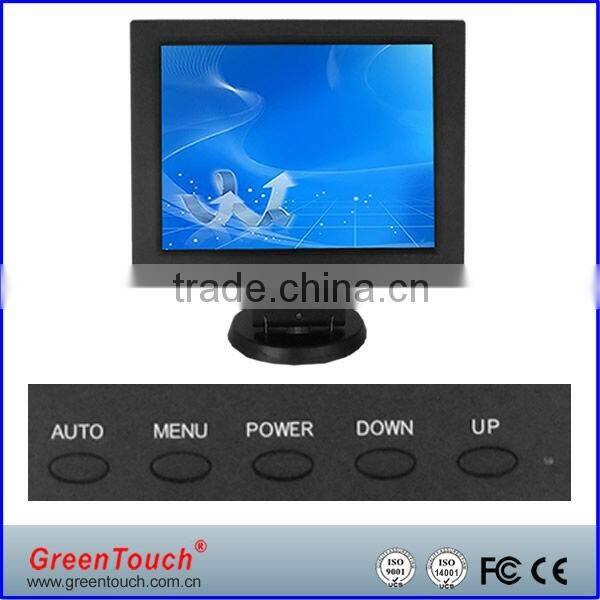

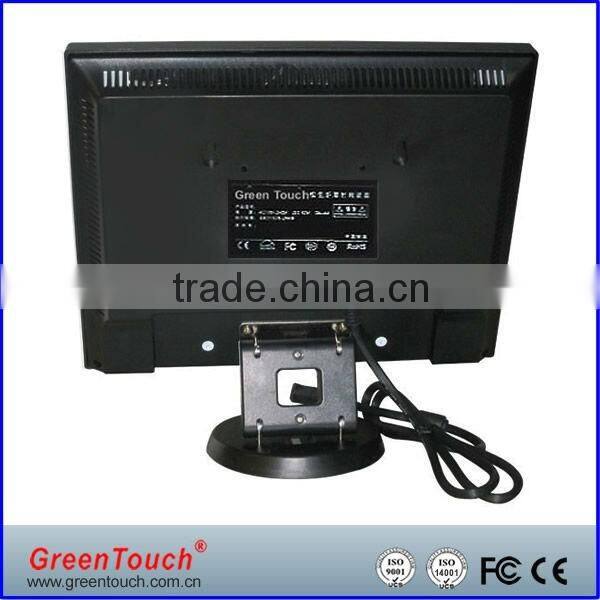

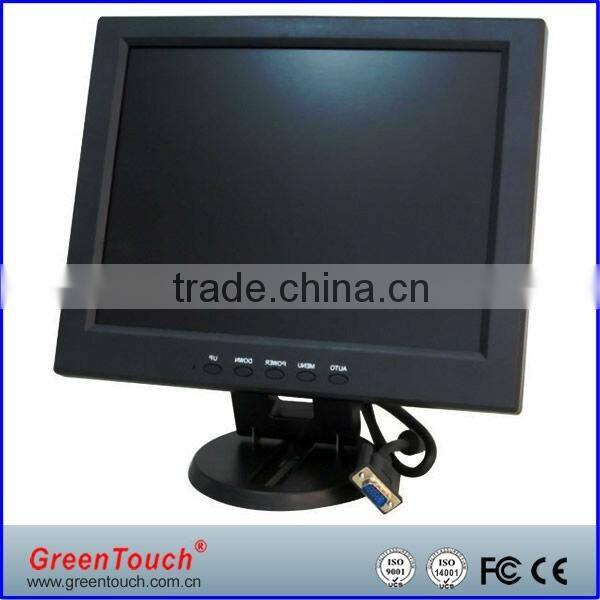

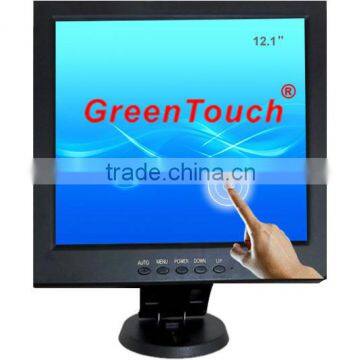

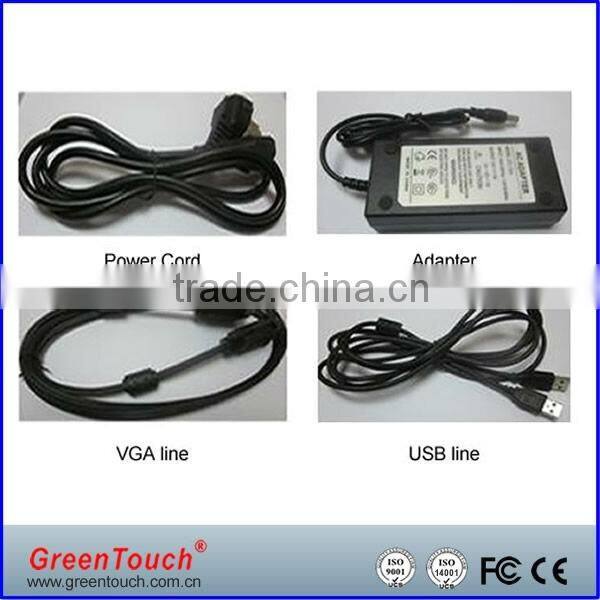

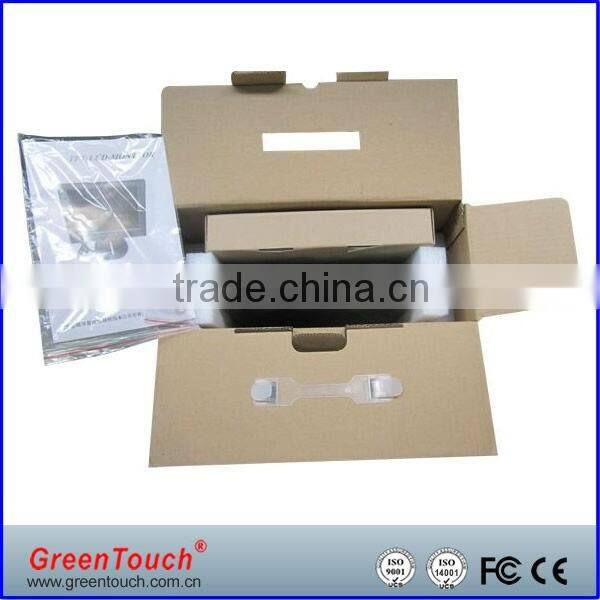

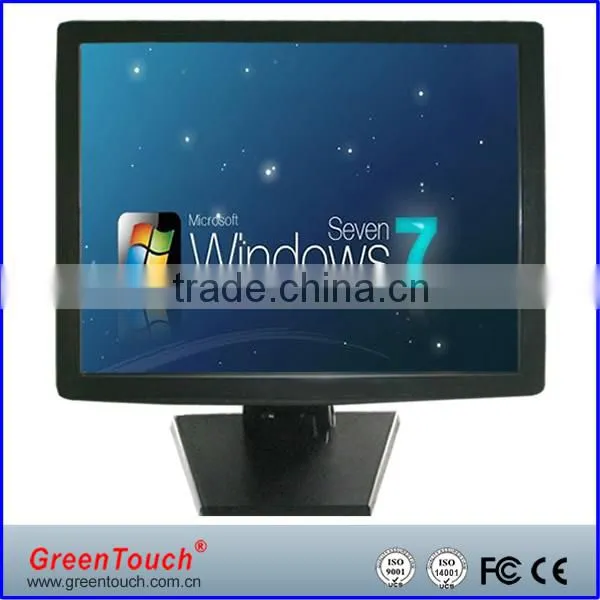

Product pictures:

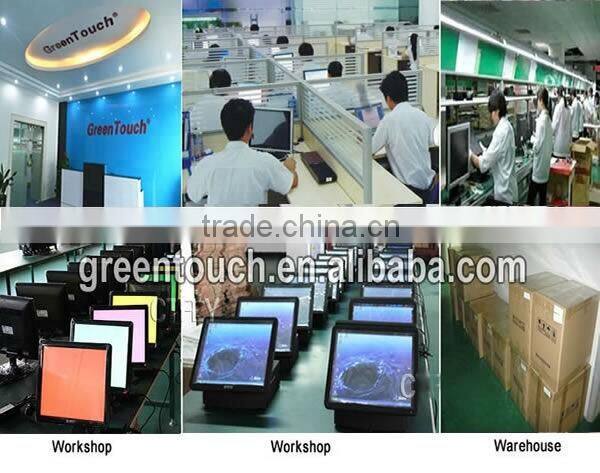

About Us:
MainFeature:
1.TouchfunctionandLCDdisplayallinonesolution,performanceexcellent,goodappearance
2.Highersensitivityandresponsespeedthansameproduct,verysmoothlywhentouchanddrawline
3.Bottombasedetachable,canbewallmountedorbracketinstallation;
4.Highlifetime,LCDupgradeorchangewillnotcausethetouchmonitorappearancedifferent
5.Hightbrightness,highcontrastratio,quickresponsetime,multicolorsupport,wideviewingangle
6.Fullplastichousing,beautifulout-looking,narrowframedesign,slenderandsuperthin
7.Nationalstandardprofessionalproductionline,onemilliondust-freeenvironment,screenbodyandLCDscreenfit;
8.Certification:FCC,CE
Product Application:
1.Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy. Department store.
2.Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops.
3.Non-profit Organizations: Telecommunications, post offices, Hospital information center , Education system.
4.Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Communication center, Traffic control center.
5.Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers; Warehouse,Conference Center.
6.Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf cours.
