Surface Acoustic Wave (SAW)Touch Screen(10.4’’-42”)
SAW touch screen description:
GreenTouch Surface Acoustic Wave (SAW) touch screen is based on sending acoustic waves
across a clear glass panel with a series of transducers and reflectors. When a finger touches the
screen, the waves are absorbed, causing a touch event to be detected at that point. SAW touch
screen technology is recommended for public information kiosks and other high traffic indoor environments.
SAW touch screen type:
| Touch screen type | Touch screen size | Thickness of glass | Material |
| Standard SAW touch screen | 10.4-42’’ | 3mm,4mm,6mm | Pure glass |
| Multi-touch SAW touch screen | 10.4-24’’ | 3mm,4mm,6mm | Pure glass |
| Vandal-proof SAW touch screen | 15”/17”/19’’ 4:3 | 4mm,6mm | Pure glass |
| Water-proof SAW touch screen | 15”/17”/19’’ 4:3 | 3mm,4mm,6mm | Plastic frame |
| Vandal/Water-proof SAW touch screen | 15”/17”/19’’ 4:3 | 4mm,6mm | Plastic frame |
| Anti-glare SAW touch screen | 10.4”-42” | 3mm,4mm,6mm | Pure glass |
| Dust-proof SAW touch screen | 10.4”-24” | 3mm,4mm,6mm | Aluminum frame |
Vandal/Water/Glare/Dust-proof SAW touch screen |
15”/17”/19” 4:3 | 3mm,4mm,6mm | Aluminum frame |
SAW touch screen advantage:
n high quality, high resolution and light transmittance
n once calibrated, never drift
n Z axis pressure recognition, only the intensity of the touch sensor to prevent misuse
n long working life, not afraid of hard objects
n short reaction time
n compact, easy to install
n Can be customized according to customer requirements Screen Size

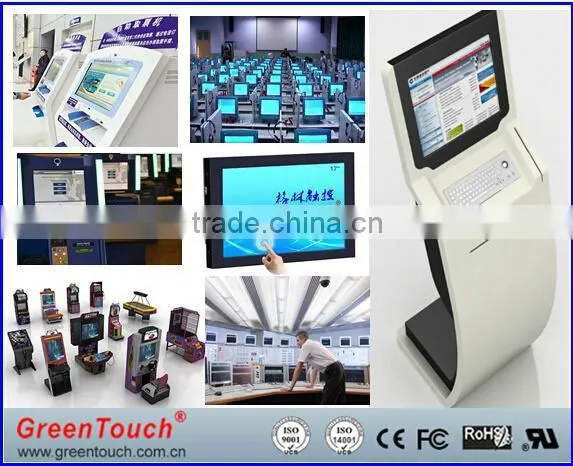

SAW touch screen application:
n Open frame touch monitor
n Self-service kiosks
n Vending and ticket sales
n Electronic catalogs
n Gaming, lottery, and amusement
n Public pay phones
n Multimedia marketing
n Banking/financial transactions
n Industrial control roomsn Computer-based training
n And more
SAW touch screen specification:
| Technology | surface acoustic wave technology |
| Dimension | 10.4"-42"(can be selected) |
| Resolution | 4096 x 4096 ,Z-axis 256 |
| Material | electronic glass (anti-glare,anti-vandal,anti-water,anti-dust can be selected) |
| Sensor position | 0.5mm (glass bevel,0.5mm above the surface) |
| Positioning accuracy | < 2mm |
| Transmittance | >92% /ASTM |
| Touch intensity | 30g |
| Touch life time | > 50,000,000 |
| Surface hardness | Mohs' 7 |
| Multi touch | (single or fake 2points touch) can be selected |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 10%-90% RH / 40°C |
| Work latitude | 3800m |
| Full set | Connected line,double-adhesive tape,dust-proof line, touch screen,controller. |
| Certificate | CE, FCC, RoHS |
| Controller specification: | |
| Controller type | Standard or ELO (can be selected) |
| Interface | USB or RS232 (can be selected) |
| Dimension | 85mm×55mm×10mm |
| Working voltage | 12V±1V or 5V±0.5V (can be selected) |
| working current | 80MA |
| Maximum current | 100MA |
| Reaction time | ≤16ms |
| Operating Temperature | 0-65℃ |
| Humidity | 10%-90%RH |
| Storage Temperature | -20℃-70℃ |
| MTBF | > 500,000 hours |
|
Operating system (Support) |
SetupX86:WindowsXP,WindowsXPE,Win7 32,Windows VISTA SetupX64: Win7 64 Linux(support Various versions):Ubunut/Redhat/FC/Suse etc Android:2.30,4.0 etc.((can use driver-free controller directly)) WinCE:WinCE 5.0/ WinCE 6.0 |
| Controller of LED diagnostic features: | |
| Flash Frequency | Function |
| The long light goes out after 5 seconds | The controller power-on self-test |
| Slow flashing | Normal operation, no touch |
| Fast flashing | Touch the state |
| Power-on | The touch screen not be found |

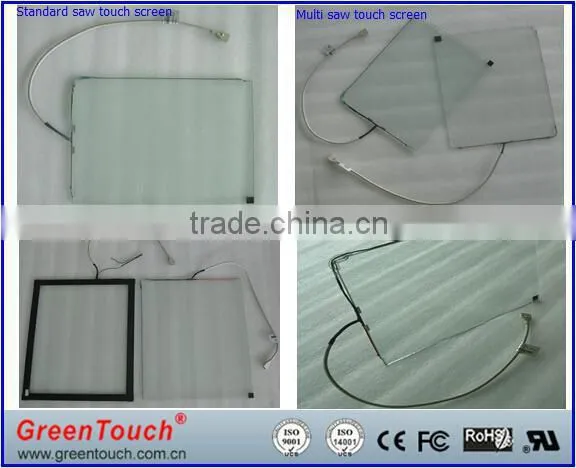

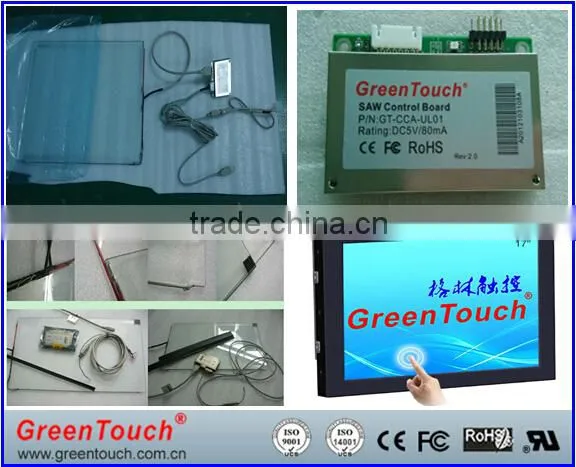

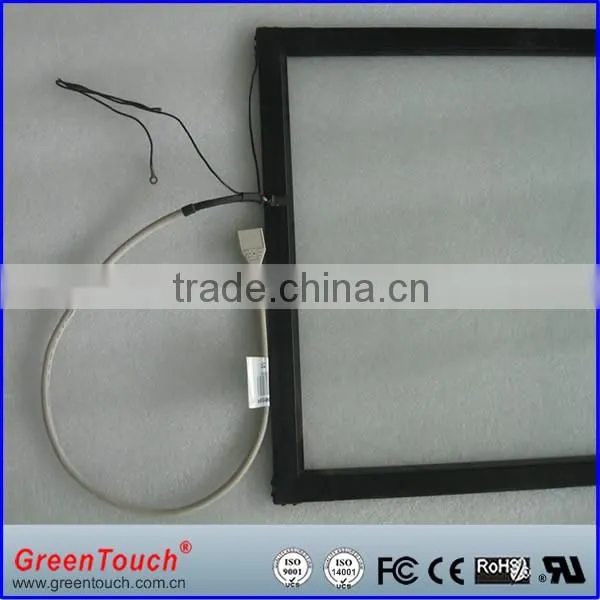

SAW touch screen picturers shown:

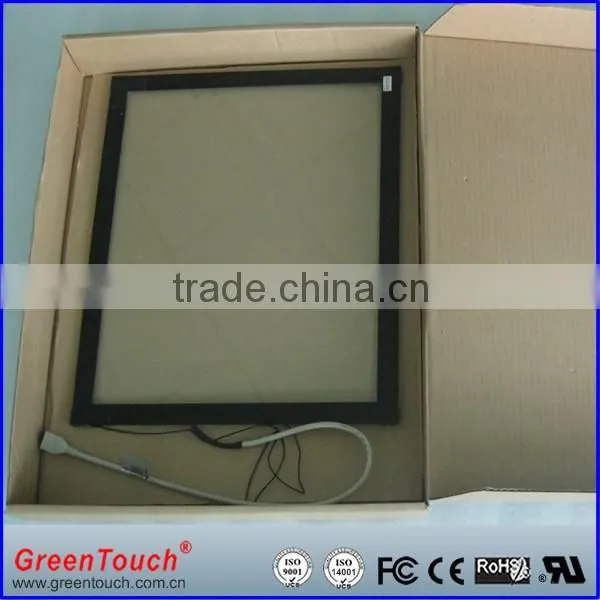

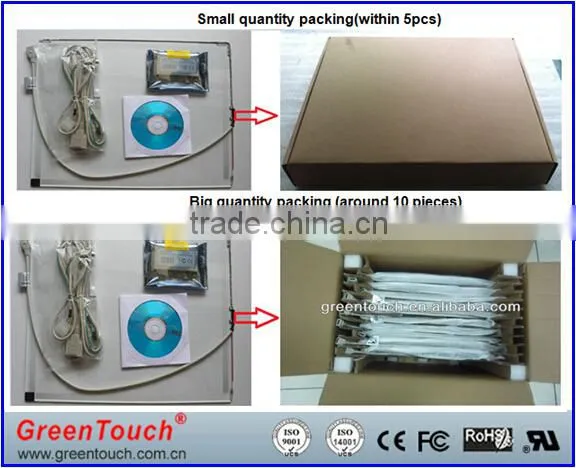

Packaging & Shipping
Our Services
1.Focus on customer requirement,Provide customization service
2.More than 20 RD engineers fouce on touch screen techology, Fast provide solutions for customer
3.Automatic production Sealed dust-free workshops CE,UL, FCC approved
4.Fast respone and Fast delivery
