Open Frame Touch Monitor
Description of Open Frame Touch Monitor:
Green Touch’s Open frame touch screen monitor size from 10.4 to 65 inches,use 4/5 wire resistive touch screen and IR,SAW,Capacitive touch screen that independently developed and produced by our company, it has a high-quality,cost-effective,good durability, and stability character. Pure glass for touch screen also provides good clarity and light transmittance.Slim housing and stylish design base, made the touch monitor with compact and elegant appearance.It is designed for commercial and industrial applications where the open frame screen goes into a larger unit that already has a bezel or other framing. It can accept a multitude of common video inputs including multiple VGA and DVI.
Open Frame Touch Screen Type:
Touch screen type |
Size |
Touch points |
Touch interface |
Materials |
Support systems |
Capacitive touch screen |
10.4inch~32 inch |
10touch points |
USB |
G+G/ P+G |
WindowsXP/Win7/Win8/Linux/Mac/Android
|
Standard SAW touch screen |
10.4inch~32 inch |
Single-touch |
USB/ RS232 |
Pure glass |
WindowsXP,WindowsXPE, Win732bits/64bits,WindowsVISTA Linux:Ubuntu/Redhat/FC/SUSEetcAccording to the kernelversion provide or custom-made diver Android:Support 2.30,4.0etc |
|
4/5wire Resistive touch screen |
10.4inch~22 inch |
Single-touch |
USB/ RS232 |
ITO glass+ ITO film |
Win2000/Winxp/Win7/Win8/Windows NT/Linux/Android |
Infrared touchscreen |
15inch ~65 inch |
1/2/4/6/10 touch points |
USB |
Black aluminium frame
|
Single touch point:: Windows7(homebasic),WindowsXP/Vista,Linux(ubuntu10.04),Mac, Android,Wince,Chrome |
|
Multi touch points : Windows7(ultimate;professional, home premium) Windows8(standard,professional,e nterprise) Note:The above systems have to be the original systems,not ghost.Win8 cannot be OEM. |
Application of Open Frame Touch Monitor:
* Suitable for hotel reception
* Industrial manufacturing,kiosks
* ATM, Hospital,office
* Information systems
* Education,pharmacy
* Department store
* Other interactive touch application design
Advantages:
* Aluminum alloy frame,8ms Response Time
* With standard wall mount bracket, and VESA holes at the back, can be customized as open frame design
* Energy Efficient, Low Power Consumption
* Superior viewing angles, contrast ratio and brightness
* 4/5 wire resistive,SAW,IR,Capacitive touch screen (can be selected)
* Our products have passed CE, FCC, RoHS certification
Specification:
Size |
10.4 inch ~65 inch (can customize) |
Display Type |
TFT LCD/LED panel |
Support color |
16.7M |
Response time |
8ms |
Touch Screen Type |
4/5 wire resistive/ IR / SAW/Capacitive touch screen(can be selected) |
Operate temperature |
0~50°C |
Storage temperature |
-20~60 °C |
Operating humidity |
20%~80% |
Storage humidity |
10%~90% |
Power Supply |
Support AC 90~240V,50~60HZ |
MTBF |
30,000 hours |
Backlight life |
50,000 hours |
Best Resolution |
800*600,1024*768,1280*1024,1366*768,1680*1050,1920*1080 |
Brightness |
250cd/m2,300cd/m2,500cd/m2 |
Touch life |
More than 5000million times |
Interface Type |
VGA(10.4”- 12.1’’), DVI, HDMI, ATV(audio input/output) (15’’- 23.6’’) |
OSD Control button |
POWER,MENU,AUTO,UP,DOWN |
Touch interface |
USB or RS232 |
Video input |
Mini D Sub 15 pin VGA,DVI |
Warranty |
1 year |
Certificates |
CE.FCC,RoHS |

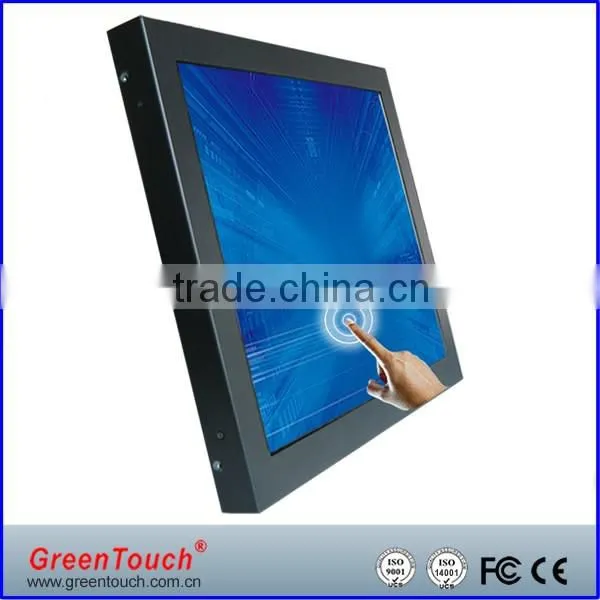

Product show:
Packing of Open Frame Monitor:
Certificates of Open Frame Touch Screen :
Payment and Delivery:
Factory Show:
We hope to establish a long-term and friendly cooperation relationship, feel free to contact me.
we will reply within 24 hours.
