84 inch 2points ,4points ,6points infrared/IR touch screen frame with best quality
- 2000 Piece / Pieces per Month
- ShenZhen
- T/T Credit Card
- 12.1" SVGA Open Frame Touch Screen Industrial LCD Display (LCD Module)
- 7" Open Type Module (OTM) Touch Screen Industrial LCD Display
- 7" Open Type Module (OTM) Touch Screen Embedded LCD Monitor
- 17" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 19" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 12.1" XGA Open Frame Touch Screen Embedded LCD Monitor (LCD Module)
Product Details
Products Status: | Stock | Screen Size: | Other, 84" | Type: | Infrared |
Interface Type: | USB | Resolution: | Other, 4096x4096 | Brand Name: | GreenTouch |
Model Number: | GT-IR-F84 | Place of Origin: | Guangdong, China |
Product Description
Multi Infrared/IR Touchscreen/Touch frame
Our direct contact method:Skype-greentouch66
Product Features:
1. Double-point write with peace,precise multi-point touching.
2. USB interface, Intelligent automatic calibration, drive-free and maintenance-free.
3. Longevity of service ,maintenance free.
4. Aluminum alloy shell with strong stability.
5. Tempered glass with high light transmittance and true color rendition.
6. Without driver ,supporting plug and play.
7. Adapt to internal and external linked environment.
8. No touching tools,no special touching pen is required ,only your finger.
9. Fast response(less than 16 ms), no blind area, breakpoints, jump points, pause and
other undesirable phenomena
Specifications
Touch Technology | Infrared Touch |
Performance | |
Resolution(Interpolation) | 4096*4096 |
Resolution(Interpolation) | 16:9,16:10,4:3 |
Linearity Error | 1.5mm |
Response Speed | <15ms |
Mechanical | |
Input Method | Finger, gloved hand, or opaque object |
Touch Times | Unlimited |
Touch Activation Force | No minimum touch activation force is required with IR touch technology
|
Minimum Touch Object | 5mm |
Environmental suitability | |
Temperature | Operating: -20°C ~ 70°C |
Storage: -40°C ~ 85°C | |
Relative Humidity | Operating: 90%(non-condensing at max 40°C) |
Storage: 90%(non-condensing at max 40°C) | |
Altitude | Up to 3,000m |
Life Time | At least 7-year |
Electrical | |
Scan frequency | 60Hz |
Communication interface | USB 2.0 or RS232 |
type | |
Output Format | Coordinate output |
Touch Accuracy | 2MM(Over 90%Area) |
Operation Voltage | Typical +DC 5V, +4.75V to +5.25V |
Power Supply | USB, power ripple max.200mV rms |
Power | <2W, operating current<200mA |
Agency Approvals | CE, FCC Class B |
Operatin current | <180mA |

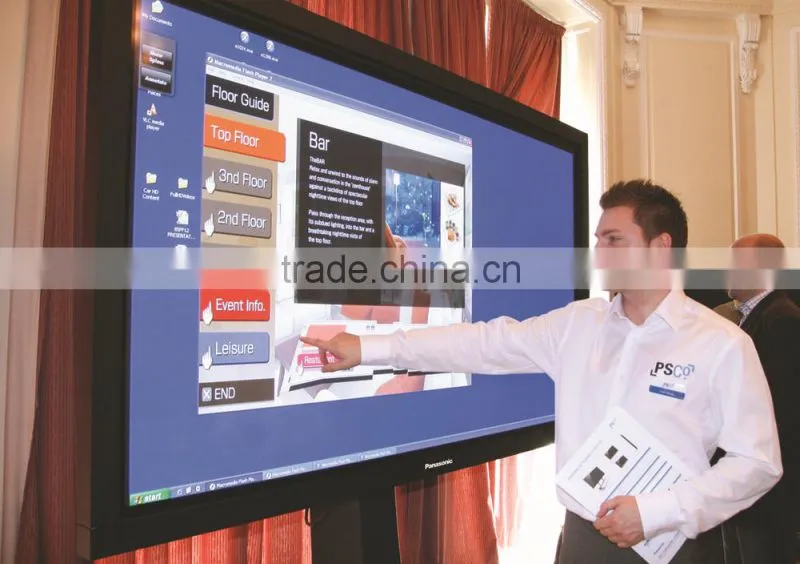

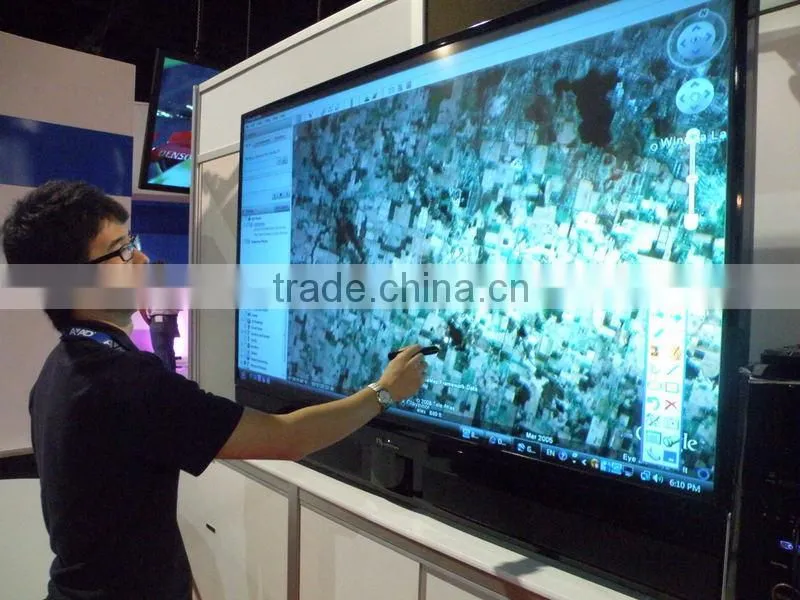

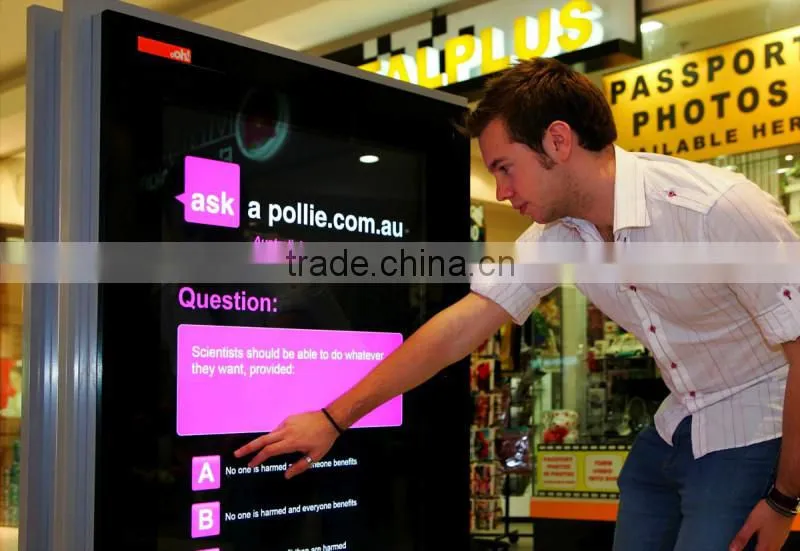

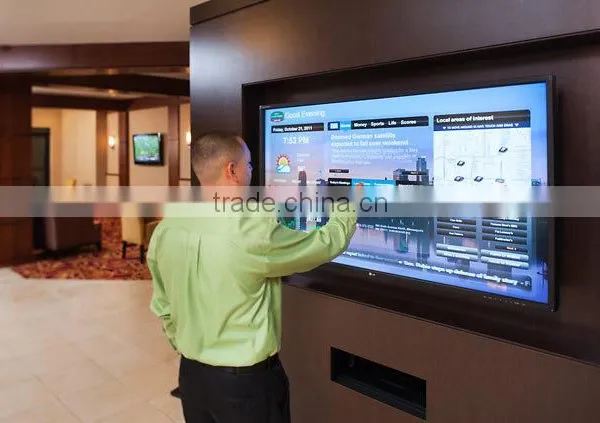

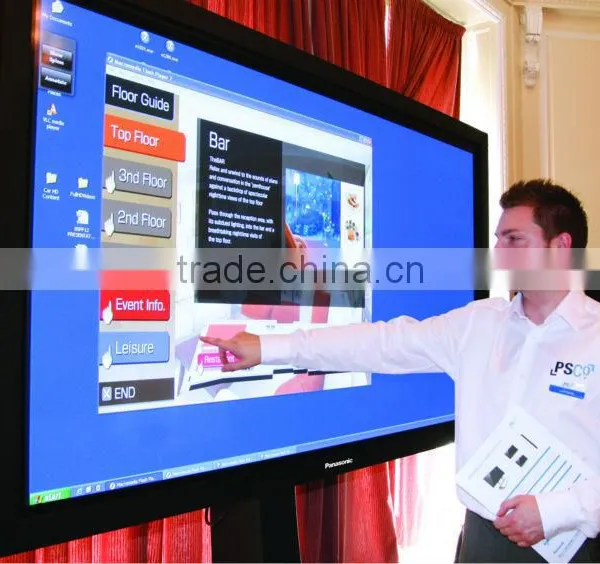

Applicaion

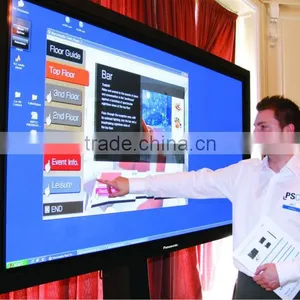

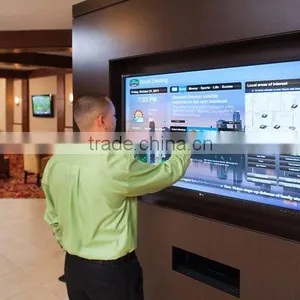

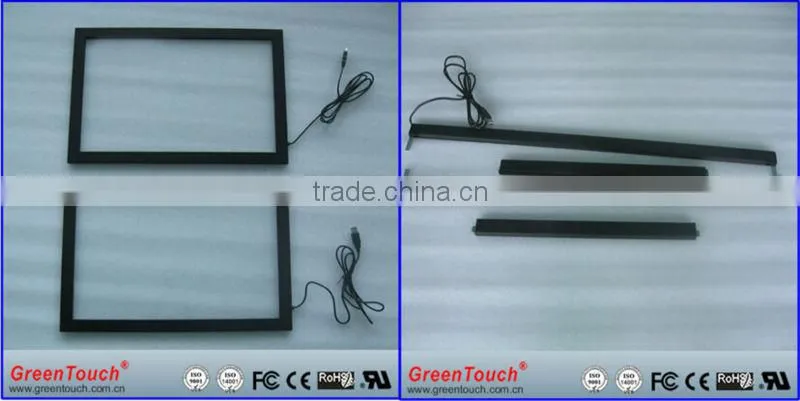

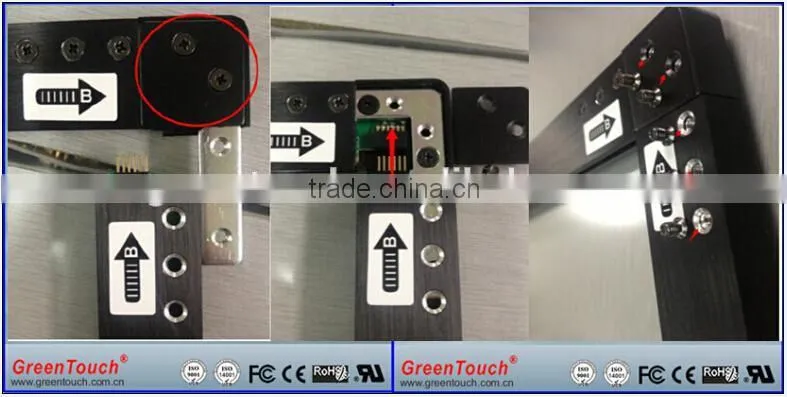

Product images

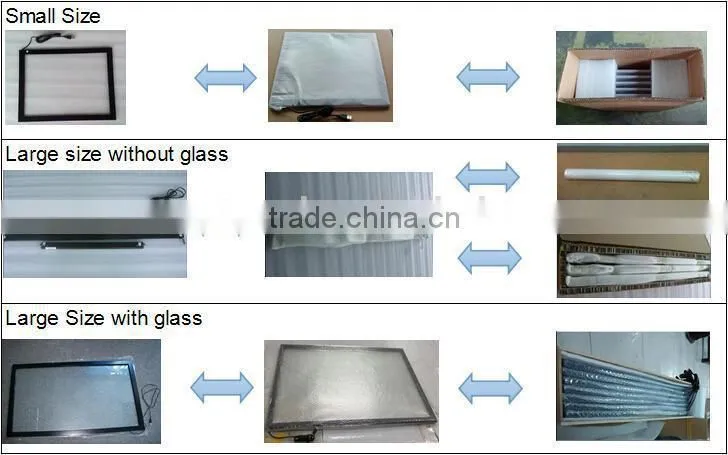

Packaging & Shipping
Our services
1.Focus on customer requirement,Provide customization service
2.More than 20 RD engineers fouce on touch screen techology, Fast provide solutions for customer
3.Automatic production Sealed dust-free workshops CE,UL, FCC approved
4.Fast respone and Fast delivery
