Specifications
1.pellet cooler machine:1-2t/hol hot pellet:2-8mm
3.0.25w
4.air fan,cyclone,air lock
5.CE,ISO9001

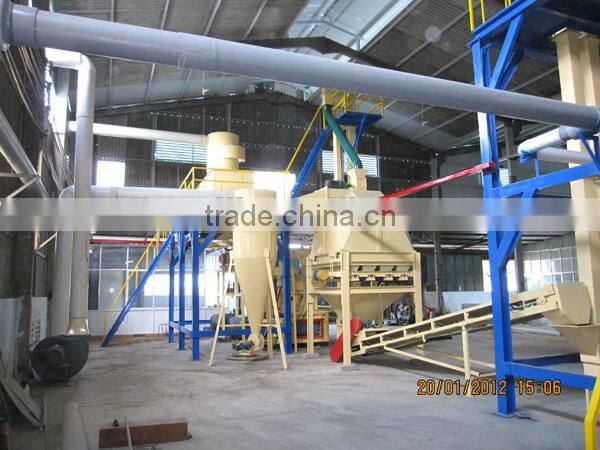

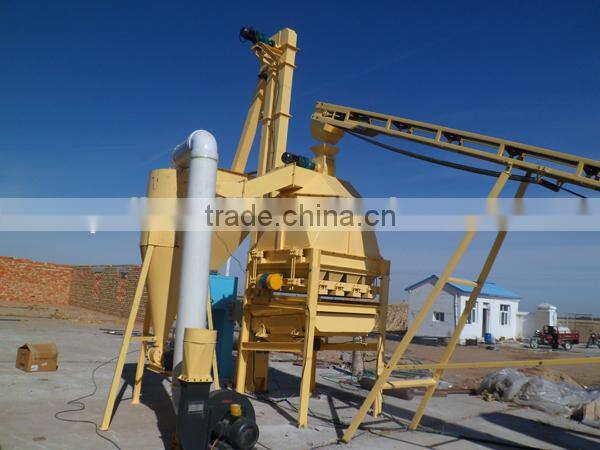

pellet cooler machine cooler is mainly to cool 2-8mm diameter pellets, when outlet from pellet machines,the temperature is about 60-80 centigrade, after cooler, the temperature is not higher than room temperature +3-5.
2.pellet cooler machine adopts counter flow theory, cold air goes to cooler from bottom to top, hot pellets goes to cooler from top to bottom, as time goes on, pellets will pile up at the cooler bottom, cold air will cool pellets at the bottom gradually, in this way will reduce pellet broken situation , if cold air also go to cooler from top, which same as pellets flowing direction, then hot pellets will meet with cold air suddenly , pellets will be easily broken, especially pellets surface. In this way can cool fully and equally, pellet broken rate is smaller than 0.2%.
3.pellet cooler machine generally works with cyclone and air fan, air lock.which is used to absorb cold air and clean dust, also it can install a screener at the cooler bottom, which can separate powder dust and good pellets
4.pellet cooler machine is hot selling more than 20000 sets per year , greatly welcome to ask me for details., we have big discount at this moment.
Model |
SKLN1.2 |
SKLN1.5 |
SKLN2.5 |
SKLN4 |
SKLN6 |
SKLN8 |
SKLN10 |
|
Output(t/h) |
0.8-1.2T/h |
1-2/h |
3-5T/h |
5-8T/h |
8-12T/h |
12-15T/h |
15-20T/h |
|
Capacity (CBM) |
1.2 |
1.5 |
2.5 |
4 |
6 |
8 |
10 |
|
Cooling Time |
Not less than 10 minutes |
|||||||
Cooled Temp (°C) |
Room temperature + 3-5°C |
|||||||
Power (kw) |
0.18 |
0.25 |
0.37 |
0.37 |
0.37 |
0.37 |
0.37×2 |
|
Wind Pressure |
Higher than 200mm H2O |
|||||||
Power of Fan(kw) |
5.5kw |
7.5kw |
11kw |
18.5kw |
22kw |
30kw |
37kw |
|
