Specifications
1.china wood pellet cooling machine:1-2t/hol hot pellet:2-8mm
3.0.25w
4.air fan,cyclone,air lock
5.CE,ISO9001
We produce biomass pellet making line machines, such as wood logs debarking machine, wood logs
splitter, wood sawdust making machine ,wood chipper, hammer mill, grass,straw cutter , straw bale
crusher ,pellet machine and briquette machine, dryer and pellet cooler, screener, mixer , pellet boiler ,
pellet packing machine and all conveyors e. c. t. Our factory has more than 15 years history, CE and ISO 9001 high quality certificate .for china wood pellet cooling machine details, as below :

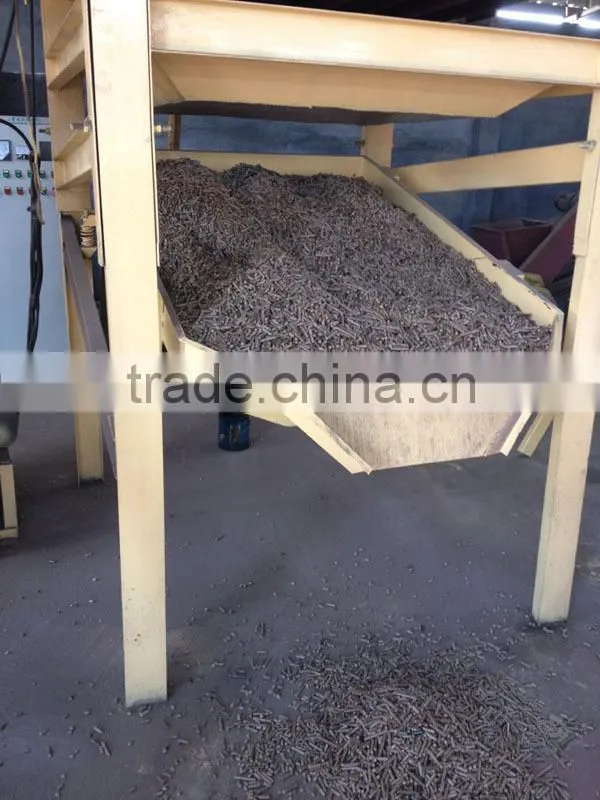

1.china wood pellet cooling machine is mainly to cool 2-8mm diameter pellets, when outlet from pellet machines,the temperature is about 60-80 centigrade, after cooler, the temperature is not higher than room temperature +3-5.
2.china wood pellet cooling machine adopts counter flow theory, cold air goes to cooler from bottom to top, hot pellets goes to cooler from top to bottom, as time goes on, pellets will pile up at the cooler bottom, cold air will cool pellets at the bottom gradually, in this way will reduce pellet broken situation , if cold
air also go to cooler from top, which same as pellets flowing direction, then hot pellets will meet with cold air suddenly , pellets will be easily broken, especially pellets surface. In this way can cool fully and
equally, pellet broken rate is smaller than 0.2%.

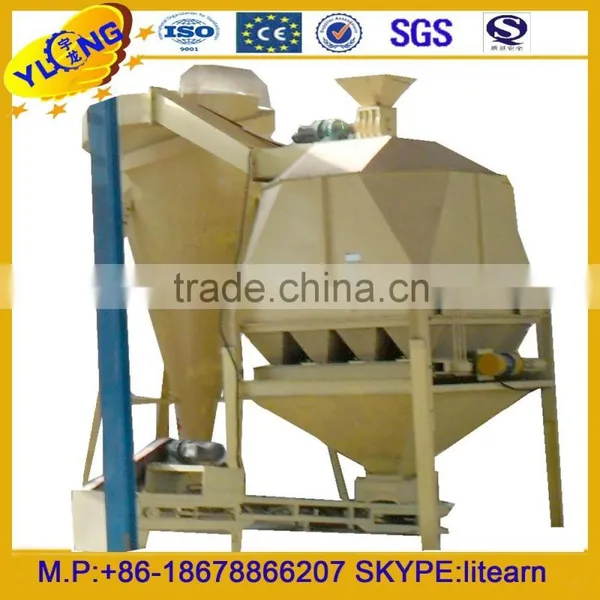

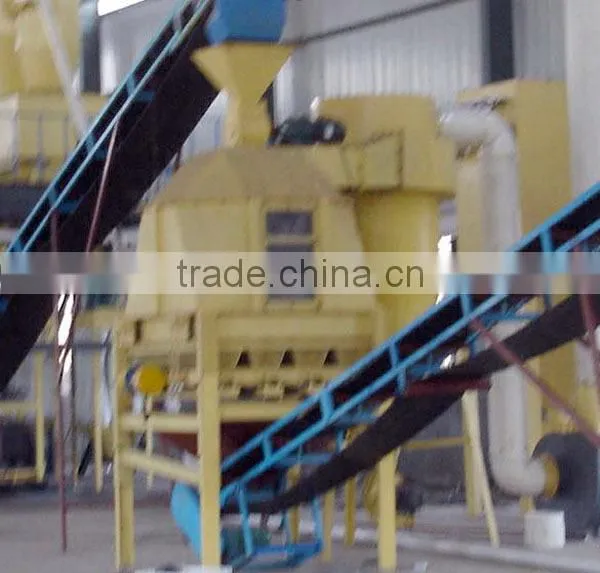

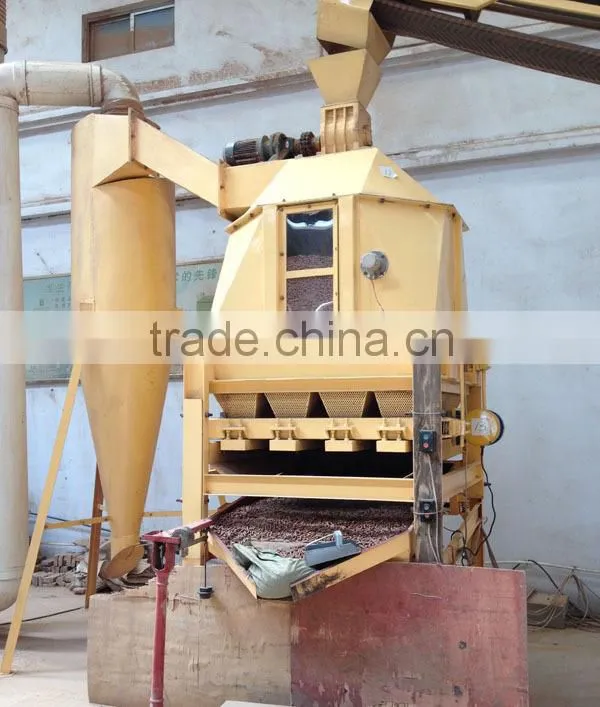

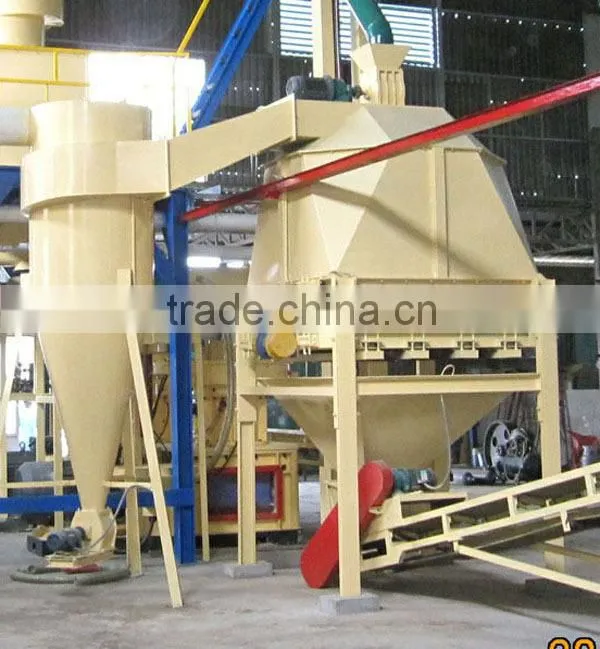

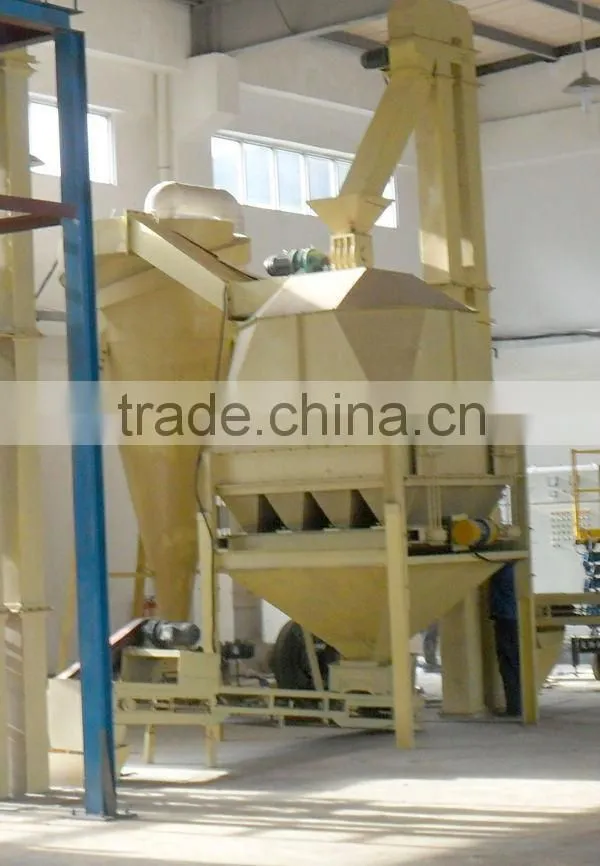

3.china wood pellet cooling machine generally works with cyclone and air fan, air lock. which is used to
absorb cold air and clean dust, also it can install a screener at the cooler bottom, which can separate
powder dust and good pellets
4.china wood pellet cooling machine is hot selling more than 20000 sets per year , greatly welcome to ask me for details., we have big discount at this moment.
Model |
SKLN1.2 |
SKLN1.5 |
SKLN2.5 |
SKLN4 |
SKLN6 |
SKLN8 |
SKLN10 |
|
Output(t/h) |
0.8-1.2T/h |
1-2/h |
3-5T/h |
5-8T/h |
8-12T/h |
12-15T/h |
15-20T/h |
|
Capacity (CBM) |
1.2 |
1.5 |
2.5 |
4 |
6 |
8 |
10 |
|
Cooling Time |
Not less than 10 minutes |
|||||||
Cooled Temp (°C) |
Room temperature + 3-5°C |
|||||||
Power (kw) |
0.18 |
0.25 |
0.37 |
0.37 |
0.37 |
0.37 |
0.37×2 |
|
Wind Pressure |
Higher than 200mm H2O |
|||||||
Power of Fan(kw) |
5.5kw |
7.5kw |
11kw |
18.5kw |
22kw |
30kw |
37kw |
|
