47" High definition interactive multi touch foil/touch screen foil
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- 12.1" SVGA Open Frame Touch Screen Industrial LCD Display (LCD Module)
- 7" Open Type Module (OTM) Touch Screen Industrial LCD Display
- 7" Open Type Module (OTM) Touch Screen Embedded LCD Monitor
- 17" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 19" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 12.1" XGA Open Frame Touch Screen Embedded LCD Monitor (LCD Module)
Product Details
Products Status: | Stock | Screen Size: | Other, 47" | Type: | Other, touch foil |
Interface Type: | USB | Brand Name: | Greentouch | Model Number: | GT-TF-47 |
Place of Origin: | Guangdong, China |
Product Description
Product Description
GreenTouch Interactive Touch Foils are supplied with an electrostatic cling layer which makes
them suitable for both permanent and temporary installations. The new improved touch foil have an
upgraded driver with USB connection which has been digitally signed off by Microsoft (EMC approved)
and are UL, FCC and CE approved (RoHS compliant). The Interactive Foils are combined with a screen

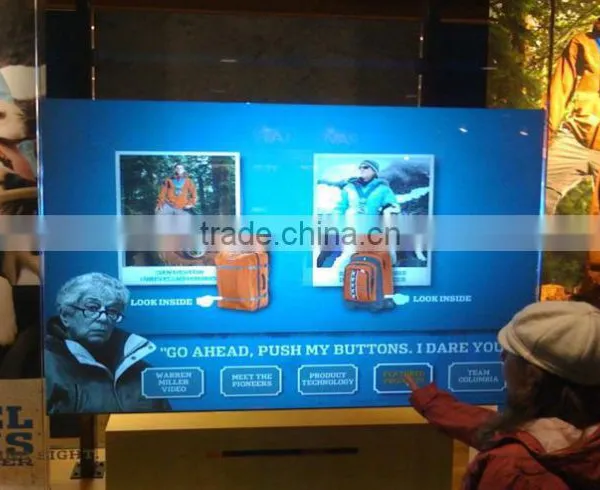

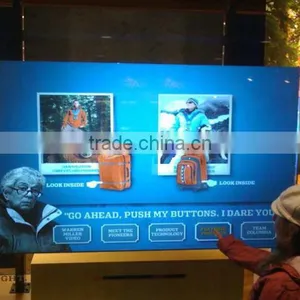

technology to create an interactive touch screen display. Our main market for the Touch foils is 'thru-glass'
interactive displays for store window applications, where the foil is combined with our range of projection
films and high brightness LCD TFT screens. Such as interactive shop windows, trade shows, museums,
meeting rooms and much more.
Standard Size of Interactive Touch Foil:
17 inch to 120inch (4: 3 and 16: 9 ratio). All standard sizes are being shipped to dealers worldwide within
one week (when in stock). Each touch foil comes with USB connector with cable Or RS232 Cable, driver
software, installation video's and user guide.
Types of Interactive Touch Foil
Touch foil type for paste | Tail version | Touch controller | Foil ratio | Touch points |
Water-adhesive (removable) | Base or bottom | USB interface | 16:9 (17”-120”) | 2,4,10,20,40 points |
Adhesive (permernent) | Side or short | USB interface | 4:3 (40”-120”) |
Advantages of Interactive Touch Foil
1. Super-thin,and transparent appearance
2. High definition, Stable touch
3. Well-positioned ,and support multi touch points
4. Through the glass or other objects to touch just like gesture
5. The size can be customized
Applications of Interactive Touch Foil
Suitable for Store window displays,
Indoor / outdoor kiosks,Exhibitions,
Visitor attractions,

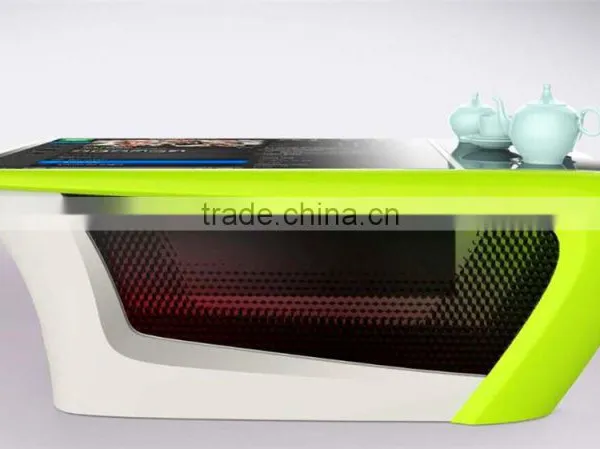

Museums Touch tables,
Training,meeting rooms,etc.
Specifications of Interactive Touch Foils:
Induction method | The improved projected sensing technology, criss-cross X, Y nanowires constitute sensing matrix |
Touch size | 17"~120" can be customized |
Touch accuracy | No drift, the deviation is about 1~3mm |
Calibration way | software calibration |
Induction thickness (penetration) | Adjusted by software to adapt to various thickness of glass, even wear gloves to produce touch-sensitive, can penetrate non-metallic materials about the thickness of 20 mm (middle to allow air layer), the induction can even penetrate glass thickness aboutof 25mm |
Scanning frequency | 60Hz~130hz |
Output way | USB 2.0 (HID public interface to USB Mini B interface) |
Compatibility system | WIN7 /WIN8 /Linux (ubantu 12.04.4,kernel version:3.11.0-15-generic) / Android4.2 or above ( kernel veersion>A20->3.3.0,RK3188->3.0.36) etc. |
Temperature range | -20°C~60°C |
Humidity range | 0% RH to 95% RH (without condensation neighborhood) |
Transmittance | >93% |
Power consumption | Max 0.5W |
Product Certification | CE,FCC,ROHS |
EMC | EN61000-6-1:2007 EN61000-6-3:2007+A1:2011 |
Packaging & Shipping
Our Services
1.Focus on customer requirement,Provide customization service
2.More than 20 RD engineers fouce on touch screen techology, Fast provide solutions for customer
3.Automatic production Sealed dust-free workshops CE,UL, FCC approved
4.Fast respone and Fast delivery
Company Information
GreenTouch Technology Co., Ltd. is a professional manufacturer of touch screen and a high-tech enterprise.
Our company specializes in R&D, manufacture and marketing of high-grade touch screen and value-added touch
screen. Our company has our own trademark—GreenTouch and provides customers with touch screens including
SAW touch screen, IR touch screen, four-wire touch screen, five-wire touch screen and various touch screen monitors.
GreenTouch has automatic production lines and the sealed dust-free workshops and has been certified to ISO9001
Quality Management System and ISO14001 Environmental Management System. The products are inspected in strict
accordance with the quality management system. Quality management becomes an essential part of operation. Our
products have been certified to CE, FCC, ETL, ROHS and UL. The objective of GreenTouch is to become the most
reliable supplier of touch screen, special products, high value-added products and touch solutions in the world!
