12 Inch 5 wire resistive Touch Screen Overlay Multi Touch For Interactive Displays/Multitouch table/Touch Wall/Kiosk
5 wire resistive touch screen
Descriptions:
GreenTouch 5wire resistive touch screen
features unrivaled accuracy, reliability, superior light transmission,highest touch point density, sensitive and driftfree. Imperious to environmental conditions such as liquid splashes and washdown, these screens are the most contaminationresistant available. It can be touched by finger, gloved finger, leather or stylus pen. The life time is up to 35 million finger touches, much better than 4 wire resistive touch screen, delivering fantastic performance in retail, industry, transportation, financial, hospitalKiosk or telecom field. .
Benefits:
1.Long lifetime (almost ten times of 4 Wire Resistive Touch Screen)
2.Finger, gloved hand and stylus activation
3.Contaminant proof and liquid resistance
4.High accuracy and durability
5.High resolution and sensitivity
Applications:
·GPS
·POS
·Medical
·All-In-one
·Light industrial
·Portable sport devices
·Access control terminals
·Portable medical devices
·LCD and LED touch monitors
·Home appliances and other fields

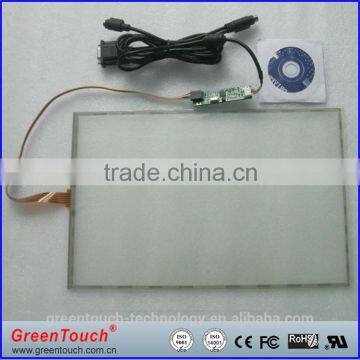

EETI RS232/USB controller show:

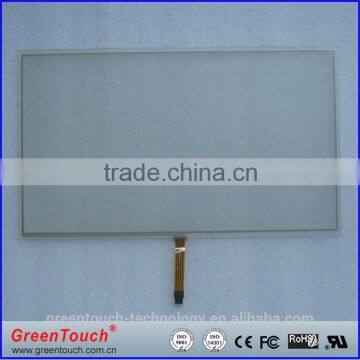

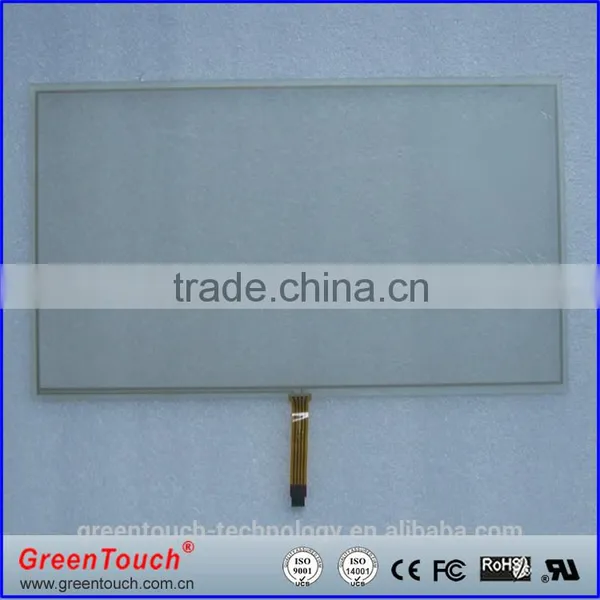

Product pictures:
Specifications:
Item model | GT-5W-*** | |
Detection method | 5 Resistive | |
Available Size | 10.4"~22" | |
Aspect ratio | 4:3/16:9/16:10 | |
Input method | Finger or touch pen | |
Touch action force | 20~80g | |
Position accuracy | 4.5~5mm | |
Operating Voltage | DC≤10V | |
Operating current | 5~25mA | |
Operating temperature | -10°C~60°C | |
Storage temperature | -20°C~70°C | |
Humidity | 10%~90%RH at 60°C, non-condensing | |
Relative humidity | 10%~90%RH at 40°C, non-condensing | |
Response time | <10ms | |
Transparency | ≥78% | |
Surface hardness | 3H | |
Material | Glass + Film | |
Thickness | ITO Glass:1.3~2.3mm | |
Light transmission | 92%~100% | |
Durability | Scratch-free; More than 50,000,000 touches in one location without failure | |
Surface Disposal | Glare hard coating;Anti-Newton ring | |
Working environment | Under sunlight,indoor and outdoor | |
Pen hitting life | ≥10,000,000/point | |
Pen sliding Durability | ≥500,000 times | |
Finger Touch life | ≥35,000,000 times | |
Certificates | CE,FCC,RoHS | |
OS | EETI USB Controller | Windows 2000/Windows XP/Win 7/ Win8/Linux/Android/DOS/QNX/MAC |
EETI RS232 Controller | Windows 2000/XP/Win7 8/Linux/Android/Linux(Ubuntu 5.1/6.06 etc.)/Windows NT4/DOS/QNX/Windows CE | |
Package:
Certificates:
Payment & Shipping:
Factory show:
