15'' 5 wire resistive touch screen
skype:touchscreensales

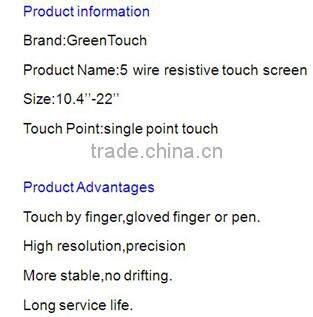

Descriptions:
GreenTouch 5-wire resistive touch screen—features unrivaled accuracy, reliability, superior light transmission, highest touch point density, sensitive and drift-free. Imperious to environmental conditions such as liquid splashes and washdown, these screens are the most contamination-resistant available. It can be touched by finger, gloved finger, eather or stylus pen. The life time is up to 35 million finger touches, much better than 4 wire resistive touch screen, delivering fantastic performance in retail, industry, transportation, financial, hospital, Kiosk or telecom field. .
Benefits:
.Long lifetime (almost ten times of 4 Wire Resistive Touch Screen)
.Finger, gloved hand and stylus activation
.Contaminant proof and liquid resistance
.High accuracy and durability
.High resolution and sensitivity
Applications:
·GPS
·POS
·Medical
·All-In-one
·Light industrial
·Portable sport devices
·Access control terminals
·Portable medical devices
·LCD and LED touch monitors
·Home appliances and other fields

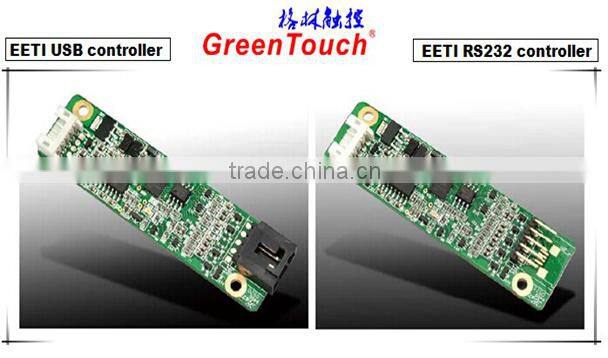

EETI RS232/USB controller show:

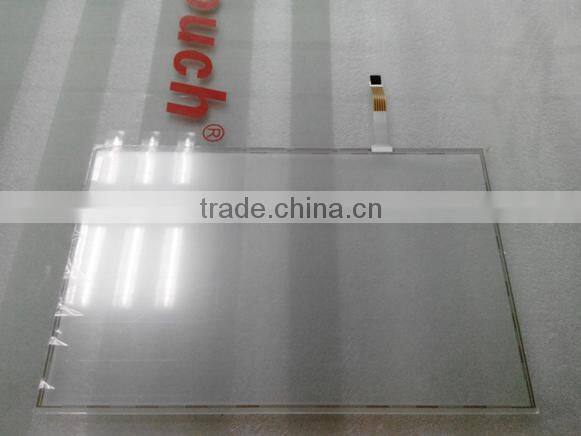

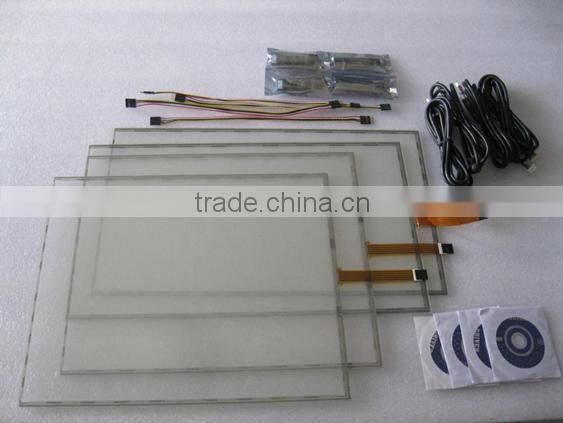

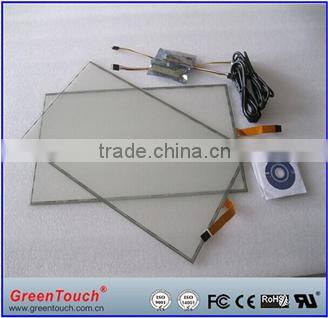

Product pictures:
Specifications:
Item model |
GT-5W-21.5 |
|
Detection method |
5 Resistive |
|
Available Size |
10.4"~22" |
|
Aspect ratio |
4:3/16:9/16:10 |
|
Input method |
Finger or touch pen |
|
Touch action force |
20~80g |
|
Position accuracy |
4.5~5mm |
|
Operating Voltage |
DC≤10V |
|
Operating current |
5~25mA |
|
Operating temperature |
-10°C~60°C |
|
Storage temperature |
-20°C~70°C |
|
Humidity |
10%~90%RH at 60°C, non-condensing |
|
Relative humidity |
10%~90%RH at 40°C, non-condensing |
|
Response time |
<10ms |
|
Transparency |
≥78% |
|
Surface hardness |
3H |
|
Material |
Glass + Film |
|
Thickness |
ITO Glass:1.3~2.3mm |
|
Light transmission |
92%~100% |
|
Durability |
Scratch-free; More than 50,000,000 touches in one location without failure |
|
Surface Disposal |
Glare hard coating;Anti-Newton ring |
|
Working environment |
Under sunlight,indoor and outdoor |
|
Pen hitting life |
≥10,000,000/point |
|
Pen sliding Durability |
≥500,000 times |
|
Finger Touch life |
≥35,000,000 times |
|
Certificates |
CE,FCC,RoHS |
|
OS |
EETI USB Controller |
Windows 2000/Windows XP/Win 7/ Win8/Linux/Android/DOS/QNX/MAC |
EETI RS232 Controller |
Windows 2000/XP/Win7 8/Linux/Android/Linux(Ubuntu 5.1/6.06 etc.)/Windows NT4/DOS/QNX/Windows CE |
|
Package:
Certificates:
Payment & Shipping:

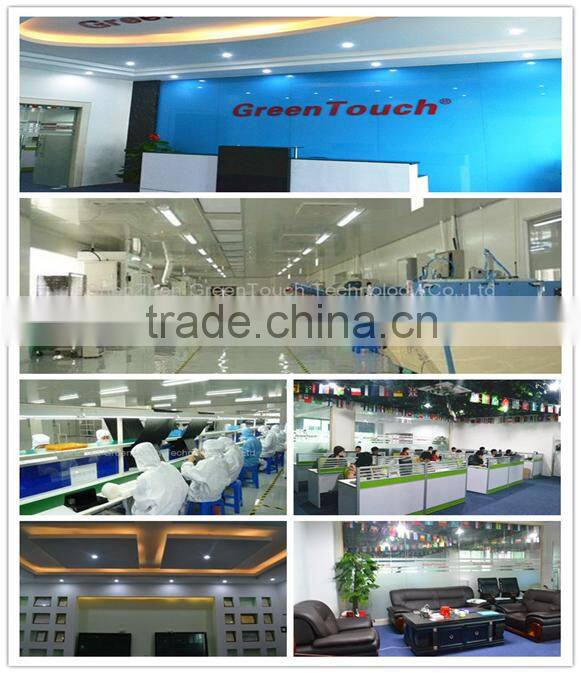

Factory show:
