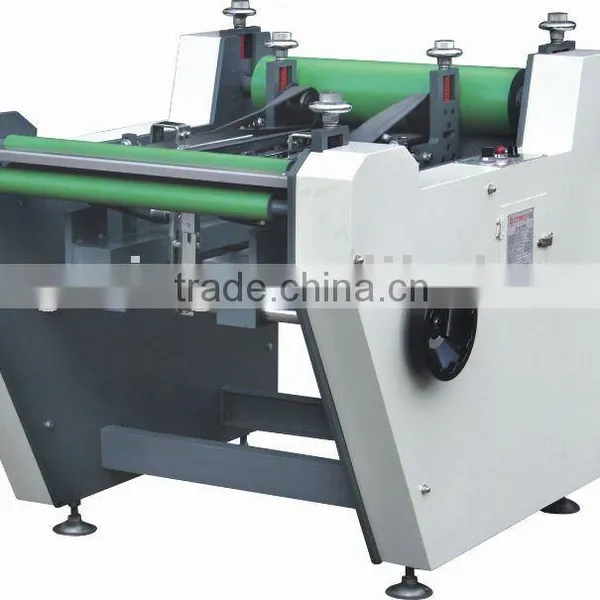

Help CenterHM-600C Double-sided Edge Folding Machine
Related Products
-
HM-420 Rigid Box Folding-in MachineUS$ 10 - 10MOQ: 1 Set -
HM-YP540 Box Pressing MachineUS$ 1 - 1MOQ: 1 Set
-
HM-500A Automatic Paper Rigid Box Forming MachineUS$ 1 - 16,000MOQ: 1 Set
-
HM-TDG500 Semi-automatic Rigid Box MakerNegotiableMOQ: 1 Set
-
HM-500 Box Wrapping Machine( Package Machine)US$ 1 - 7,000MOQ: 1 Set
Specifications
HM-600C Double-sided Edge Folding Machine has superior quality and reasonable price, and is suitable for all book cover.This is one part of Semi-automatic Case Maker, mainly for long-side Cover Folding. It would
be better match with Gluing Machine( Such as our item HM-650A, HM-650B, HM-650C).
Working details:
Firstly: glue the cover paper with Gluing Machine;
Secondly: fix the cardboard to the glued cover pape by hand;
Thirdly: the fixed unit will be conveyed to HM-600C where the tow long sides will be folded at one time.
Besides, this machine could also press the folded edges with rubble rollers and avoid scratching on the
paper.
Technical Parameters
Model |
HM-600C |
Sheet Thickness |
80-200g |
Sheet Cover Width |
100-600mm |
Sheet Cover Length |
100-1000mm |
Sheet Cover Thickness |
1-4mm |
Production Speed |
10-30pcs/min |
Power Requirement |
AC220V |
Power |
0.75KW |
Net Weight |
530kg |
Machine Overall Dimension |
1850x1150x1050mm |
