HM-TDG500 Semi-automatic Box Making Machine
Semi-automatic rigid box making machine is a complete set of deluxe coverpaper and greyboard box assembly line, which is composed of 3 sets of small machines. They are all of quick speed, high product quality, and simple operation.

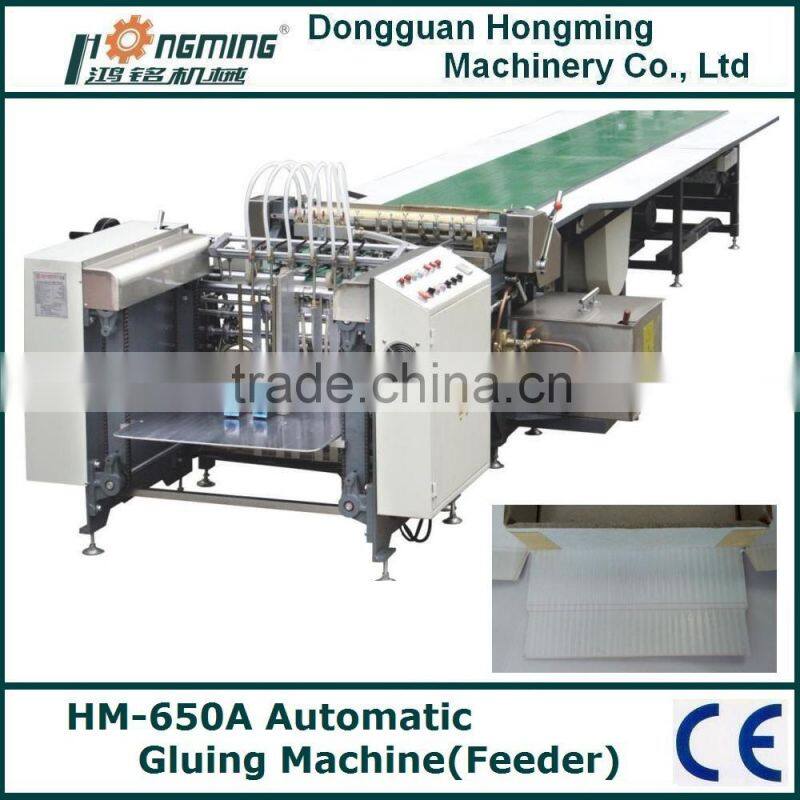

HM-650A Automatic Glue Coating Machine:
Automatic gluing machine is suitable for feeding and gluing the paper which is for making book cover, rigid box, set up box, etc.
It has the function of automatic feeding paper and gluing, automatic temperature control and 24-hours timer.
The draft fan under the assembly lines prevents cover paper from curling and bubbling.
Feeder absorption and feed are applied, which contribute to the characteristic of steady and quick paper conveyance.
Hot melt adhesives (animal adhesives) are used for health and environmental protection, and they also save cost because of the recycle system and the adjustable speeds.
Ps:
1, Standard 4.2m working table; 6.2m, 8.2m working table can be customized per to the customer's need.
2, Remodel for white glue.
Model |
HM-650A |
HM-850A |
Working Width |
80-600mm |
80-800mm |
Sheet Thickness |
80-200gsm |
80-200gsm |
Production Speed |
7-40pcs/min |
7-40pcs/min |
Voltage |
AC380V |
AC380V |
Power |
7.45kW |
7.45kW |
Dimension |
6350x1650x1100mm |
6350x1850x1100mm |
Net Weight |
1100kg |
1275kg |

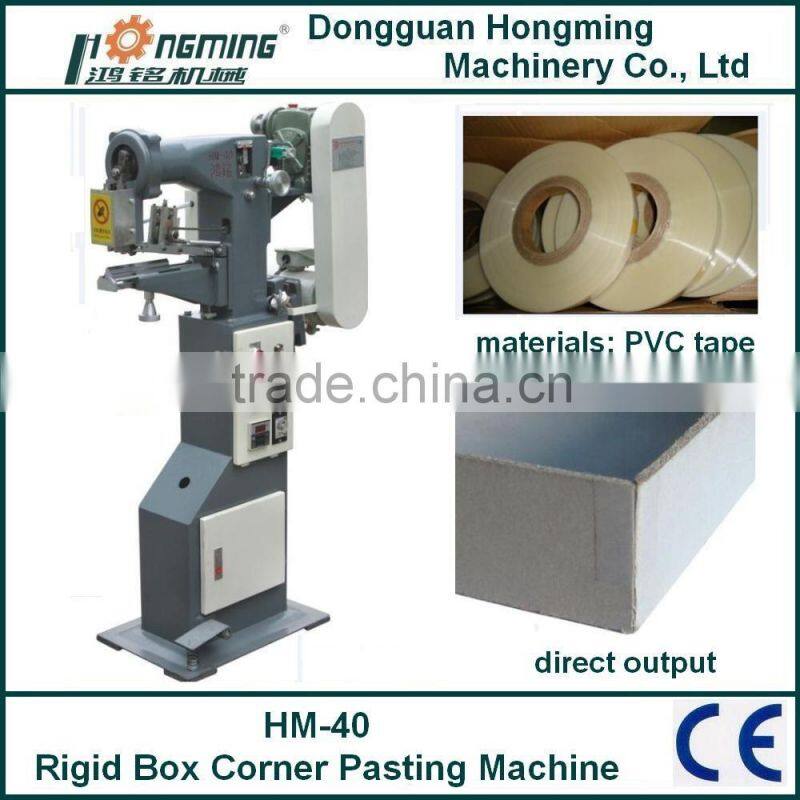

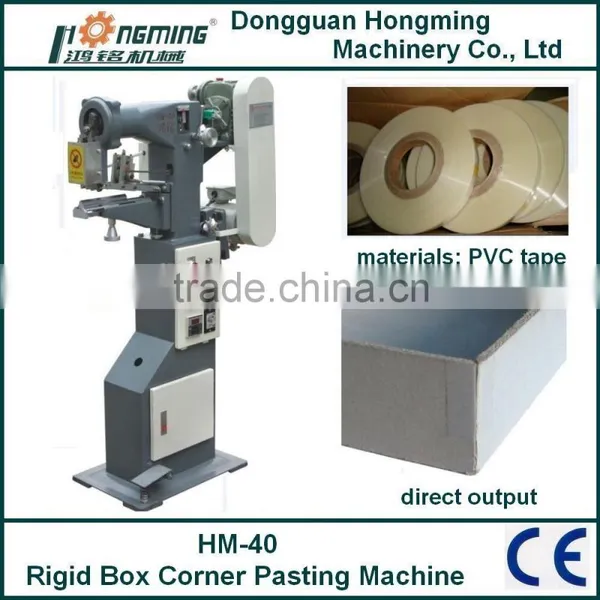

HM-40 Corner Pasting Machine is mainly used for forming and corner pasting for gray boards to be applicable in coordination.
HM-40 is a machine with function of pasting the four angles of the inside box (grey board box) of Rigid box manually.
Boxes pasted by it can be with features of stable, smooth & elegant. It is the indispensable equipments for box making.
This machine can make approximately 1000-1300 box covers every hour.
By the way, manual positioning the pasted greyboard box onto the glued coverpaper. This positioning can also achieve 1000-1300 such boxes every hour.
Model |
HM-40 |
HM-40B |
HM-40C |
Minimum Case Size |
40×40×10mm |
40×40×10mm |
40×40×10mm |
Production Speed |
20-40pcs/min |
20-40pcs/min |
20-40pcs/min |
Tape width |
19mm |
38mm |
19mm |
Tape length Max |
30mm |
30mm |
60mm |
Power Requirement |
AC220V |
AC220V |
AC220V |
Power |
0.4kW |
0.4kW |
0.4kW |
Net Weight |
170kg |
170kg |
170kg |
Machine Dimension |
800×500×1400mm |
800×500×1400mm |
800×500×1400mm |

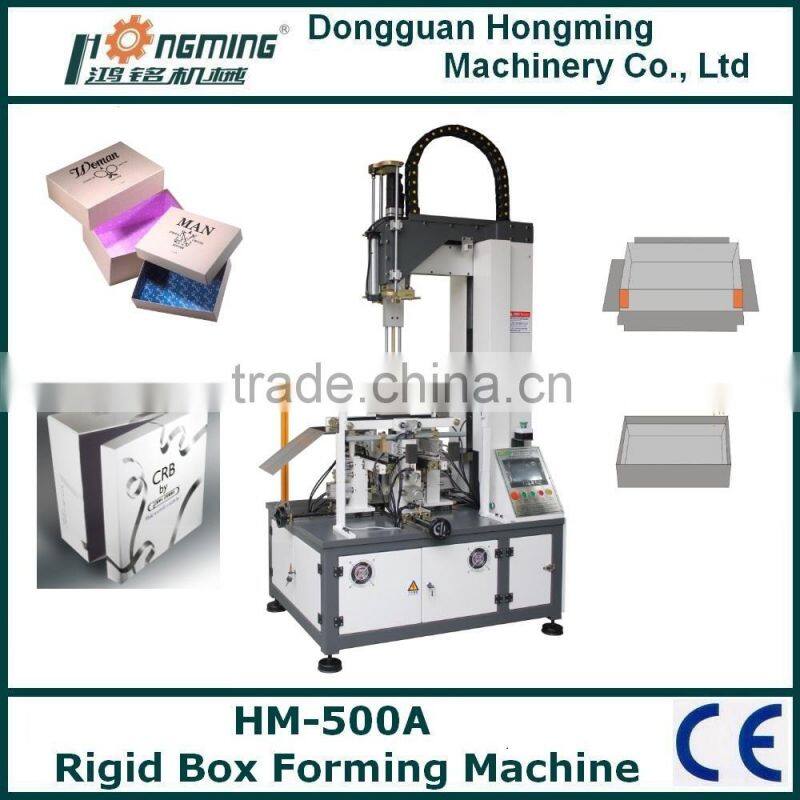

HM-500A Automatic Rigid Box Forming Machine can wrap the four flaps of the coverpaper onto the greyboard box after manually positioning the greyboard box. .
This machine is available in wrapping and folding the paper edge for rigid box, fancy box, and cardboard box, etc.
- It applies servo motor and PLC control.
- The adjusting of the 4 sides is controlled by screw, thus more precise and easier.
- The electric parts apply international brand. Low malfunction and high accuracy.
- With alarm functions display on screen.
- With emergency stop switch.
- When the machine is working, the maximum height could be 2200mm.
Model |
HM-500A |
HM-320 |
Box Size Max. |
500x400x120mm |
300x200x120mm |
Box Size Min. |
80x60x10mm |
45x45x10mm |
Folding-in Depth (R) |
10-60mm |
10-60mm |
Power |
2.2kW |
2.2kW |
Speed |
10-25pcs/min |
10-27pcs/min |
Voltage |
AC220V |
AC220V |
Air pressure |
0.6MPa |
0.6MPa |
Net Weight |
960kg |
860kg |
Machine Dimension |
1180x920x2000mm |
980x720x2000mm |

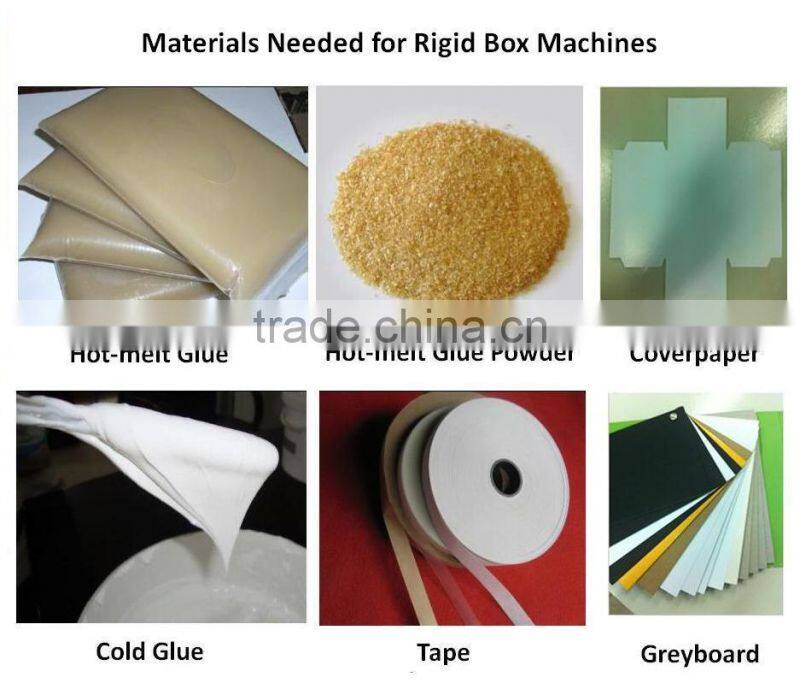

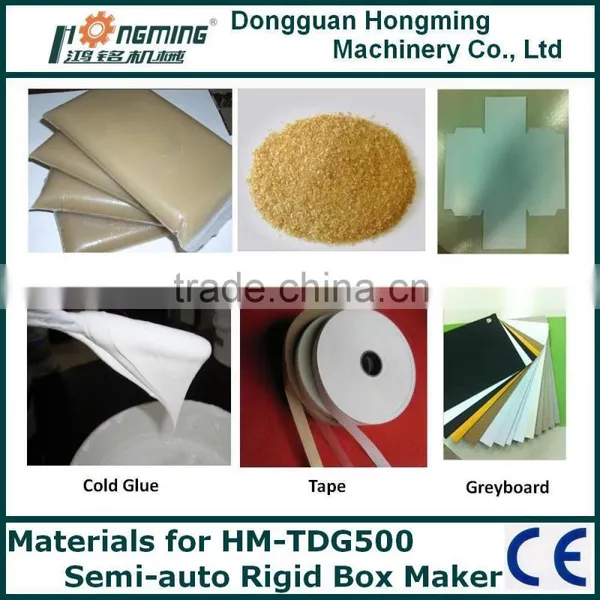

HM-TDG500 Semi-automatic Box Making Machine's materials:

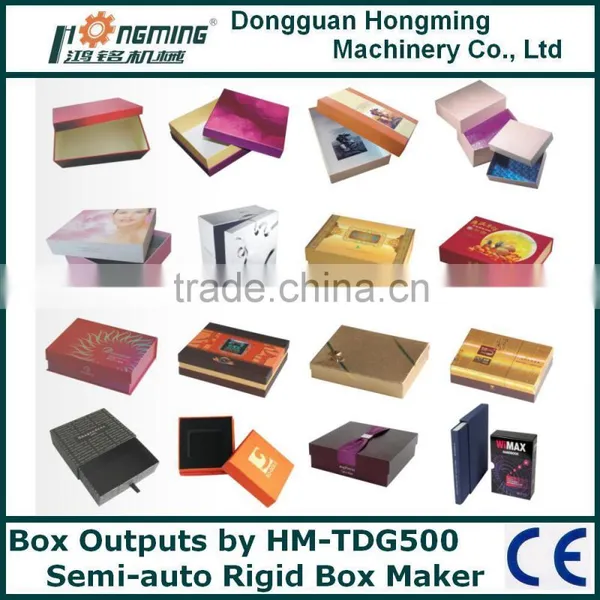

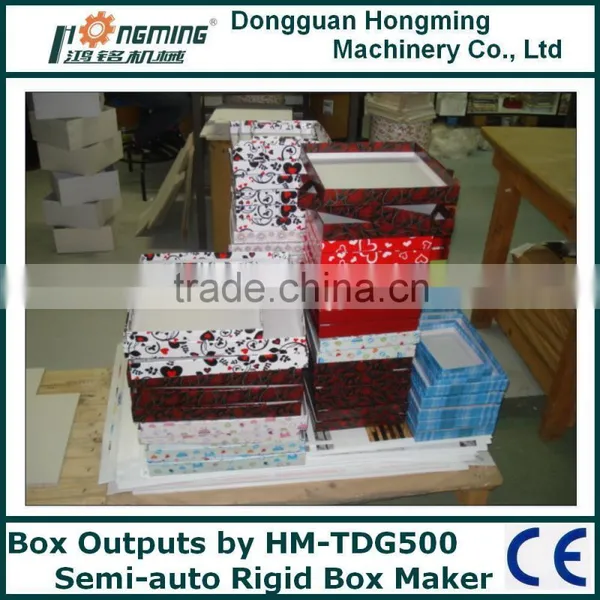

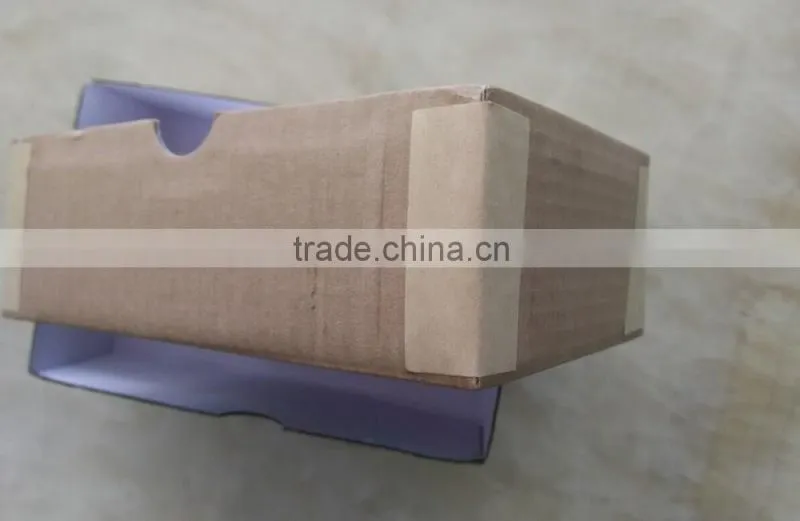

HM-TDG500 Semi-automatic Box Making Machine's output effects:

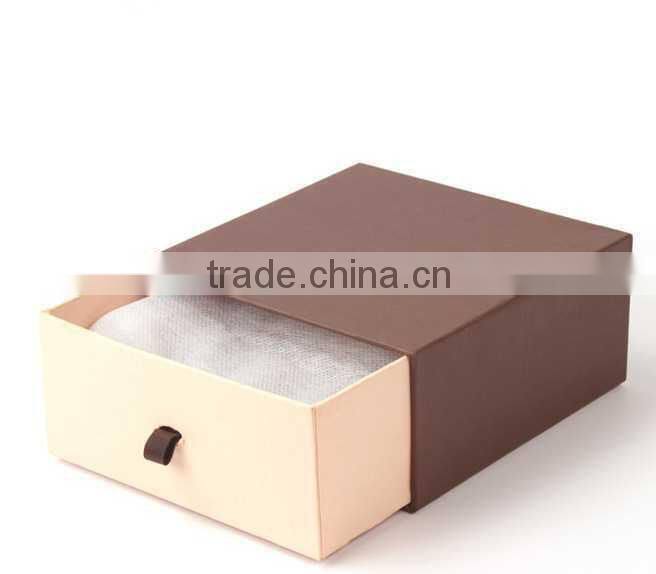

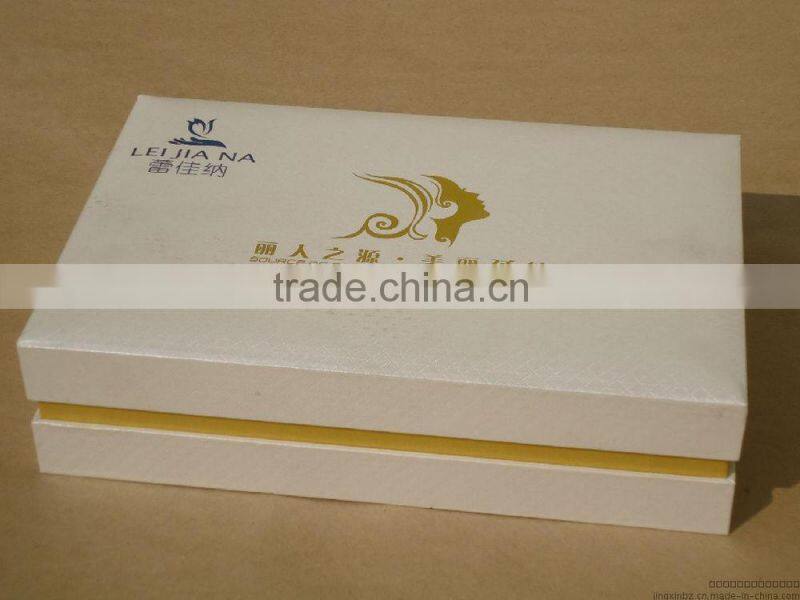

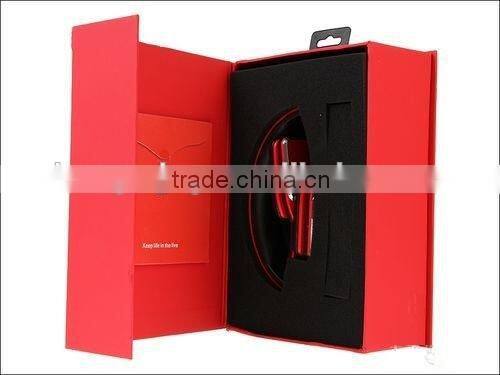

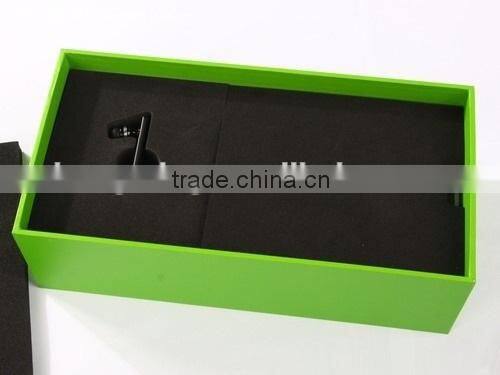

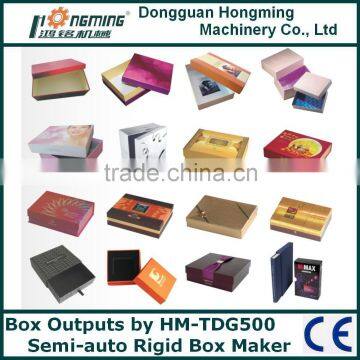

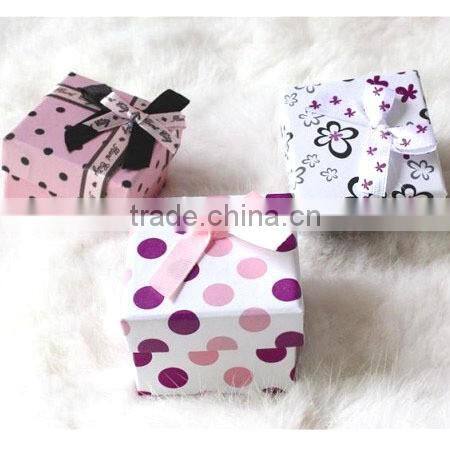

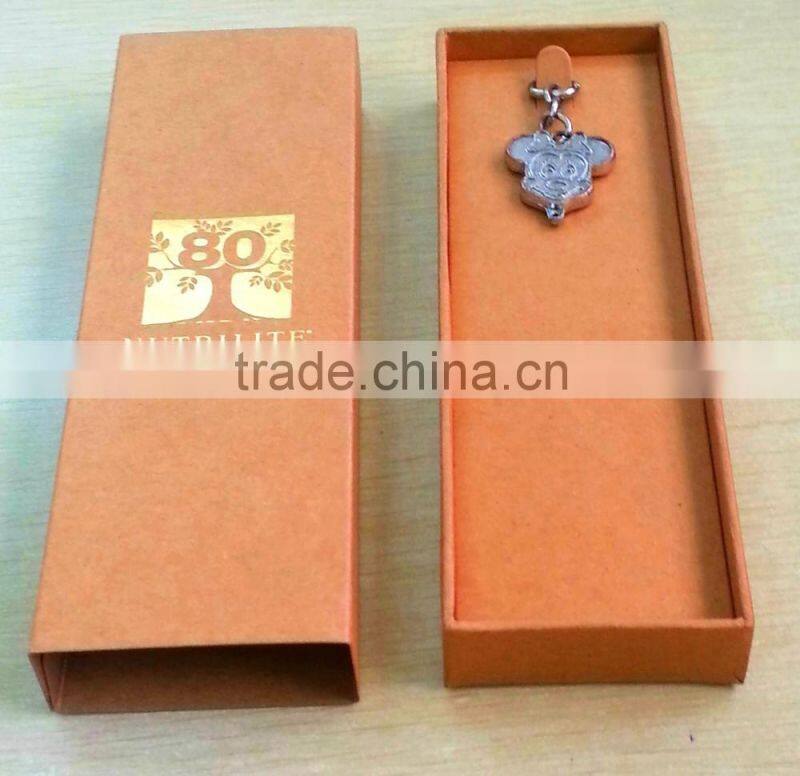

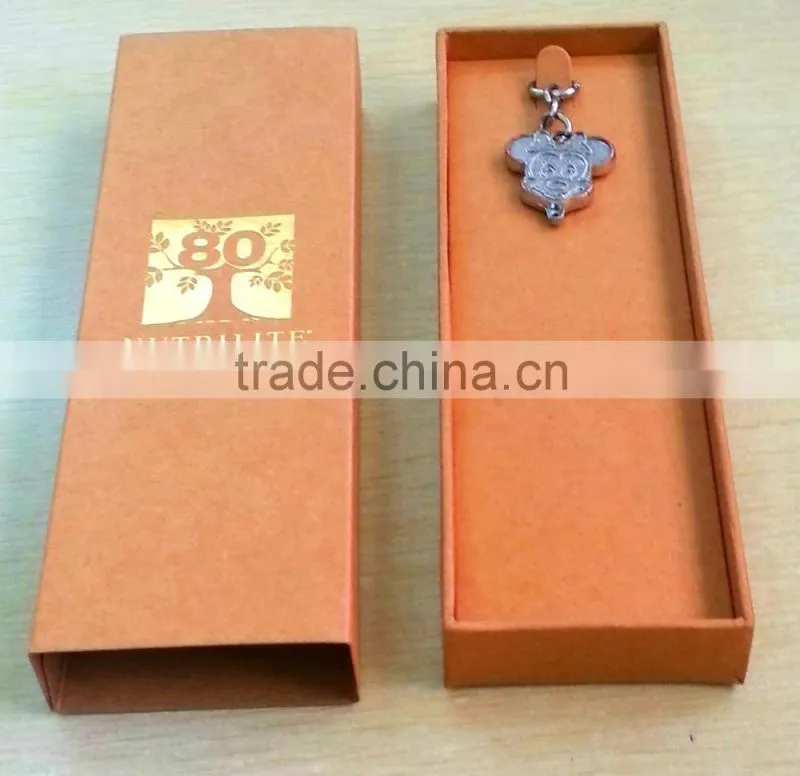

HM-TDG500 Semi-automatic Box Making Machine's final outputs:
