HM-TDG500 Semi-automatic Rigid Box Making Line
Semi-automatic rigid box making machine is a complete set of deluxe coverpaper and greyboard box assembly line, which is composed of 3 sets of small machines. They are all of quick speed, high product quality, and simple operation.
HM-650A Glue Coating Machine of HM-TDG500 Semi-automatic Rigid Box Making Line
The main engines are equipped with suction devices under the conveyor belt to effctively avoiding glued paper’s bending and curling thus avoid bubbling inside the finished box.
There are more types of gluing machine of semi-auto and automatic with multiple sizes, please refer to our gluing machine for details.
HM-40 Corner Pasting Machine of HM-TDG500 Semi-automatic Rigid Box Making Line
This is mainly used for forming and corner pasting for gray boards to be applicable in coordination.
This machine can make approximately 1000-1300 box covers every hour.
By the way, manual positioning the pasted greyboard box onto the glued coverpaper. This positioning can also achieve 1000-1300 such boxes every hour.

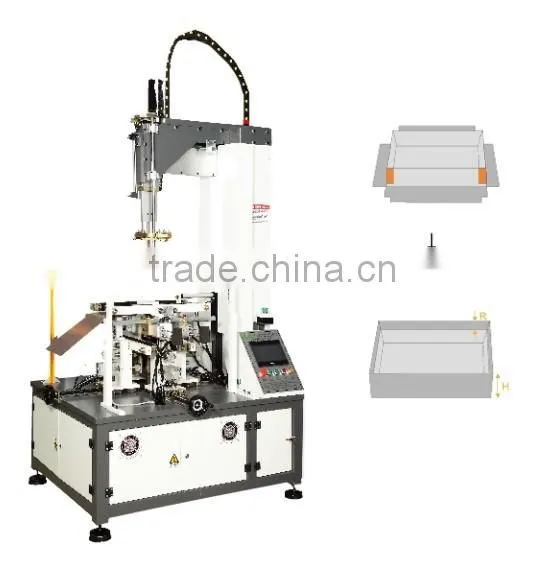

HM-500A Automatic Rigid Box Forming Machine of HM-TDG500 Semi-automatic Rigid Box Making Line
This machine is available in wrapping and folding the paper edge for rigid box, fancy box, and cardboard box, etc.
- It applies servo motor and PLC control.
- The adjusting of the 4 sides is controlled by screw, thus more precise and easier.
- The electric parts apply international brand. Low malfunction and high accuracy.
- With alarm functions display on screen.
- With emergency stop switch.
- When the machine is working, the maximum height could be 2200mm.
Model |
HM-500A |
HM-320 |
Box Size Max. |
500x400x120mm |
300x200x120mm |
Box Size Min. |
80x60x10mm |
45x45x10mm |
Folding-in Depth (R) |
10-60mm |
10-60mm |
Power |
2.2kW |
2.2kW |
Speed |
10-25pcs/min |
10-27pcs/min |
Voltage |
AC220V |
AC220V |
Air pressure |
0.6MPa |
0.6MPa |
Net Weight |
960kg |
860kg |
Machine Dimension |
1180x920x2000mm |
980x720x2000mm |
To conclude, the output will be 800-1200 boxes in 1hour with 7 or 8 workers: 2 workers for corner pasting, 2 workers for positioning, 2 workers for forming,and 1 or 2 workers for QC.
HM-TDG500 Semi-automatic Rigid Box Making Line's materials:

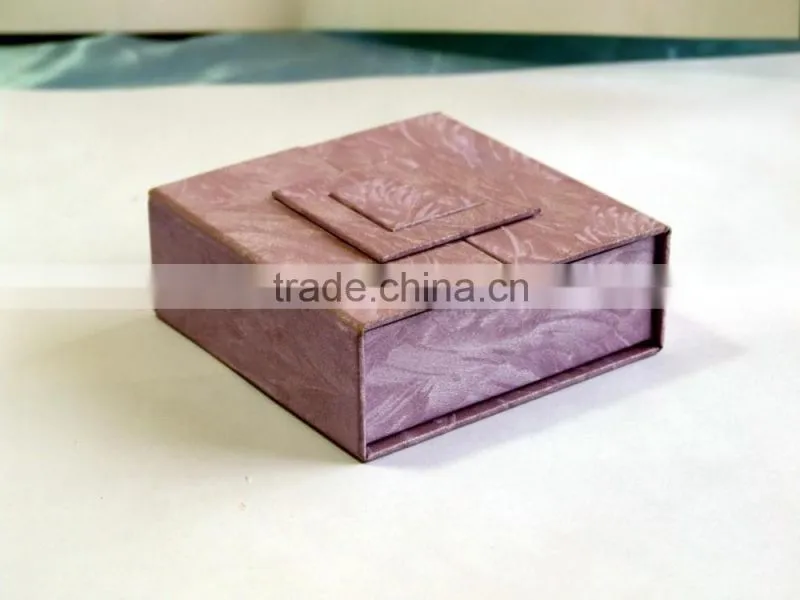

HM-TDG500 Semi-automatic Rigid Box Making Line's final outputs:
