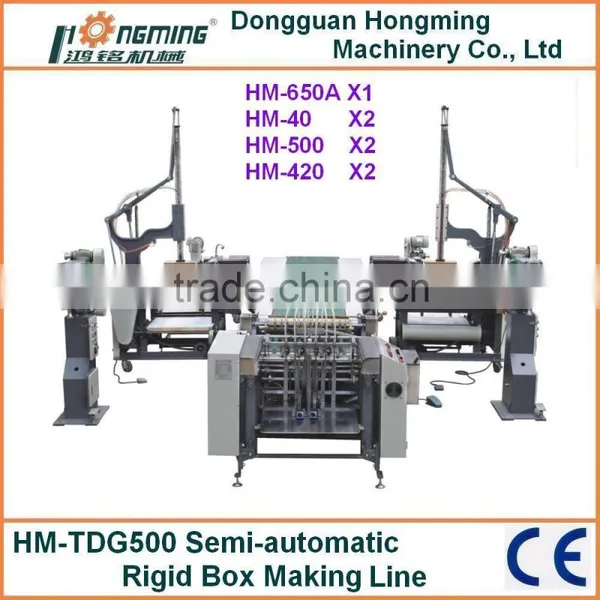

HM-TDG500 Semi-automatic Set-up Box Making Line

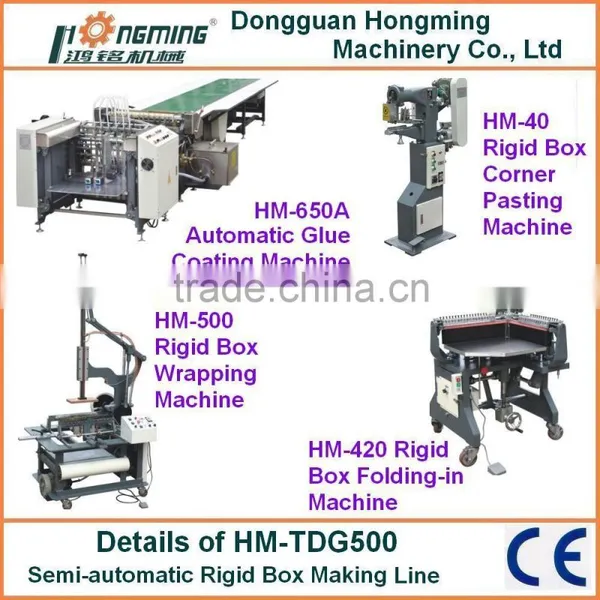

Semi-automatic rigid box making machine is a complete set of deluxe coverpaper and greyboard box assembly line, which is composed of 4 sets of small machines. They are all of quick speed, high product quality, and simple operation.

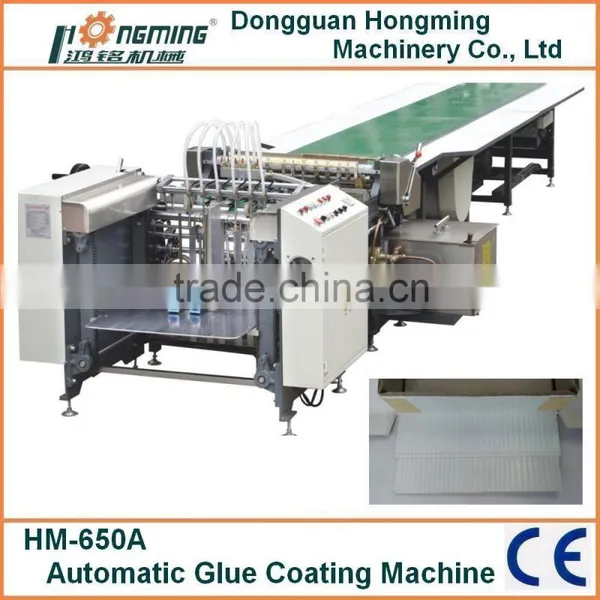

HM-650C Glue Coating Machine of HM-TDG500 Semi-automatic Set-up Box Making Line
The main engines are equipped with suction devices under the conveyor belt to effctively avoiding glued paper’s bending and curling thus avoid bubbling inside the finished box.
There are more types of gluing machine of semi-auto and automatic with multiple sizes, please refer to our gluing machine for details.

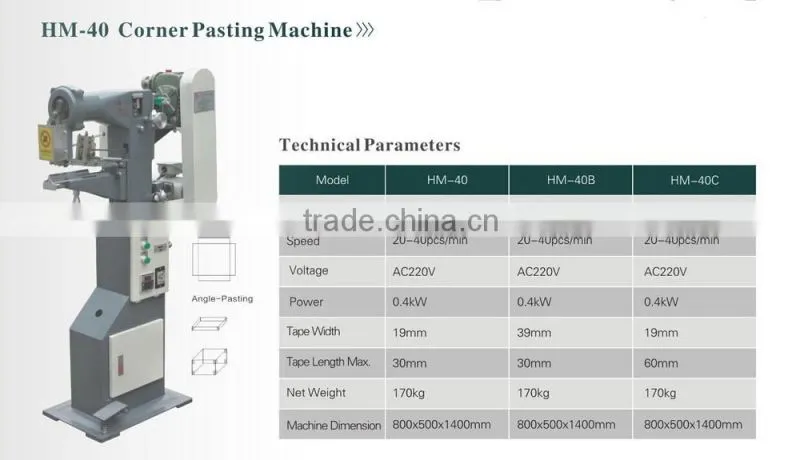

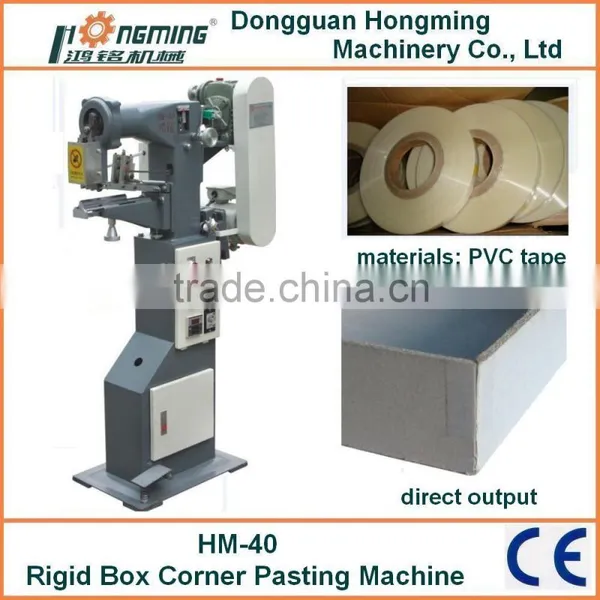

HM-40 Corner Pasting Machine of HM-TDG500 Semi-automatic Set-up Box Making Line
This is mainly used for forming and corner pasting for gray boards to be applicable in coordination.
This machine can make approximately 1000-1300 box covers every hour.
By the way, manual positioning the pasted greyboard box onto the glued coverpaper. This positioning can also achieve 1000-1300 such boxes every hour.

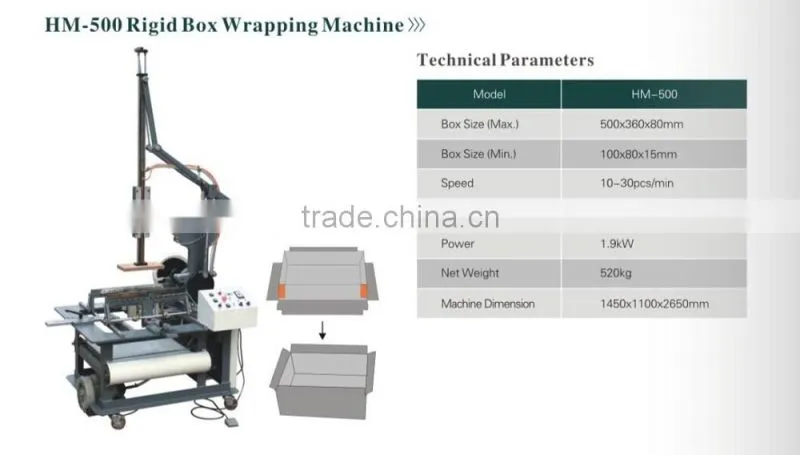

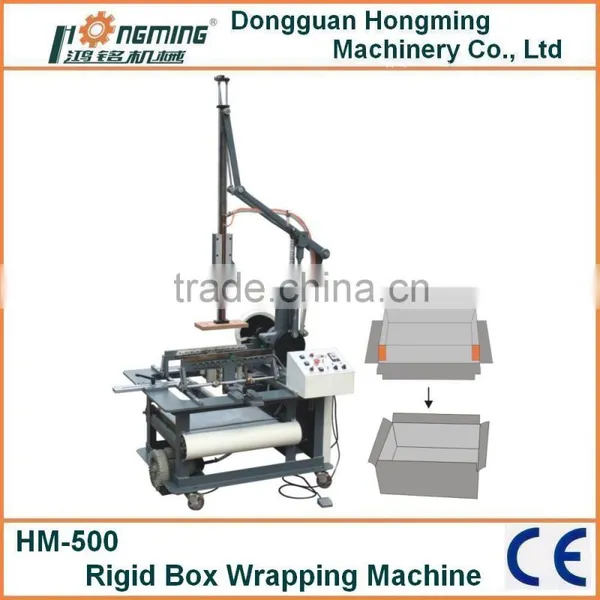

HM-500 Box Wrapping Machine of HM-TDG500 Semi-automatic Setup Box Making Line
This can wrap the four flaps of the coverpaper onto the greyboard box after manually positioning the greyboard box. .

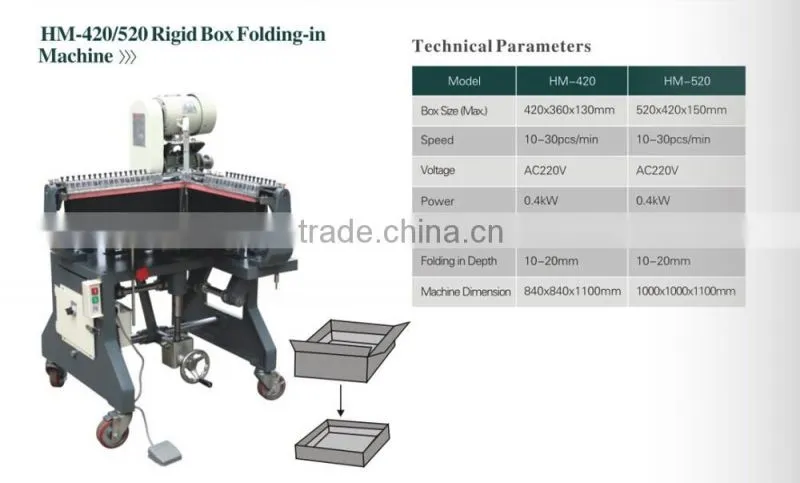

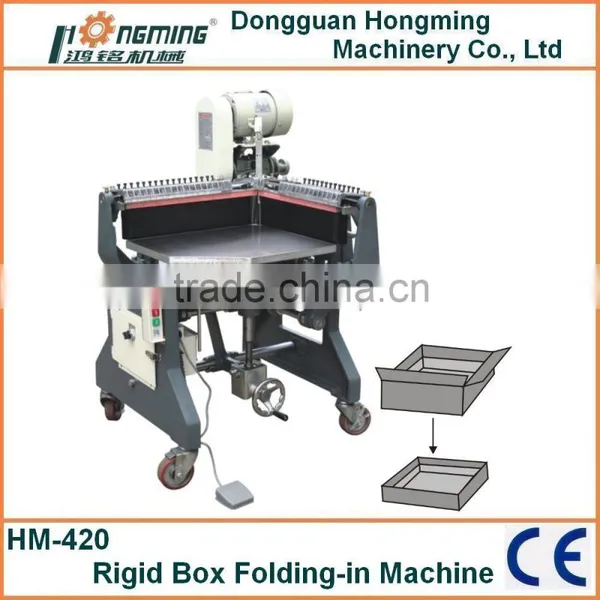

HM-420 Box Flap Folding-in Machine of HM-TDG500 Semi-automatic Set-up Box Making Line
This could automatic fold two adjacent flaps in one time with adjustable pressure nozzles.
There are two sizes of this machine.
To conclude, the output will be 800-1200 boxes in 1hour with 10 or 11workers: 1 worker is for coverpaper feeding, 2 workers for corner pasting, 2 workers for positioning, 2 workers for wrapping, 2 workers for folding, and 1 or 2 workers for QC.
HM-TDG500 Semi-automatic Set-up Box Making Line's materials:
HM-TDG500 Semi-automatic Set-up Box Making Line's final outputs:
