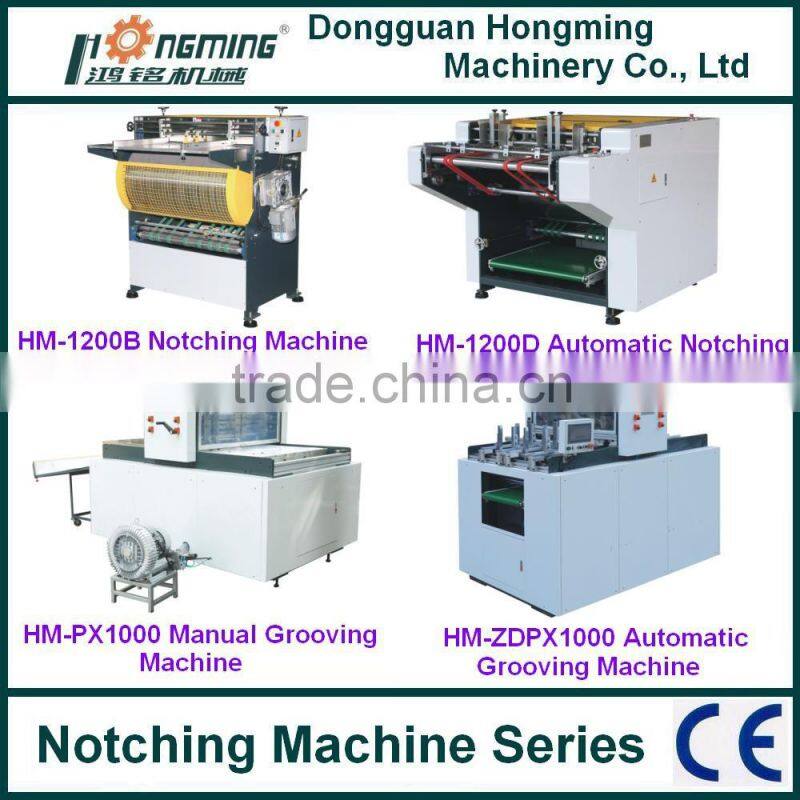

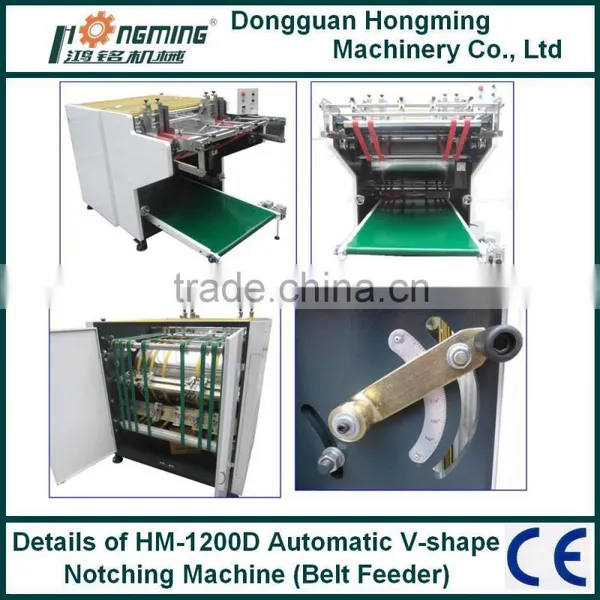

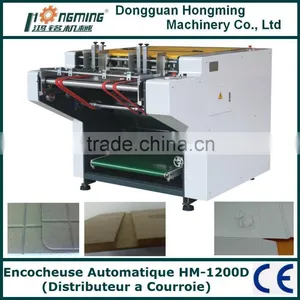

HM-1200D Automatic Notching Machine(Belt Feeder)
HM-1200D Automatic Notching Machine(Belt Feeder) Features and functions:
HM-1200D Notching machine is for notching various types and models of gift boxes and paperboard boxes to make a beautiful appearance, upgrading the products to meet an ideal effect. All the deluxe boxes could not stand the outside grooves on the finished box bottom edge, thus, the inner groove could perfectly avoid this cosmetic issue. Our automatic notching machines could process over 8 tons of greyboard everyday.
The difference between HM-1200D and other traditional notching machine is that, HM-1200D adopts belt sending system, realizing board sending automatically. Highly improve the working efficiency.
Ps: The standard knives and heads are for V-shape.
HM-1200D Automatic Notching Machine(Belt Feeder)'s technical parameters:
Model |
HM-1200D |
Max. Processing Width |
50-950mm |
Length Of Cardboard |
120-600mm |
Distance of each Groove |
0-900mm |
Thickness of Cardboard |
1-4mm |
Grooving Degree |
80-1400 |
The amount of Groove |
8 slots |
Production Speed |
40m/min |
Power/Voltage |
2kW/380V |
Weight |
1500kg |
Dimension |
1865x1500x1350mm |

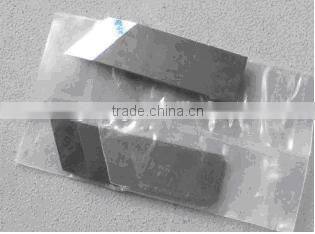

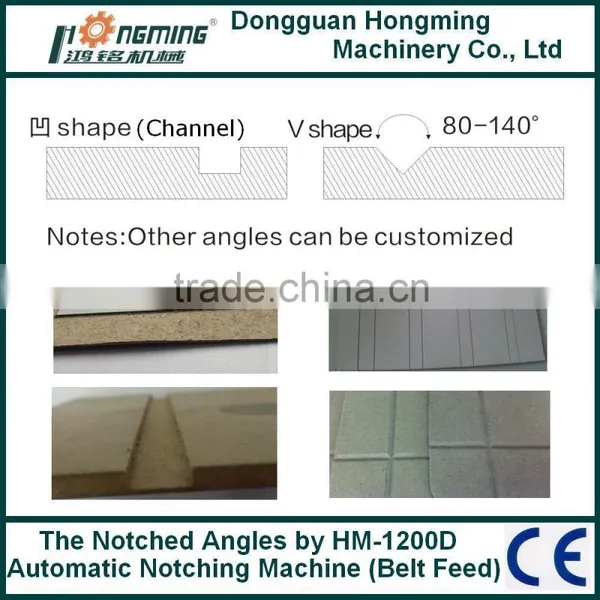

HM-1200D Automatic Notching Machine(Belt Feeder)'s knife to notch:

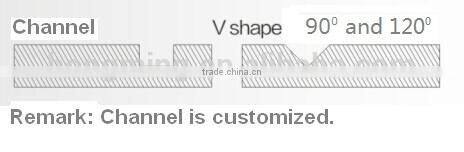

HM-1200D Automatic Notching Machine(Belt Feeder)'s Direct output:

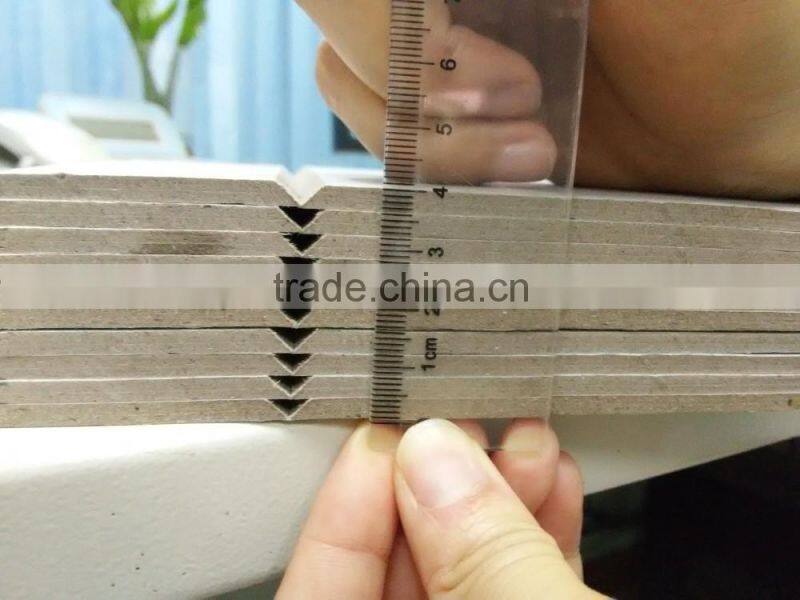

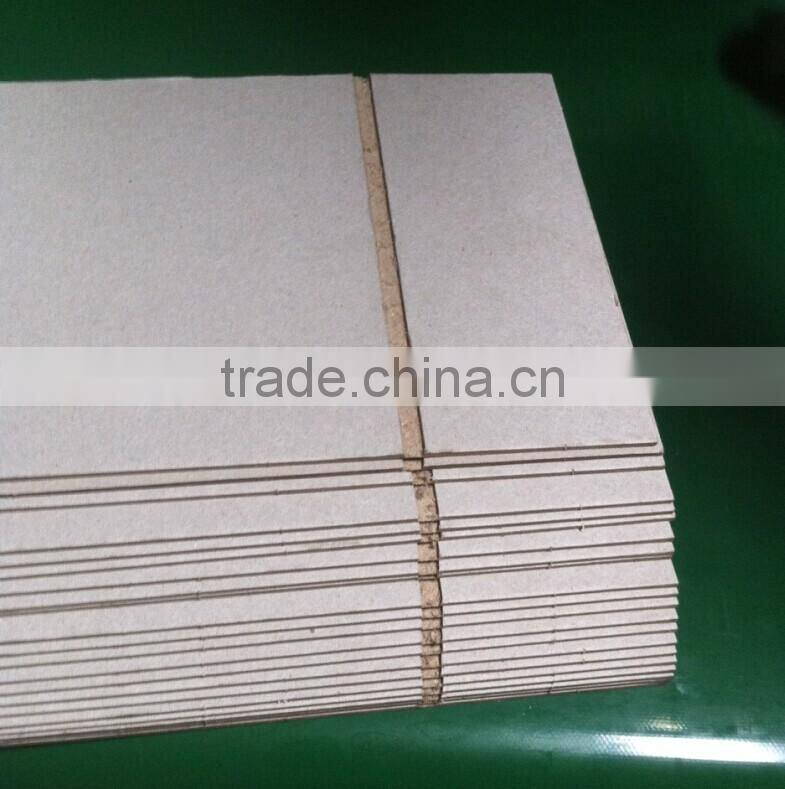

1. greyboard with V-shape:

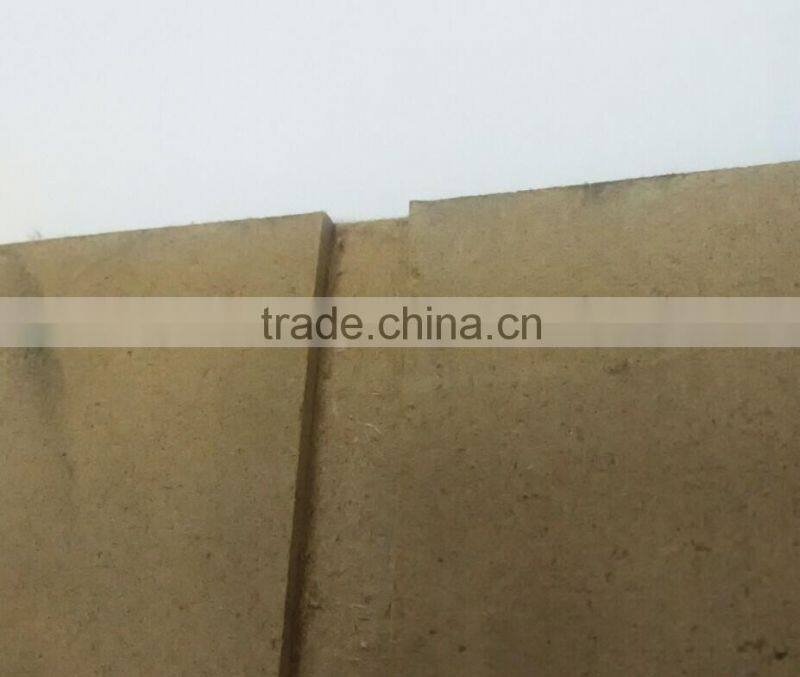

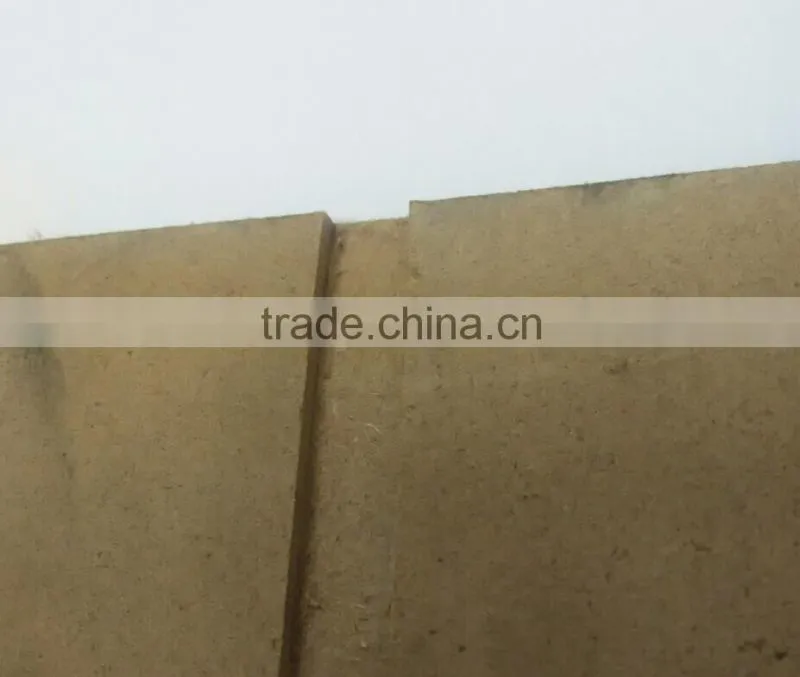

2. greyboard with channel:

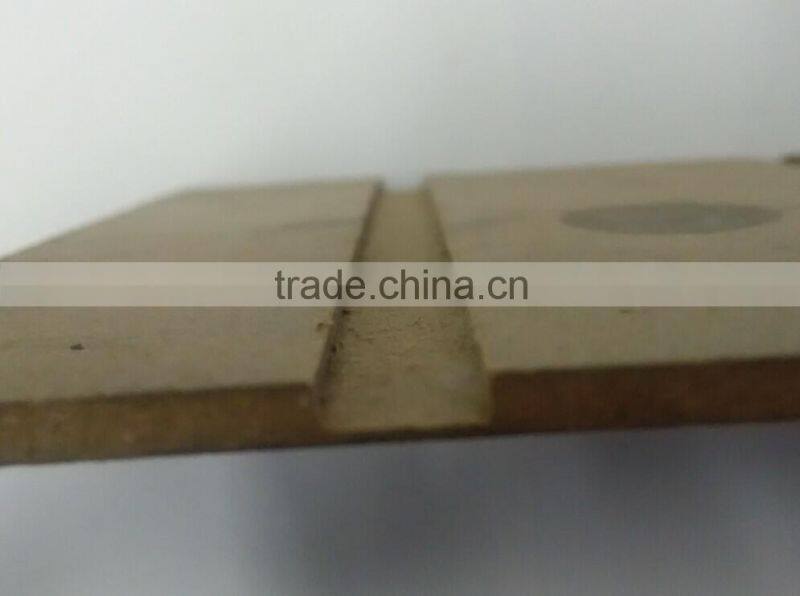

3. MDF with channel:

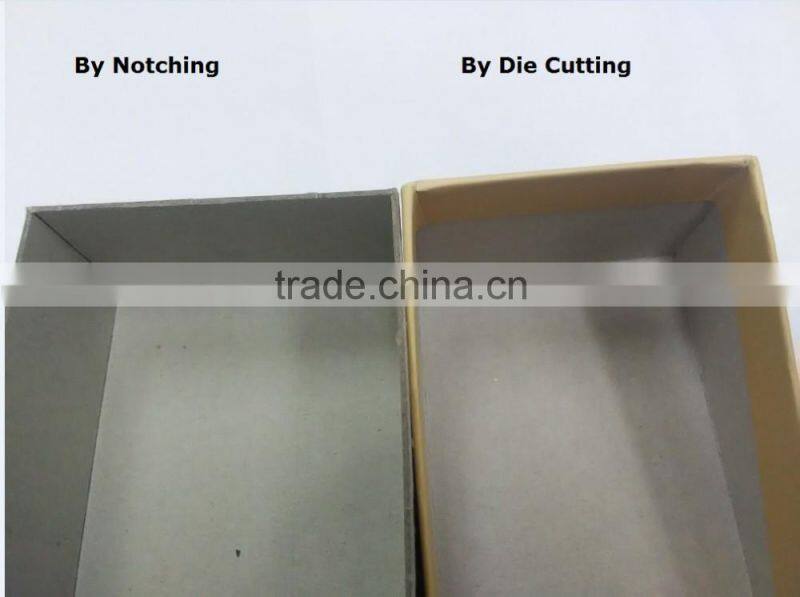

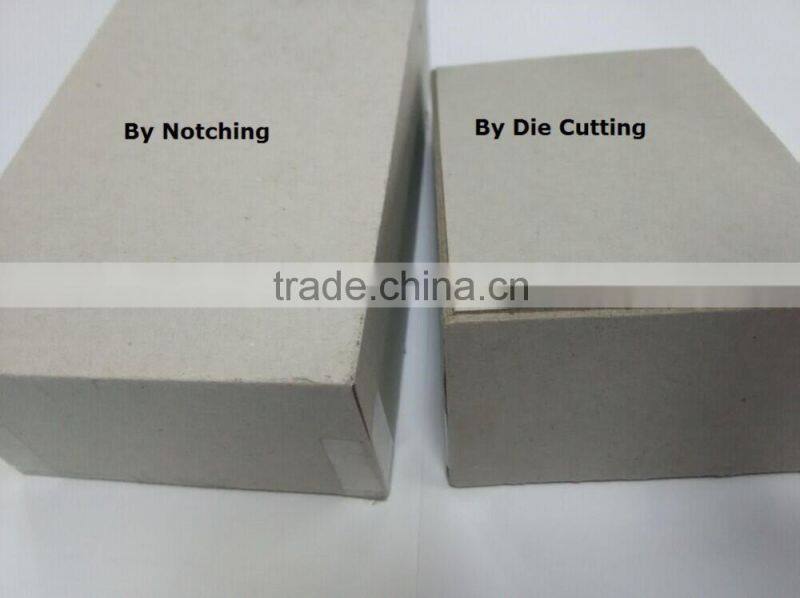

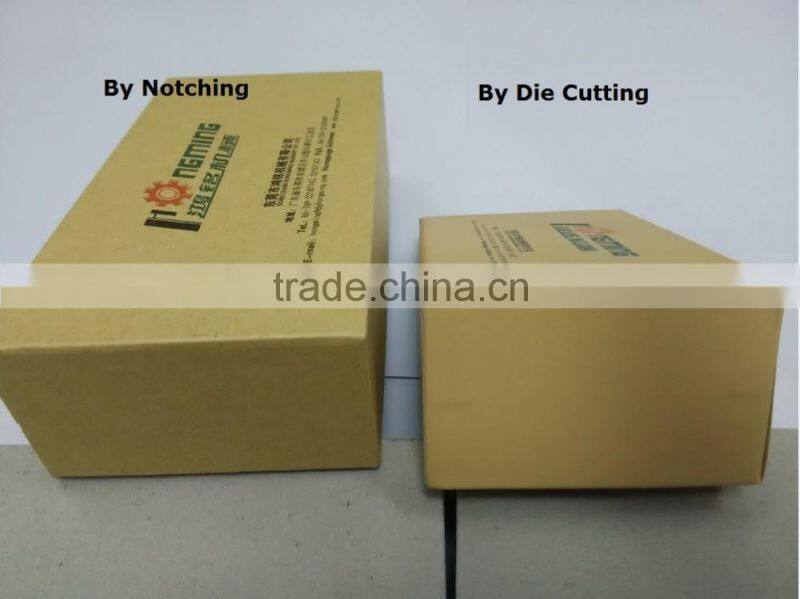

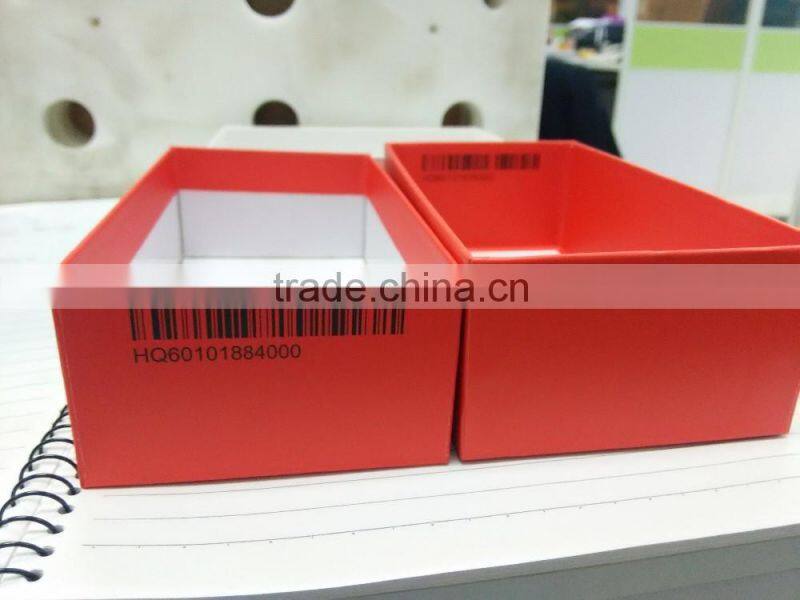

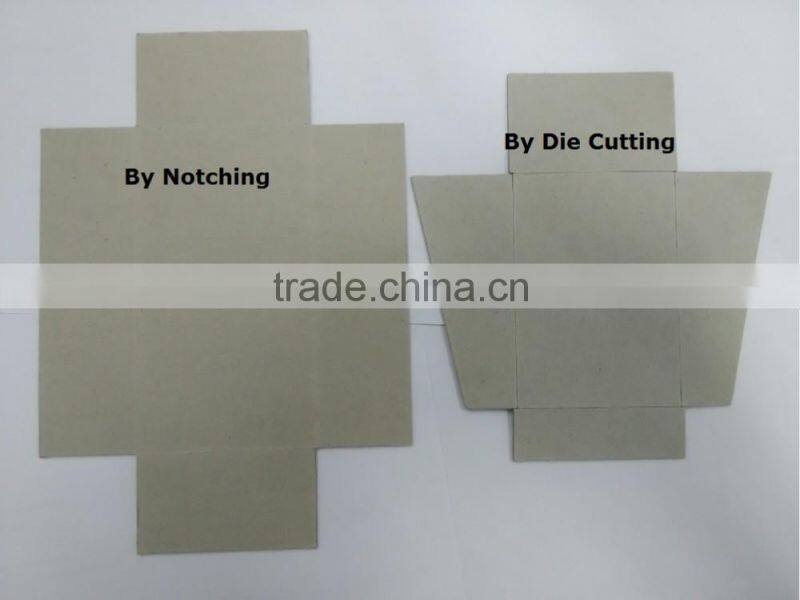

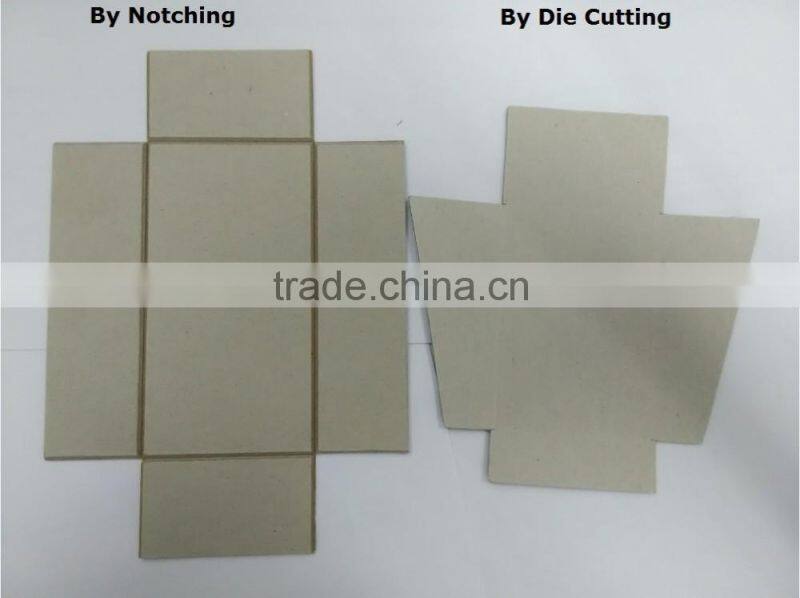

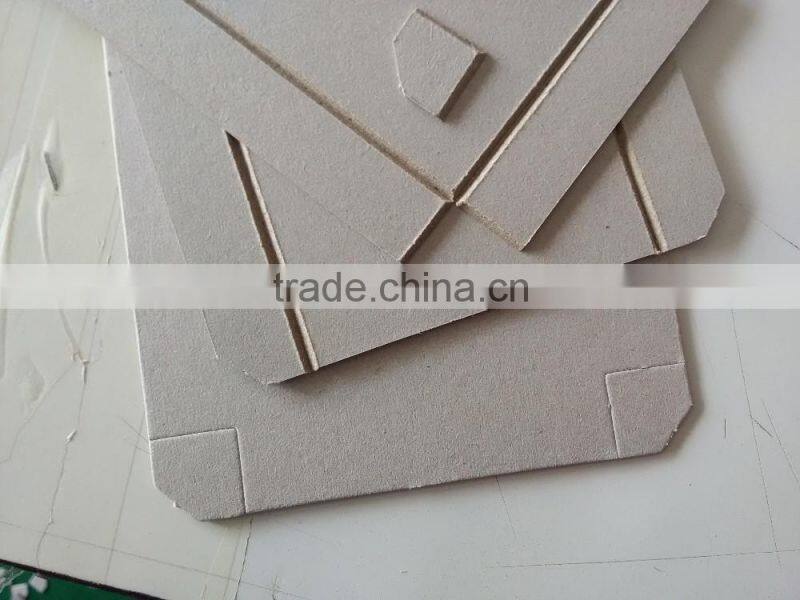

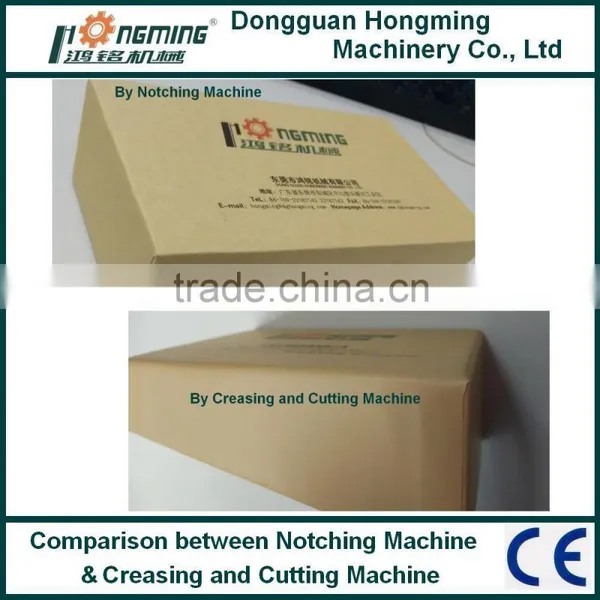

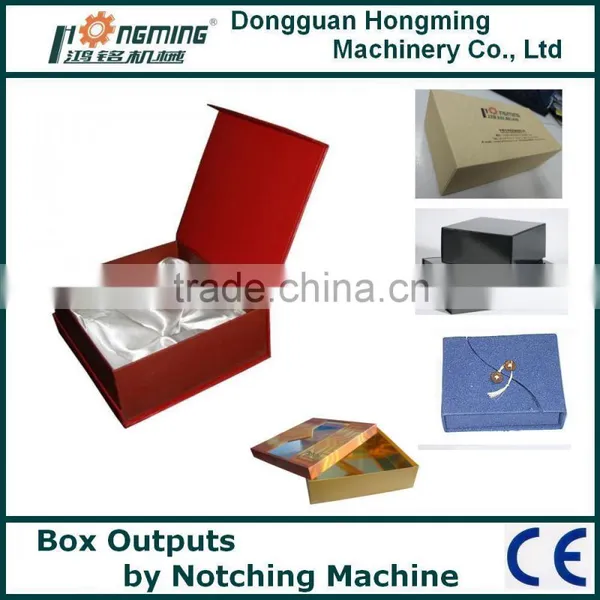

HM-1200D Automatic Notching Machine(Belt Feeder)'s Final Output
HM-1200D Automatic Notching Machine(Belt Feeder)'s Family:
rigid box making machine, gift box maker, phone box making line, big box line, jewelry boxes, pull up box producing machine, chocolate box production machine, shoe box producing line, big box production line
