Specifications
Manual Grooving Machine grooves greybaord on a plate and causes no curve or wrinkle on the greyboard and guarantee the quality.HM-PX1000 Manual Grooving Machine (Manually Feeding)
HM-PX1000 Manual Grooving Machine (Manually Feeding) notch the greybaord on a plate. Thus this machine causes no curve or wrinkle on the greyboard and guarantees the output greyboard quality.
Ps, this machine need air compressor ≥0.75kW.
HM-PX1000 Manual Grooving Machine (Manually Feeding)'s technical parameters:
Model |
HM-PX1000 |
Greyboard With |
50-1000mm |
Greyboard Length |
50-600mm |
Notch Distance |
0-950mm |
Greyboard thickness |
0.3-5mm |
Max Notch numbers |
8 |
Speed |
15-20m/min |
Voltage/Power |
AC380V / 5.5kW |
Net weight |
2000kg |
Dimension |
1900x1300x1400mm |
HM-PX1000 Manual Grooving Machine (Manually Feeding) 's knives for notching:

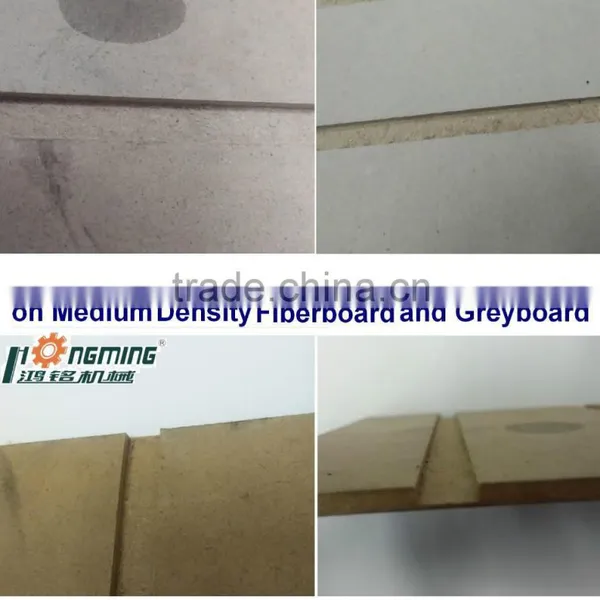

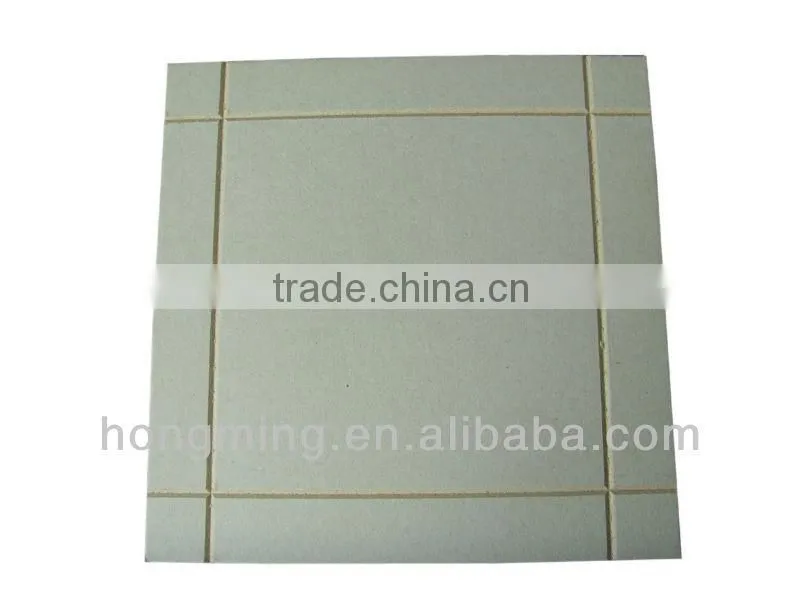

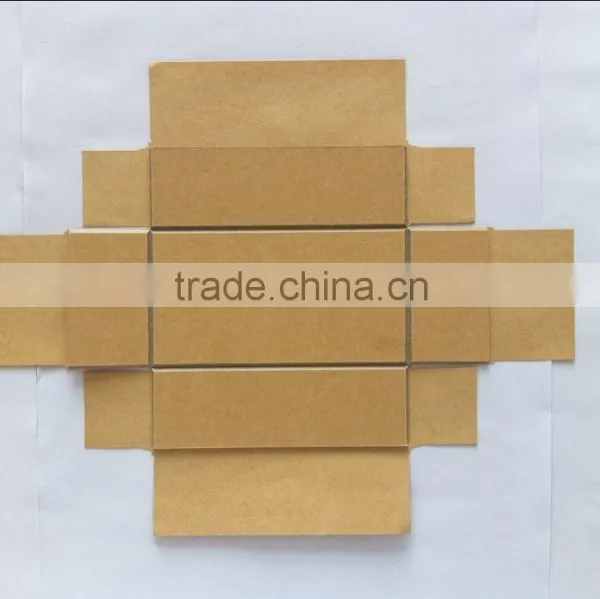

HM-PX1000 Manual Grooving Machine (Manually Feeding) 's outputs:

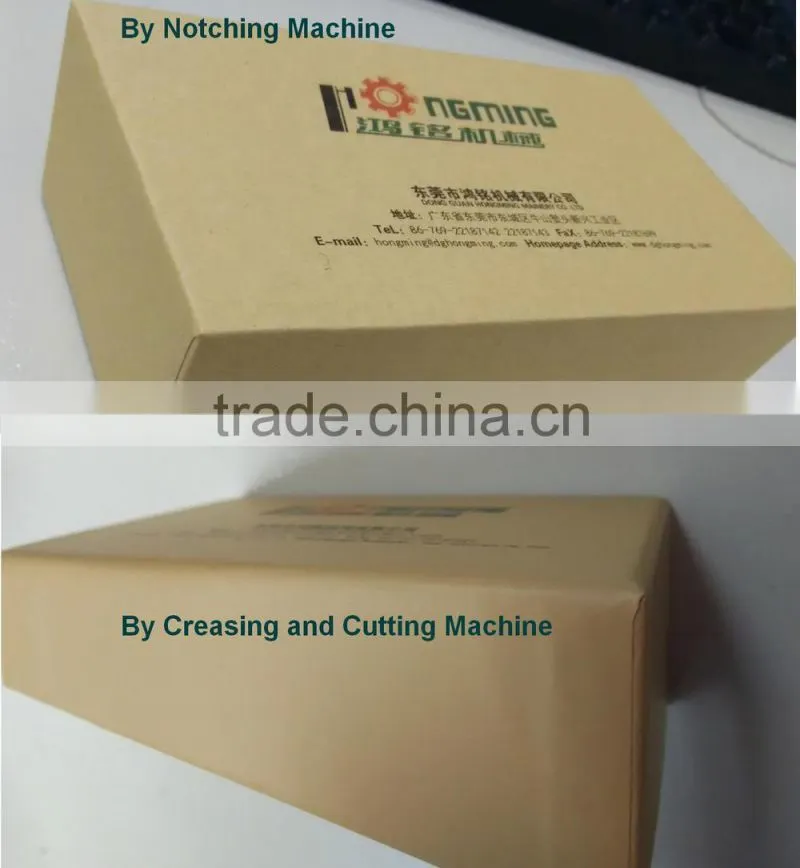

HM-PX1000 Manual Grooving Machine (Manually Feeding)'s differenc on final outputs:
