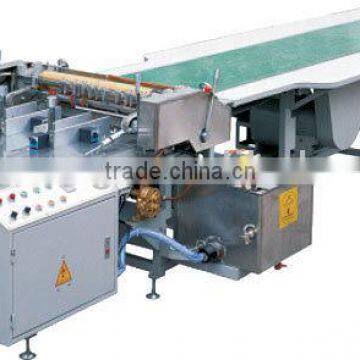

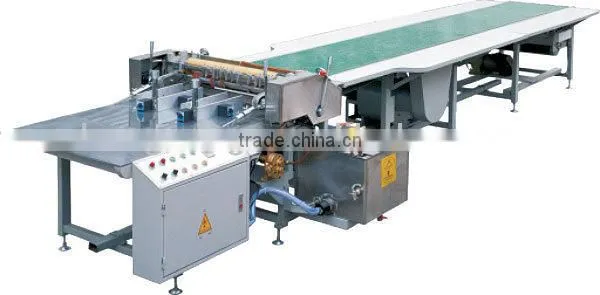

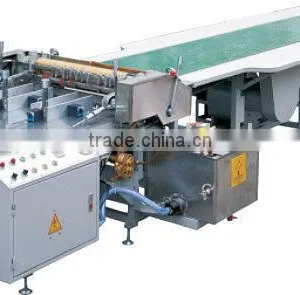

HM-650B Automatic Laminating Machine(Feeder by rubber)

Specifications

Laminating Machine is suitable for feeding and gluing the paper which is for making book cover, rigid box, set up box, etc.

HM-650B Automatic Laminating Machine(Feeder by rubber)



HM-650B Automatic Laminating Machine(Feeder by rubber)  is a transferring type of paper upper-side gluing equipment, combined with many-year experience on packing machinery, designed along with the needs of the clients.



HM-650B Automatic Laminating Machine(Feeder by rubber)  is an ideal equipment for medium size printing packing plants to make flow line production.



HM-650B Automatic Laminating Machine(Feeder by rubber) adopts heat fused adhesive powder to avoid traditional white emulsion from shrinking and mildewing.



Adjustable gluing drum to make the glue spread out on the surface of the paper.



The conveyor has a draft fan and keep the paper transfer from deviation.



Temperature control system in glue tank can guarantee the viscosity of the glue.



Time controller for pre-heating and to enhance production profits.



Circular cleaning system makes the machine cleaned within 2 minutes. So it is very convenient.



Speed adjustable according to skillful degree of the production worker.



It is characterized by rational structure, stable performance, convenient operation, easy replacement, and low labor intensity.





Ps:
1, Standard 5m working table; 7m, 9m working table can be customized per to the customer's need.
2, Remodel for white glue.



HM-650B Automatic Laminating Machine(Feeder by rubber) Technical Parameters:



Model	HM-650B
Case Size	W80-600mm
Sheet Thickness	80-200g
Cardboard Thickness	1-4mm
Production Speed	7-40pcs/min
Voltage	380V
Power	6.6KW
Overall Dimension	6350x1650x1100mm
Net Weight	790kg



HM-650B Automatic Laminating Machine(Feeder by rubber) 's materials: hot glue and cold glue

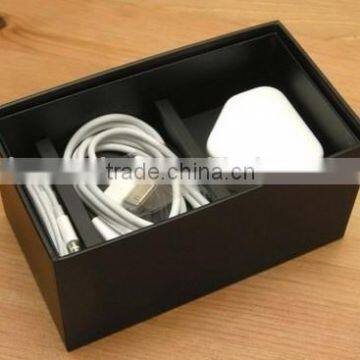

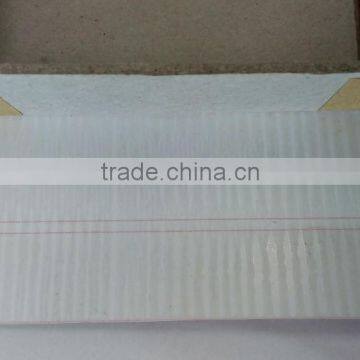

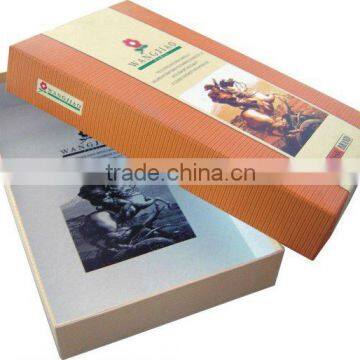

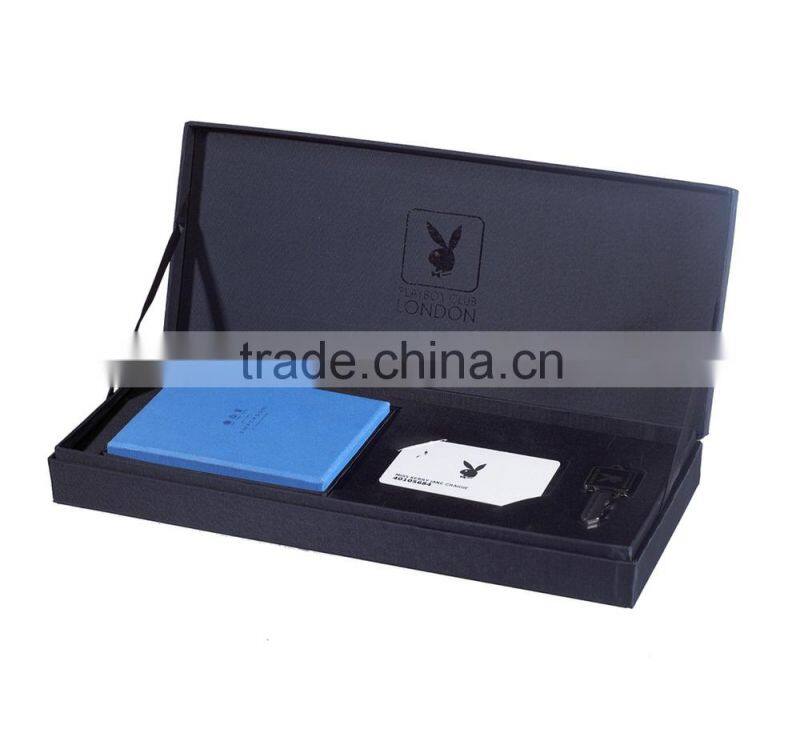

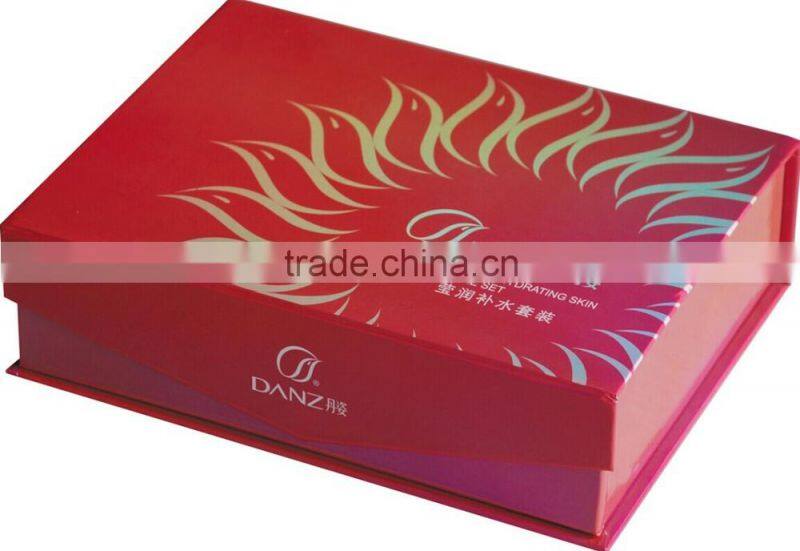

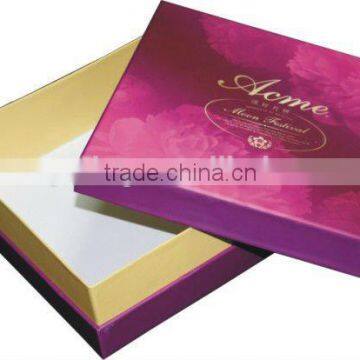

HM-650B Automatic Laminating Machine(Feeder by rubber) products:
