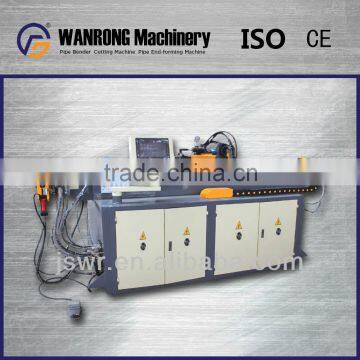

SB 25 CNC tube bending machine

Specifications

+Servo Motor:MITSUBISHI
+Electric:Schneider
+CNC System:IPC MITSUBISHI
+Hydraulic :Yuken
+Automatic SB 25CNC Tube Bender

1. Automatic recognition of power in machine and work piece, the processing is both quick and good
2. Slow returning core, boosted by barrow, imporving the apprearance of the angle.
3. The whole operation is in the computer, simple, quick and correct
4. Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
5. Rebound test: comparison test on the features of lots of pipe materials
6. Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
7. Automatic drawing of the graphics of dies-clear help to develop new products
8. Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
9. Passwords, keys, working hours/ recordings of quantities, are applied to management of production





Specification/Model		SB-25CNC	Remark
Max bending capability		Φ18mmx1.5mm	1. The Minimum bending diameter of CNC bending machine based on the pipe diameter 2.The Max bending diameter of CNC bending machine can accordingto the customers requirement 3.The Max length of mandrel of CNC bending machine can according to customers requirement
Max bending radius		R180mm
Min bending radius		1.5 times OD
Max bending angle		190°
Max feeding length		2500mm
feeding method		direct feeding clamping feeding
Working speed	Bending speed	Max 85°/s
	Rotary speed	Max 200°/s
	Feeding speed	Max 1000mm/s
Working accuracy	Bending accuracy	±0.1°
	Rotary accuracy	±0.1°
	Feeding accuracy	±0.1mm
Information inputting method		1. axisX . Y. Z ing valueY. B. C
Bending method		1.Servo bending : 5kw(more than 3 axis 2. Hydraulic bending
Power of rotary servo motor		0.4kw
Power of feeding servo motor		0.75kw
Max bending groups		1. 12  2. 33
Max storing components		1. 330 2. 125
Motor power		3.0kw
Oil pressure		12 Mpa
Size		3850 x 850 x 1150mm
Weight		1500kg
