Bending Machine

Name: Bending Machine
Brand: guanfeng
SKU: 129573535
Availability: InStock

US$ 15,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

guanfeng

Zhangjiagang City Wanrong Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name guanfeng

Model Number SB-89-NC

Machine Type Beading Machine

Raw Material Pipe

Material / Metal Processed Stainless Steel

Power Hydraulic

Automation Other, semi-automation

Certification ISO 9001:2000

After-sales Service Provided Overseas third-party support available

Specifications

Specifications
-Electric:Schneider
-System:MITSUBISHI
-Hydraulic Parts:Yuken Japan

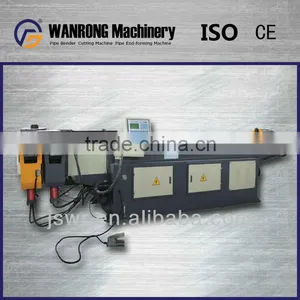

Mandril Pipe Bending Machine

Product Description

SB 89NC Tube Bending Machine

1: Bend-arm (C-axis) by hydraulic;
2: Clamp die by hydraulic;
3: Pressure die by hydraulic;
4: Manual,semi-automatic and fully automatic are available;
5: Multiple protective devices secure the safety of users;
6: Mobile pedal switch and side emergency stop switch provide more protection;
7: The cooling system makes the machine running steady;
8: The quick tooling change system is favor of production;
9: Build-in battery enables to keep inside data for 3 years memory after turned off machine;
10: Code protection function guard the program and process data.
SPECIFICATIONS

Items	Unit	Data
Max. Capacity OD x WT (Mild Steel)	mm	φ88.9x4.0
Min. Bending Radius	mm	38
Max. Bending Radius	mm	450
Max. Bending Angle	°	190
Bending Speed (Max.)	°/s	25
Bending accuracy	°	±0.15
Standard Length Over Mandrel	mm	3500
Main Control System	--	NC
Hydraulic Control System	--	Solenoid Valve
Motor Power	KW	11
Hydraulic Pressure Power	Mpa	14
Size	mm	5200x1250x1400
Weight	KG	4500

The Min./Max. bending radius could be made to order according the customer's special requirement.
The length over mandrel could be made to order according the customer's special requirement.
