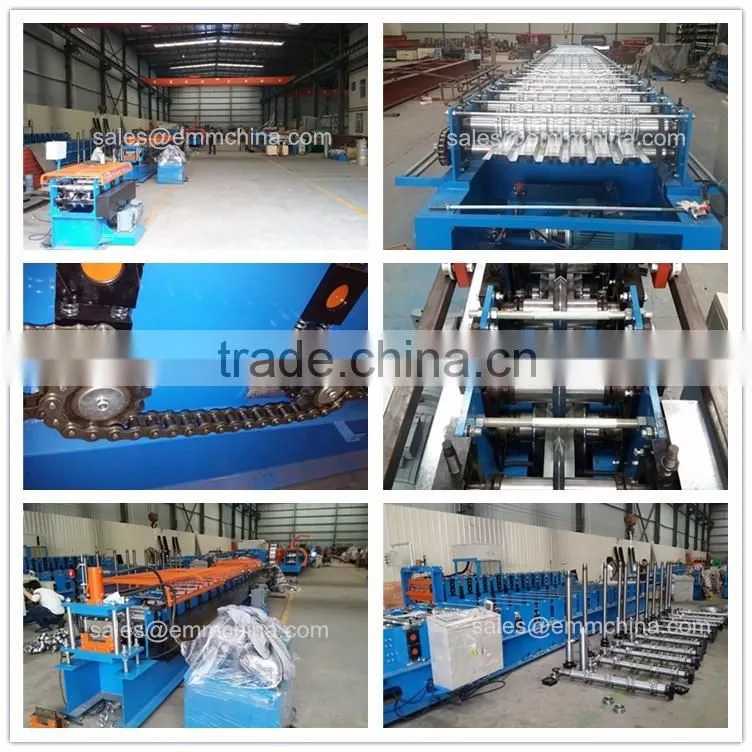

DGF-41/40 metal forming machine
The wall panel roll forming machine uses a metal coil for raw materials, unwinding, continuous forming, cutting to length automatically into a specific shape file. It adopts PLC control, AC frequency control technology, with double forming, not only save space, also achieve continuous automated production, is cold-formed steel and metal processing industries ideal production equipment.
No |
Item |
Parameter |
Remark |
|
|
1
|
Material |
Type |
cold-rolled strip |
|
Thickness(mm) |
1.5-2.0 |
|
||
Yield strength (Mpa) |
235-345 |
|
||
Width (mm) |
As the detail drawing |
|
||
2 |
Rolling speed(m/min) |
About 20-25 |
not include the cut off time |
|
3 |
Forming machine main power (KW) |
11kw |
For reference |
|
4 |
hydraulic pressure station (KW) |
5.5 |
For reference |
|
5 |
Uncoil motor power(kw) |
3kw |
For reference |
|
7 |
Main power |
39.5 |
For reference |
|
8 |
Power |
AC220V,60Hz,3phase |
|
|
9 |
Machine size |
About 8.×1.6×1.3 |
For reference |
|
Technological process
Electrical uncoil – guid feed- roll forming – cut to length – finish product
1. uncoil system
Loading : 3 T
Coil inside diameter : φ508mm
Coil width : 400mm
Coil outside diameter: φ1350mm
Feeding motor : 3Kw
DGF-41/40 metal forming machine
