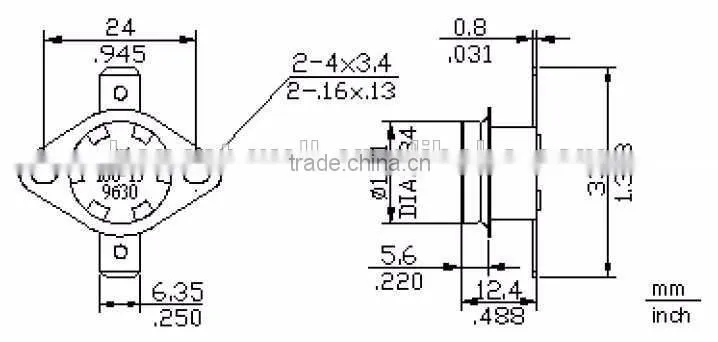

T24-4A-BF2 Bimetallic Snap Action Thermostat
US$ 0.2 - 0.8
MOQ: 1000 Units
Key Specifications
Get Latest Price
Brand Name:
HW
Model Number:
4A-BF2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Keelung
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Overheating Protection Bimetal ThermostatUS$ 0.2 - 1MOQ: 1000 Units -
Copper Hex Type 16A 250V ThermostatUS$ 0.25 - 0.7MOQ: 1000 Pieces
-
3/4" KSD Dual Function Thermostat (NC+Manual Reset)US$ 1.15 - 1.25MOQ: 1000 Pieces
-
Automotive Bimetallic Thermostat SwitchUS$ 0.8 - 0.8MOQ: 1000 Pieces
-
Automotive Thermal Switch Thermostat T23US$ 0.5 - 0.5MOQ: 1000 Pieces
Brand Name
HW
Model Number
4A-BF2
Bimetallic Snap Action Thermostat
Overview:
FIXED BRACKET : B Cap
Housing: PPS or Phenolic
Operating Temperature: 0 ~ 180C
(1) CONTACT TYPE : Contact Opens When Temperature Rises To Set Point (Normally Closed)
(2) FIXED BRACKET : B Cap
(3) TERMINAL ORIENTATION : Horizontal
(4) TERMINAL SIZE: Amp#250 TAB ( 6.35mm x 0.8t mm )
Specification:
Reset Type |
Automatic or Manual |
Contact Type on Rise |
NC |
Electrical Rating |
16A/250VAC
15A/125VAC
10A/250VAC
|
Calibration Method |
1°C/min, Air circulation furnace |
|
Operating Temp. *
|
40°C~ 200°C (ENEC)
40°C~ 205°C (UL/CUL)
|
Temp. Tolerance |
±3K/ ±5K |
Heat Durability |
180°C * 2Hr Max. |
Action Temprature |
70±3°C |
Reset Temprature |
58±4°C |
Circuit Resistance |
50 MΩ Max. |
Insulation Resistance |
100MΩ at DC 500V |
Dielectric Strength |
AC 1000V/min or AC 1800/sec (Leak Current 0.5mA) |
Operating Life |
100,000 Cycles (15A/125VAC, 10A/ 250VAC)
10,000 Cycles (16A/250VAC)
|
* Action temp. and reset temp. can be set up depend on customer’s request
