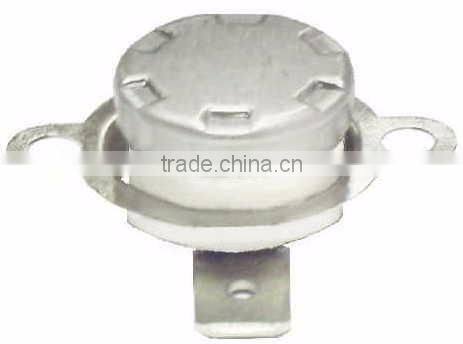

HW Ceramic Thermostat Switch
US$ 0.25 - 1
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Brand Name:
HW
Model Number:
H2-33A-SF2
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Brass Hex Stud Bimetal Disc ThermostatUS$ 0.4 - 0.9MOQ: 1000 Pieces -
H2-33M-CF2 Manual Reset Ceramic Bimetallic ThermostatUS$ 0.3 - 0.8MOQ: 2000 Pieces
-
Adjustable KST ThermostatNegotiableMOQ: 1000 Pieces
-
4 Posts Home Appliance Normally Closed Bimetal ThermostatUS$ 0.25 - 0.5MOQ: 1000 Pieces
-
Manual Reset Button 10A Bimetallic ThermostatUS$ 0.25 - 1MOQ: 1000 Pieces
Brand Name
HW
Model Number
H2-33A-SF2
HW Ceramic Thermostat Switch
Overview:
1) CONTACT TYPE : Contact Opens When Temperature Rises To Set Point (Normally Closed)
(2) LOOSE BRACKET : S TYPE
(3) TERMINAL ORIENTATION : Horizontal
(4) TERMINAL SIZE: Amp#250 TAB ( 6.35mm x 0.8t mm )
(5) Housing: Ceramic (great material to endure high temperature environment)
Specification:
| Electrical Rating | 15A/125V AC 10A/250V AC |
| Operation Temp | 16A/125V 0℃~230℃ ; 16A/250V 45℃~210℃ |
| Differential | 10K~80K(Standard15K) |
| Calibration Method | 1℃/min. Air circulation furnace |
| Temp. Tolerance | ±3K / ±5K / 8K |
| Heat Durability | 220℃ MAX. |
| Circuit Resistance | 50 mΩ MAX. |
| Insulation Resistance | 100MΩ min. at DC 500V |
| Dielectric Strength | AC1000V for One Minute or AC 1800V for One Second(Leak current:0.5mA) |
| Operation life | 100,000 Cycles(15A 125V AC / 10A 250V AC) |
