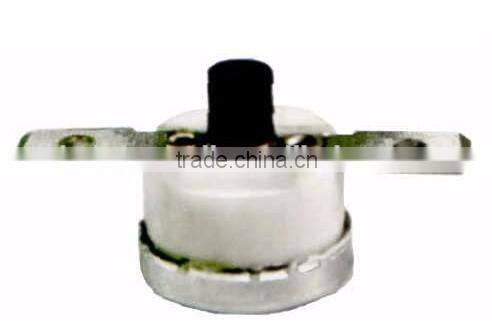

H2-33M-CF2 Manual Reset Ceramic Bimetallic Thermostat

H2-33M-CF2 Manual Reset Ceramic Bimetallic Thermostat thumbnail-1
H2-33M-CF2 Manual Reset Ceramic Bimetallic Thermostat photo-1
US$ 0.3 - 0.8 MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Brand Name:
HW, LC
Model Number:
H2-33M-CF2
Contact Supplier Request Quote Chat Now
Honest-well Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HW, LC
Model Number H2-33M-CF2

H2-33M-CF2 Manual Reset Ceramic Bimetallic Thermostat





Overview:

(1) CONTACT TYPE : Contact Opens When Temperature Rises To Set Point (Manual Reset Button)

(2) CAP TYPE : C Cap

(3) TERMINAL ORIENTATION : Horizontal

(4) TERMINAL SIZE: Amp#250 TAB ( 6.35mm x 0.8t mm

(5) Manual Reset type.

(6) MAX ACTION TEMPERATURE: 230°c



Specification:

Electrical Rating 15A/125V AC 10A/250V AC
Operation Temp 16A/125V   45℃~180℃ ; 16A/250V  45℃~180℃
Differential 10K~80K(Standard15K)
Calibration Method 1℃/min. Air circulation furnace
Temp. Tolerance ±3K / ±5K / ±8K
Heat Durability 220℃ MAX.
Circuit Resistance 50 mΩ MAX.
Insulation Resistance 100MΩ min. at DC 500V
Dielectric Strength AC1000V for One Minute or AC 1800V for One Second(Leak current:0.5mA)
Operation life 6,000 Cycles(15A 125V AC / 10A 250V AC)





 H2-33M-CF2 Manual Reset Ceramic Bimetallic Thermostat
