Help CenterMRA Series Mini Rocker Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
LC
Model Number:
MRA
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Taiwan, China
Brand Name
LC
Model Number
MRA
Max. Current
3A
Max. Voltage
250V
Mechanical Life
over 30000 cycles

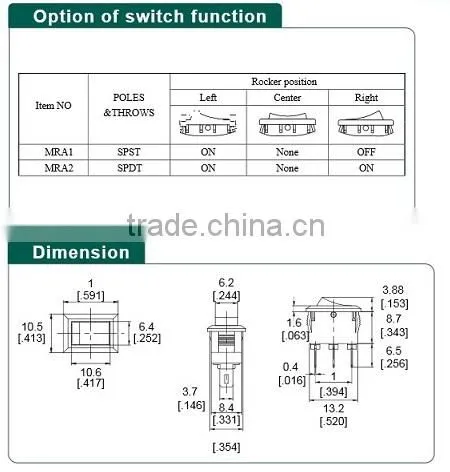

MRA Series Mini Rocker Switch
Spec:
| Electrical Rating | 3A 250VAC(UL,VDE) |
| Mechanical life | Over 30000 cycles |
| Electrical life | Over 10000 cycles |
| Contact resistance | <20mΩ |
| Insulation resistance | >1000MΩ |
| High voltage resistance | >1500V 1 min |
| Ambient temperature | Terminal side -20 to +85°C |
| Actuating side | -20 to +55°C |
| Storage temperature | -30 to +80°C Max |
| Atmospheric humidity | Max.85% |
| Actuating force | 4 to 8N(depends on different switch function) |
| Flammability | UL94 V-2 |
| Temperature rise at the terminal | Max 30°C (UL1054) |
| Solder ability of terminal | Max 350°C,3s |
Material:
| Housing | PA66 |
| Rocker | PA66 |
| Contact | Silver Alloy |
| Terminal | Brass Silver Plated |
| Spring | SWP |
| Movable Arm | Brass Silver Plated |
