Help CenterSS12F77 1P2T Vertical Type Slide Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
SS12F77
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SS12F29 Electical Vertical Type Slide SwitchUS$ 0.2 - 0.5MOQ: 1000 Pieces -
SS12F16 1P2T Vertical Type Slide SwitchUS$ 0.1 - 0.3MOQ: 1000 Pieces
-
SS12I01 1P2T Vertical Type Slide SwitchNegotiableMOQ: 1000 Pieces
-
1P3T Horizontal Type Slide SwitchNegotiableMOQ: 1000 Pieces
-
Electrical Horizontal Type Slide SwitchUS$ 0.1 - 0.5MOQ: 1000 Pieces
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
SS12F77
Max. Current
0.5A
Max. Voltage
50VDC
Mechanical Life
10,000 cycles

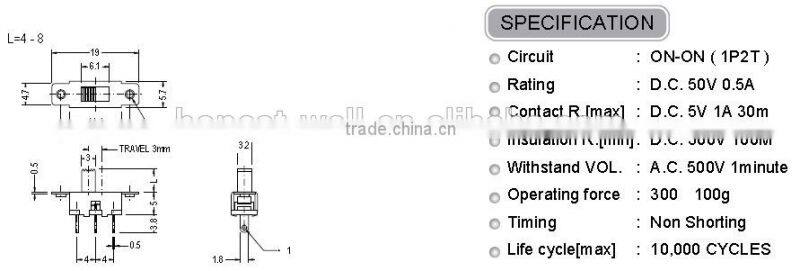

SS12F77 Slide Switch
Overview:
(1) Vertical type slide
(2) Available in various circuit such as 1P2T
Specification:
| Circuit | ON-ON (1P2T) |
| Rating | 0.5A 50VDC |
| Contact R (max) | 5VDC 1A 30mΩ |
| Insulation R. (min) | 500VDC 100MΩ |
| Withstand VOL. | 500VAC 1 min. |
| Operating Force | 300±100g |
| Timing | Non-Shorting |
| Life Cycle | 10,000 cycles |
