Place of Origin
Taiwan, China
Brand Name
HW
Model Number
3M
Max. Current
5A
Max. Voltage
250VAC
Mechanical Life
40,000 cycles
3M Series Rocker Switch
Features
Multi-pole and multi-position
Wide variety of actuator and termination options
Epoxy sealed terminals prevent contamination during soldering
Applications: Telecommunication, Instrumentation, Medical equipmen
Specification:
| Mechanical Life | 40,000 make-and-break cycles at full load |
| Contact Resistance | 10mΩ max. initial @ 2-4VDC 100mA for both silver and gold plated contacts |
| Insulation Resistance | 1,000MΩ min. |
| Dielectric Strength | 1,000 V RMS @ sea level |
| Operating Temperature | -30°C ~ 85°C |

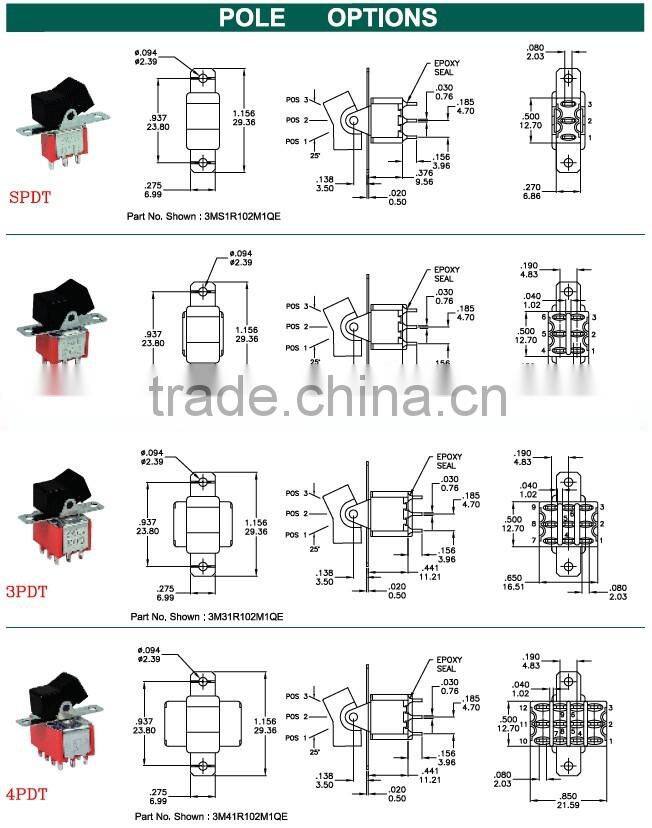

| Circuit | SPDT,DPDT,3PDT,4PDT |
Materials:
Case: Diallyl phthalate (DAP) (UL94V-0)
Actuator: Nylon, Black standard
Busing: Brass Nickel plated
Housing: Stainless Steel
Switch Support: Brass Tin plated
Terminal/Contact: Brass with Silver or Gold Plated
