Help CenterP13 Series Pushbutton Switch
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
P13
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SS22G08 2P2T Vertical Type Slide SwitchUS$ 0.05 - 0.1MOQ: 2000 Pieces -
3M Series Rocker SwitchNegotiableMOQ: 1000 Pieces
-
SK12D02 1P2T Horizontal Type Slide SwitchUS$ 0.05 - 0.1MOQ: 2000 Pieces
-
SS22F03 Vertical Type 2P2T Slide SwitchUS$ 0.05 - 0.1MOQ: 2000 Pieces
-
LC83 Series Pushbutton SwitchNegotiableMOQ: 1000 Pieces
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
P13
Size
11.2 X 12.3 mm
Mechanical Life
30,000

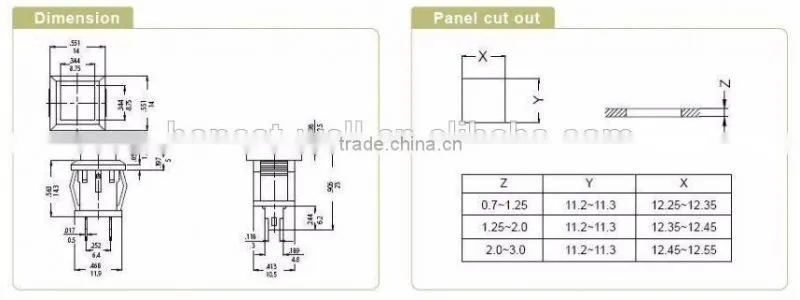

P13 Series Pushbutton Switch
Specification:
-
Electrical Rating:
- 1A 250VAC (UL)
- 1A 250VAC/3A 125VAC (VDE)
- Mechanical Life: Over 30,000 cycles
- Electrical Life: 10,000 cycles
- Contact Resistance: < 20mΩ
- Insulation Resistance: > 1,000MΩ
- High Voltage Resistance: > 1,500V 1 min
-
Ambient Temperature:
- Terminal Side: -20°C ~ 85°C
- Actuating Side: -20°C ~ 55°C
- Storage Temperature: -30°C ~ 80°C max.
- Atmospheric Humidity: max 85%
- Actuating Force: 3~6N
- Flammability: 94V-2
- Temperature Rise at Terminal: max 30°C (UL1054)
- Solder Ability of Terminal: max 350°C, 3s
Materials:
- Housing: PA66
- Rocker: PA66
- Contact: Silver Alloy
- Terminal: Copper or Brass Silver Plated
- Spring: SWP, SWB, SUS301
- Movable Arm: Copper Silver Plated
