Home > Products > Silver Contact > Silver Electrical Contact Rivet
Silver Electrical Contact Rivet
- Taiwan
You May Like
Product Details
| Place of Origin | Taiwan, China | Brand Name | HW | |
| Model Number | Ag068 |
Product Description

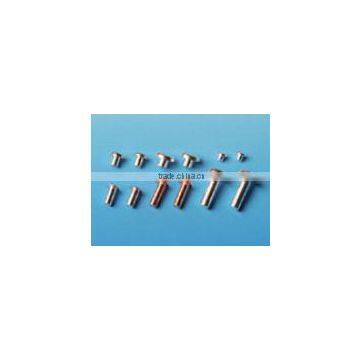

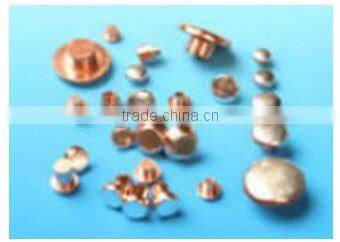

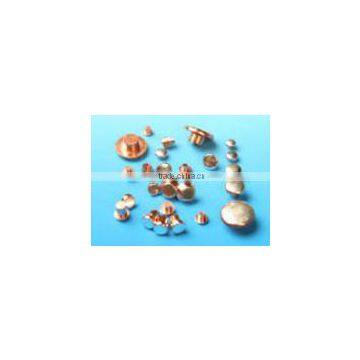

Silver Electrical Contact Rivets
Silver Contacts can be used as fastener and conductor in switches, breakers, magnetic contactors and relays. Also commonly used in automobile industry and various household appliance industry.
Our silver contacts provide low and stable contact resistance are excellent current and thermal conductors.
We provide contacts made of AgCdO(Silver Cadmium Oxide), AgSnO2(Silver Tin Oxide), AgWC(Silver Tungsten Carbide), and AgC(Silver Graphite).
Specifications:
| Head diameter | 2mm-10mm |
| Head thickness | 0.4-2mm |
| Silver thickness | 0.15 solid |
| Tail diameter | 1-4.5mm |
| Tail length | 0.3-7mm |
| Contact type | Ag, Cu |
Customization is available upon requests.
Materials:
1.Face material:AgCu,AgCd,AgCdO,AgNi,AgSnO2
2.Base material: Ag, Cu
